Product Overview
The tvONE HD-One LX500 Kit (2211113-02) is a complete HDMI 1.4 extension system that transmits video, audio, IR, and RS232 control signals up to 500 feet (150 meters) over a single Cat5e or Cat6 cable. Designed for AV integrators and rack engineers, this kit includes both the transmitter (TX) and receiver (RX) units, providing everything needed for a full point-to-point HDMI extension deployment. The LX500 is part of tvONE's Magenta-branded HD-One product line, engineered for reliable performance in professional AV installations.
Product Description

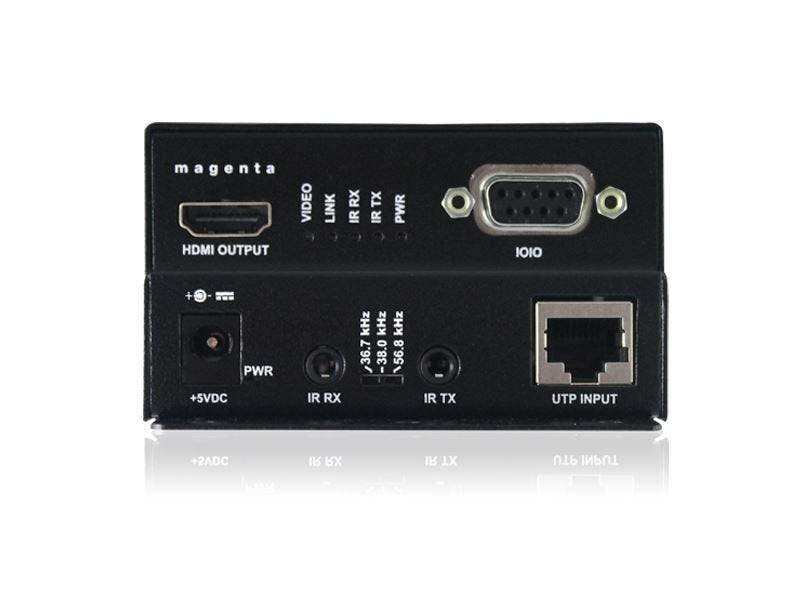

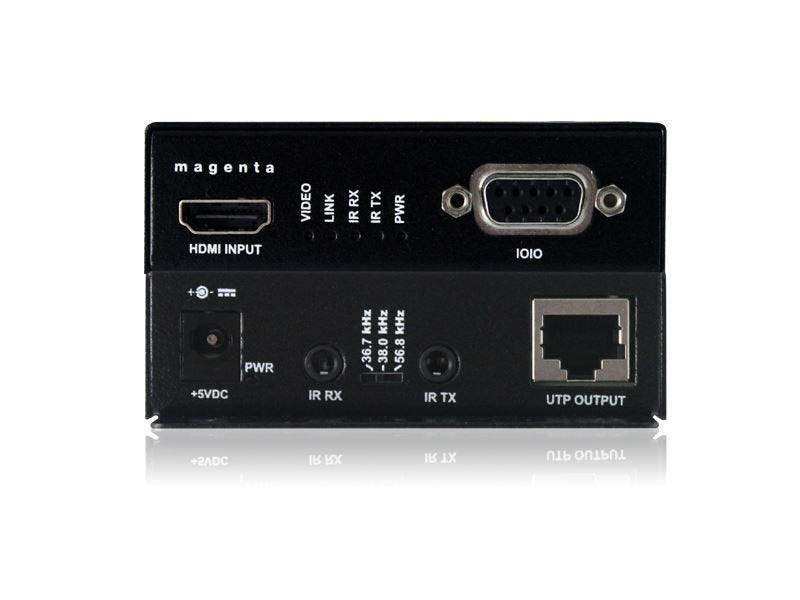

The HD-One LX500 Kit extends HDMI 1.4 signals — including deep color and 3D — over Cat5e/6 infrastructure to a maximum distance of 500 feet (150 meters). The LX designation indicates full control signal pass-through: bidirectional IR and RS232 are carried alongside the HDMI signal, enabling remote control of source devices from the display end. This makes the LX500 Kit ideal for installations where the AV source and display are not in the same room and source-device control is required. The transmitter accepts an HDMI input from the source device, while the receiver outputs HDMI to the display. Both units are compact and designed for integration into AV racks or mounting behind displays. Power is supplied via an included external power supply. The system supports resolutions up to 1080p Full HD and is backward compatible with lower HDMI 1.4 resolutions. The Cat5e/6 connection reduces cabling cost and complexity versus long HDMI cable runs. All HD-One extenders are tested for interoperability within the tvONE/Magenta ecosystem.
Key Features
- 500ft/150m HDMI Extension — Extends HDMI 1.4 video and audio up to 500 feet over a single Cat5e or Cat6 cable.
- IR Pass-Through — Bidirectional IR channel allows remote control of the source device from the display location.
- RS232 Control Pass-Through — Serial RS232 control signals are carried alongside the HDMI signal for full system integration.
- Complete Kit — Includes both TX and RX units; no additional hardware required for a full point-to-point extension link.
- HDMI 1.4 Support — Supports deep color, 3D, and resolutions up to 1080p Full HD.
- Cat5e/6 Infrastructure — Uses existing structured cabling, reducing installation cost and complexity.
- Compact Form Factor — Both transmitter and receiver are small enough to mount behind displays or integrate into AV racks.
Typical Applications
- Conference rooms with AV rack-mounted sources and wall-mounted displays
- Training rooms requiring source control from the display location
- Digital signage installations with remote source equipment
- Auditoriums and lecture halls with long cable runs
- Control rooms with centralized AV distribution
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 2211113-02 |
| Signal Standard | HDMI 1.4 |
| Max Resolution | 1080p Full HD |
| Max Extension Distance | 500 ft / 150 m |
| Cable Type | Cat5e / Cat6 |
| Control Signals | Bidirectional IR, RS232 |

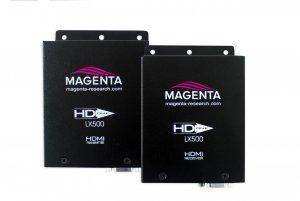

| Kit Contents | 1x Transmitter (TX), 1x Receiver (RX) |
| Product Line | tvONE HD-One (Magenta) |
Frequently Asked Questions
Does this kit include both transmitter and receiver?
Yes. The 2211113-02 is a complete kit that includes one HD-One LX500 Transmitter and one HD-One LX500 Receiver. If you need only the TX or RX unit as a replacement or addition, see the individual SKUs 2211123-01 (TX) and 2211124-01 (RX).
What cable category is required for 500ft extension?
Cat5e or Cat6 is required. Cat6 is recommended for maximum distance and signal integrity, especially in electrically noisy environments.
Can IR remote commands be sent from the display end back to the source device?
Yes. The LX500 supports bidirectional IR, so an IR remote at the receiver/display end will control the source device at the transmitter end.
Is the LX500 compatible with 4K sources?
No. The HD-One LX500 supports HDMI 1.4 up to 1080p Full HD. For 4K extension requirements, please contact Creation Networks for alternative solutions.
