Product Overview

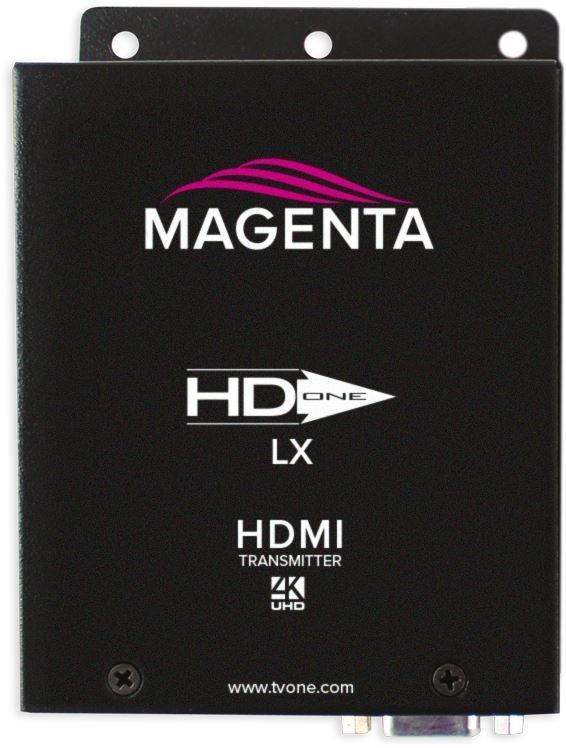

The tvONE HD-One LX Kit (2211078-02) is a complete HDMI 1.4 extension system that transmits video, audio, IR, and RS232 control signals up to 328 feet (100 meters) over a single Cat5e or Cat6 cable. The LX designation indicates full control signal pass-through, enabling remote control of source devices from the display location. This kit includes both the transmitter (TX) and receiver (RX) units and is designed for professional AV installations requiring reliable HDMI extension with integrated control.
Product Description

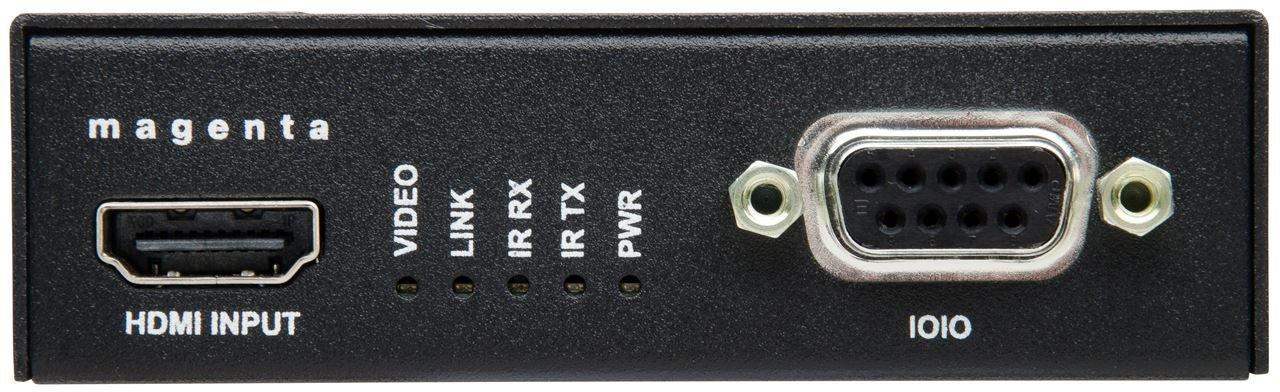

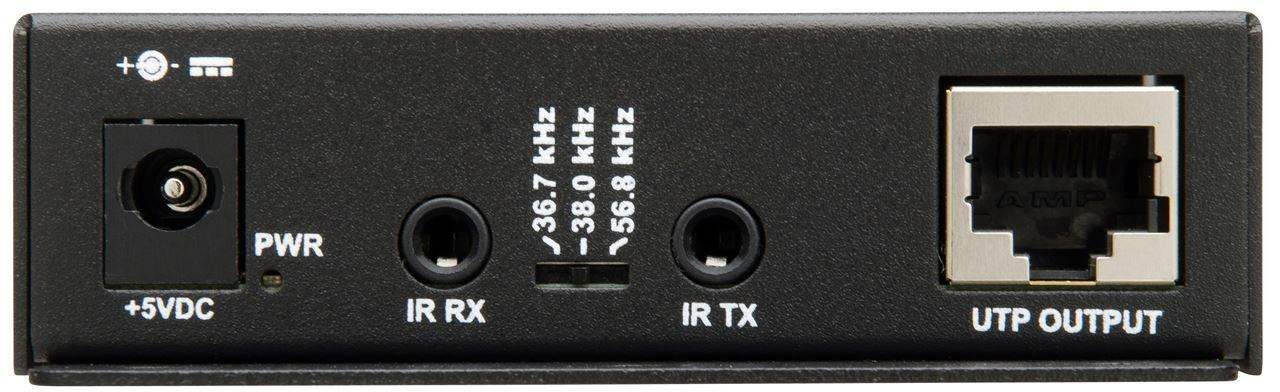

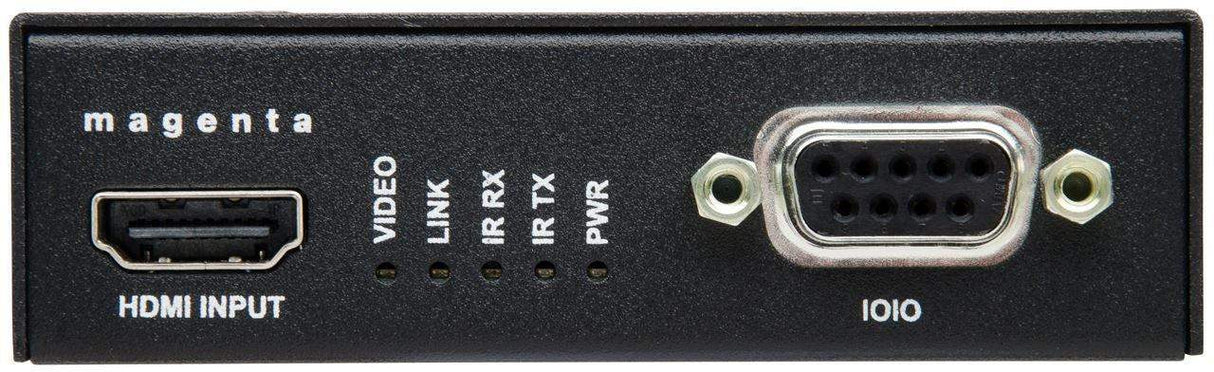

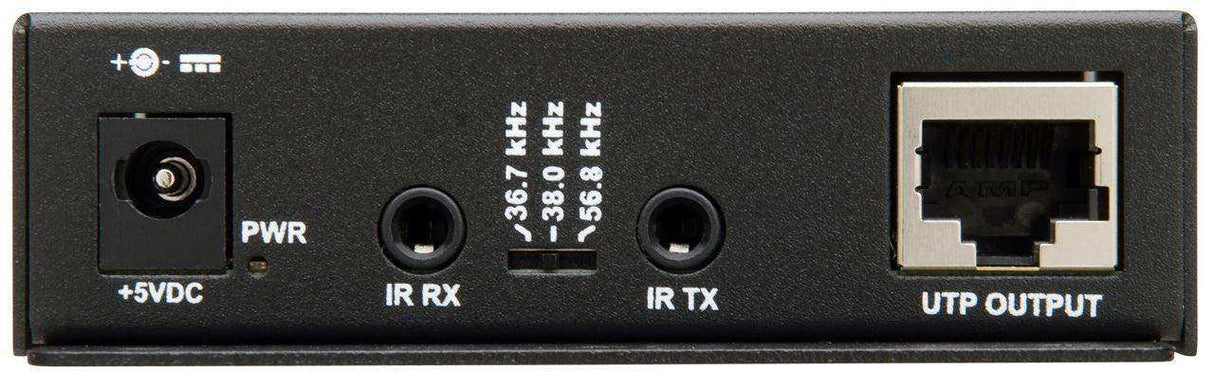

The HD-One LX Kit extends HDMI 1.4 signals — including deep color and 3D — over Cat5e/6 infrastructure to a maximum distance of 328 feet (100 meters). In addition to HDMI video and embedded audio, the LX model passes bidirectional IR and RS232 control signals alongside the HDMI data, allowing full remote control of the source device from the receiver/display end. The transmitter connects to the HDMI source, and the receiver outputs HDMI to the display at the remote location. Both units are compact and straightforward to install in AV racks or behind displays. The system supports resolutions up to 1080p Full HD. For installations requiring distances beyond 328ft, the HD-One LX500 Kit (2211113-02) extends the same capabilities to 500 feet. The HD-One LX Kit is part of tvONE’s Magenta-branded product line and is built for dependable, long-term operation in commercial AV environments.
Key Features
- 328ft/100m HDMI Extension — Extends HDMI 1.4 video and audio up to 328 feet over Cat5e or Cat6 cable.
- IR Pass-Through — Bidirectional IR allows remote control of the source device from the display location.
- RS232 Control Pass-Through — Serial RS232 control is carried alongside the HDMI signal for integrated AV control systems.
- Complete Kit — Includes both TX and RX units for a ready-to-deploy extension link.
- HDMI 1.4 Support — Supports deep color, 3D, and resolutions up to 1080p Full HD.
- Cat5e/6 Infrastructure — Uses standard structured cabling to reduce cost and installation complexity.
Typical Applications
- Conference rooms requiring source device control from the display location
- Training rooms with rack-mounted sources and remote displays
- Auditoriums and lecture halls with medium-length cable runs
- Corporate AV systems with centralized equipment rooms
- Digital signage requiring control signal pass-through
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 2211078-02 |
| Signal Standard | HDMI 1.4 |
| Max Resolution | 1080p Full HD |
| Max Extension Distance | 328 ft / 100 m |
| Cable Type | Cat5e / Cat6 |
| Control Signals | Bidirectional IR, RS232 |
| Kit Contents | 1x Transmitter (TX), 1x Receiver (RX) |
| Product Line | tvONE HD-One (Magenta) |
Frequently Asked Questions
What is the difference between the LX Kit and the LX500 Kit?
Both carry HDMI video, audio, bidirectional IR, and RS232 signals. The LX Kit (2211078-02) supports distances up to 328ft/100m. The LX500 Kit (2211113-02) extends that range to 500ft/150m and is priced higher accordingly.
Does this kit include both TX and RX units?
Yes. The 2211078-02 is a complete kit including one HD-One LX Transmitter and one HD-One LX Receiver. Individual TX (2211095-02) and RX (2211096-02) units are available separately.
Can RS232 be used for Crestron or AMX control?
Yes. The RS232 pass-through is compatible with standard serial control systems including Crestron, AMX, and similar control processors, provided the source device supports RS232 commands.
