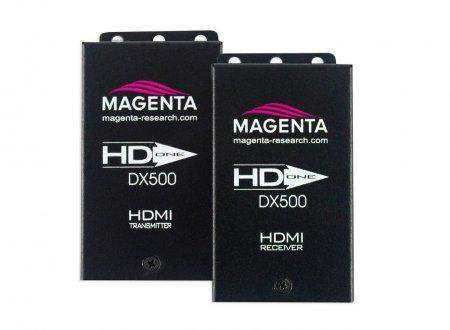

tvONE 2211121-01 HD-One DX500 Transmitter – HDMI Video and Audio 500ft
Product Overview
The tvONE HD-One DX500 Transmitter (2211121-01) is the transmit-side unit of the HD-One DX500 extension system, sending HDMI 1.4 video and embedded audio over Cat5e or Cat6 cable to the DX500 Receiver at distances up to 500 feet (150 meters). This unit is sold individually and pairs with the HD-One DX500 Receiver (2211122-01). Both units are also available as a complete kit (2211114-02).
Product Description
The HD-One DX500 Transmitter accepts an HDMI 1.4 input from the source device and converts the video and audio signal for Cat5e/6 transmission to the DX500 Receiver up to 500 feet (150 meters) away. As a DX-series device, it carries video and audio only — no IR or RS232 control pass-through — making it a cost-focused choice for applications where source control at the display is not required. The compact unit is designed for installation near the source in an AV rack or equipment room. Pair with the HD-One DX500 Receiver (2211122-01) to complete the extension link. For installations requiring IR and RS232 control, the LX500 Transmitter (2211123-01) provides the same 500ft range with added control signals.
Key Features
- 500ft/150m Transmit Range — Extends HDMI 1.4 video and audio up to 500 feet over Cat5e or Cat6 cable.
- Video and Audio Only — DX model carries HDMI video and audio; no IR or RS232 pass-through.
- Individual Unit — Sold as the transmitter only; pairs with the HD-One DX500 Receiver (2211122-01).
- HDMI 1.4 Input — Supports deep color and resolutions up to 1080p Full HD.
- Cat5e/6 Output — Single cable carries video and audio to the receiver unit.
Typical Applications
- Replacement transmitter for existing HD-One DX500 installations
- Digital signage systems with centralized media players and long cable runs
- Custom AV extension builds requiring individual TX units
- Video monitoring and display extension over existing Cat5e/6 infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 2211121-01 |
| Unit Type | Transmitter (TX) |
| Signal Standard | HDMI 1.4 |
| Max Extension Distance | 500 ft / 150 m (with DX500 RX) |
| Cable Type | Cat5e / Cat6 |
| Control Signals | None (video and audio only) |
| Paired Receiver | HD-One DX500 Receiver (2211122-01) |
| Kit Version | HD-One DX500 Kit (2211114-02) |
Frequently Asked Questions
What receiver does this transmitter pair with?
The 2211121-01 pairs with the HD-One DX500 Receiver (2211122-01). Both units are included in the HD-One DX500 Kit (2211114-02) if you need a complete set.
Does this transmitter support IR or RS232 control pass-through?
No. DX-series units carry video and audio only. For IR and RS232 pass-through at 500ft, use the LX500 Transmitter (2211123-01) with the LX500 Receiver (2211124-01).
