tvONE 2211122-01 HD-One DX500 Receiver – HDMI Video and Audio 500ft
tvONE 2211122-01 HD-One DX500 Receiver – HDMI Video and Audio 500ft is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
tvONE 2211122-01 HD-One DX500 Receiver – HDMI Video and Audio 500ft
Product Overview

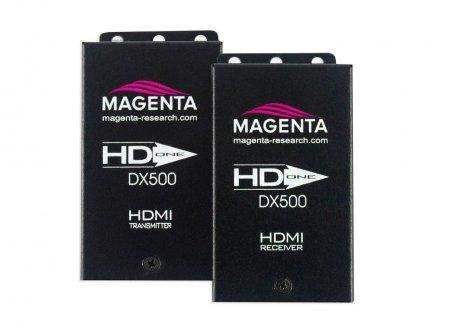

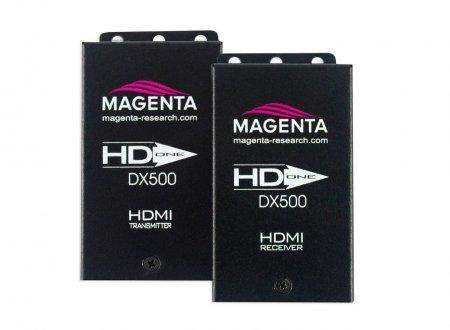

The tvONE HD-One DX500 Receiver (2211122-01) is the receive-side unit of the HD-One DX500 extension system, receiving HDMI 1.4 video and embedded audio from the DX500 Transmitter over Cat5e or Cat6 cable at distances up to 500 feet (150 meters). This unit is sold individually and pairs with the HD-One DX500 Transmitter (2211121-01). Both units are also available as a complete kit (2211114-02).
Product Description
The HD-One DX500 Receiver is installed at the display end of an HD-One DX500 extension link. It receives the HDMI video and audio signal transmitted over a single Cat5e/6 cable from the DX500 Transmitter (2211121-01) and outputs HDMI 1.4 to the connected display. As a DX-series device, it handles video and audio only, with no IR or RS232 pass-through. The compact unit is designed for installation near the display — behind a monitor, in a wall box, or in a local equipment enclosure. Maximum extension distance is 500 feet (150 meters) when paired with the DX500 Transmitter. For installations requiring IR or RS232 control at the display end, the LX500 Receiver (2211124-01) provides the same 500ft range with added control signal support.
Key Features
- 500ft/150m Receive Range — Receives HDMI 1.4 video and audio from up to 500 feet away when paired with the DX500 Transmitter.
- Video and Audio Only — DX model outputs HDMI video and audio; no IR or RS232 connections.
- Individual Unit — Sold as the receiver only; pairs with the HD-One DX500 Transmitter (2211121-01).
- HDMI 1.4 Output — Supports deep color and resolutions up to 1080p Full HD.
- Cat5e/6 Input — Accepts signal over a single Cat5e/6 cable from the transmitter.
Typical Applications
- Replacement receiver for existing HD-One DX500 installations
- Display-end unit for digital signage with centralized AV sources
- Custom AV extension builds requiring individual RX units
- Video monitoring display extension over existing Cat5e/6 infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 2211122-01 |
| Unit Type | Receiver (RX) |
| Signal Standard | HDMI 1.4 |
| Max Extension Distance | 500 ft / 150 m (with DX500 TX) |
| Cable Type | Cat5e / Cat6 |
| Control Signals | None (video and audio only) |
| Paired Transmitter | HD-One DX500 Transmitter (2211121-01) |
| Kit Version | HD-One DX500 Kit (2211114-02) |
Frequently Asked Questions
What transmitter does this receiver pair with?
The 2211122-01 pairs with the HD-One DX500 Transmitter (2211121-01). Both units are included in the HD-One DX500 Kit (2211114-02) if you need a complete set.
Can this receiver accept signal from an LX500 transmitter?
No. DX-series and LX-series units are not cross-compatible. The DX500 Receiver must be paired with the DX500 Transmitter.
