tvONE 2211114-02 HD-One DX500 Kit – HDMI Extender Video and Audio 500ft
tvONE 2211114-02 HD-One DX500 Kit – HDMI Extender Video and Audio 500ft is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
tvONE 2211114-02 HD-One DX500 Kit – HDMI Extender Video and Audio 5...
Product Overview
The tvONE HD-One DX500 Kit (2211114-02) is a complete HDMI 1.4 extension system that transmits video and audio up to 500 feet (150 meters) over a single Cat5e or Cat6 cable. The DX designation indicates video and audio extension without IR or RS232 control pass-through, providing a cost-effective solution for installations where source-device remote control is not required. This kit includes both the transmitter (TX) and receiver (RX) units, delivering everything needed for a full point-to-point deployment.
Product Description

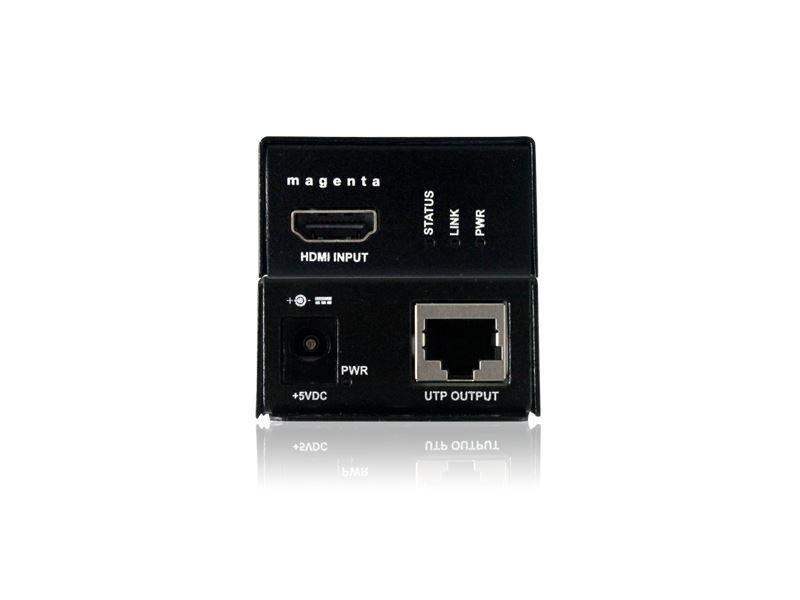

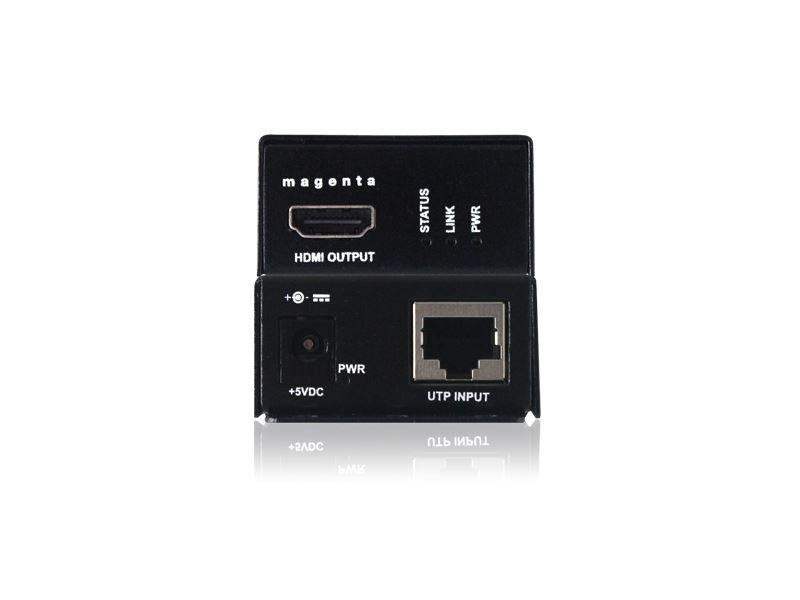

The HD-One DX500 Kit extends HDMI 1.4 video and embedded audio over Cat5e/6 infrastructure to a maximum distance of 500 feet (150 meters). The DX model carries video and audio only, without IR or RS232 control pass-through — making it a focused, cost-efficient choice for digital signage, presentation systems, and monitoring applications where source control at the display is not needed. The transmitter connects to the HDMI source, and the receiver outputs HDMI to the display. Both units are compact and straightforward to deploy. The system supports resolutions up to 1080p Full HD and is backward compatible with lower HDMI 1.4 resolutions. Using standard Cat5e/6 structured cabling eliminates the cost and handling difficulty of long HDMI cable runs. All HD-One extenders are part of tvONE’s Magenta-branded product line and are engineered for reliable, long-term performance in professional AV environments.
Key Features
- 500ft/150m HDMI Extension — Extends HDMI 1.4 video and embedded audio up to 500 feet over Cat5e or Cat6 cable.
- Video and Audio — Passes HDMI video and embedded audio; DX model does not include IR or RS232.
- Complete Kit — Includes both TX and RX units for a ready-to-deploy point-to-point extension system.
- HDMI 1.4 Support — Supports deep color and resolutions up to 1080p Full HD.
- Cat5e/6 Infrastructure — Leverages existing structured cabling to minimize installation cost.
- Compact Form Factor — Both units are small enough to mount behind displays or integrate into AV racks.
Typical Applications
- Digital signage with centralized media player racks
- Presentation systems where source control at the display is not required
- Video monitoring and surveillance display extension
- Boardrooms with simple source-to-display runs
- Retail display environments with long cable runs
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 2211114-02 |
| Signal Standard | HDMI 1.4 |
| Max Resolution | 1080p Full HD |
| Max Extension Distance | 500 ft / 150 m |
| Cable Type | Cat5e / Cat6 |
| Control Signals | None (video and audio only) |

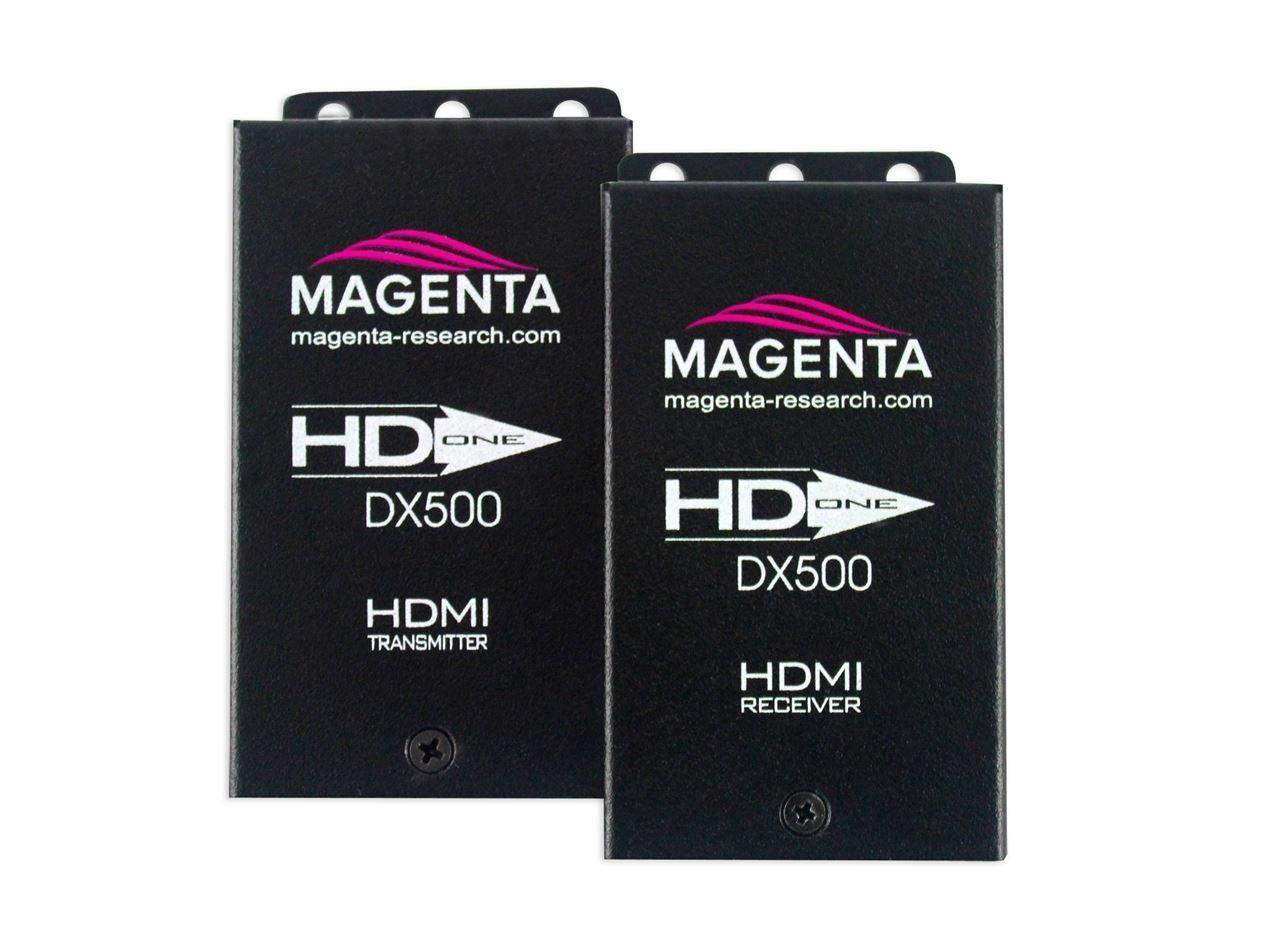

| Kit Contents | 1x Transmitter (TX), 1x Receiver (RX) |
| Product Line | tvONE HD-One (Magenta) |
Frequently Asked Questions
What is the difference between DX and LX models?
DX models carry HDMI video and audio only. LX models additionally pass bidirectional IR and RS232 control signals, enabling remote control of the source device from the display end. If control pass-through is not needed, the DX500 Kit offers a cost-effective alternative.
Does this kit include both transmitter and receiver?
Yes. The 2211114-02 is a complete kit including one HD-One DX500 Transmitter and one HD-One DX500 Receiver. Individual TX (2211121-01) and RX (2211122-01) units are also available separately.
What cable category is required for 500ft extension?
Cat5e or Cat6 is required. Cat6 is recommended for the full 500ft distance, particularly in environments with electrical interference.
