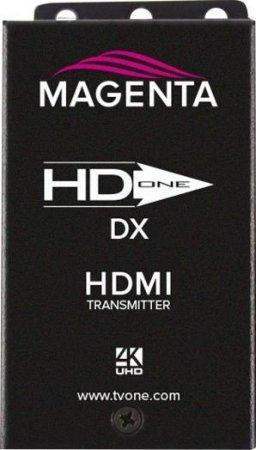

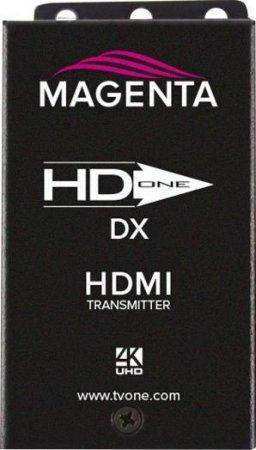

tvONE 2211093-02 HD-One DX Transmitter – HDMI 1.4 Video and Audio 328ft
tvONE 2211093-02 HD-One DX Transmitter – HDMI 1.4 Video and Audio 328ft is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
tvONE 2211093-02 HD-One DX Transmitter – HDMI 1.4 Video and Audio 3...
Product Overview
The tvONE HD-One DX Transmitter (2211093-02) is the transmit-side unit of the HD-One DX extension system, sending HDMI 1.4 video and embedded audio up to 328 feet (100 meters) over Cat5e or Cat6 cable. This unit is sold individually and pairs with the HD-One DX Receiver (2211094-02). Both units are also available as a complete kit (2211079-03).
Product Description
The HD-One DX Transmitter accepts an HDMI 1.4 input from the source device and transmits video and embedded audio over a single Cat5e/6 cable to the DX Receiver at distances up to 328 feet (100 meters). As a DX-series device, it carries video and audio only with no IR or RS232 control pass-through — making it suitable for digital signage, video monitoring, and presentation systems where source control at the display location is not required. The compact unit installs near the source, typically in an AV rack or equipment room. Pair with the HD-One DX Receiver (2211094-02) to complete the extension link. For installations requiring IR and RS232 control, the LX Transmitter (2211095-02) provides the same 328ft range with added control signals. For longer distances, the DX500 Transmitter (2211121-01) extends to 500ft.
Key Features
- 328ft/100m Transmit Range — Extends HDMI 1.4 video and audio up to 328 feet when paired with the DX Receiver.
- Video and Audio Only — DX model carries HDMI video and embedded audio; no IR or RS232.
- Individual Unit — Sold as the transmitter only; pairs with HD-One DX Receiver (2211094-02).
- HDMI 1.4 Input — Supports deep color and resolutions up to 1080p Full HD.
- Cat5e/6 Output — Single cable carries all signals to the paired receiver.
Typical Applications
- Replacement transmitter for existing HD-One DX installations
- Digital signage with centralized media player racks
- Video monitoring display extension over Cat5e/6 cabling
- Custom AV extension builds with individually sourced TX units
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 2211093-02 |
| Unit Type | Transmitter (TX) |
| Signal Standard | HDMI 1.4 |
| Max Extension Distance | 328 ft / 100 m (with DX RX) |
| Cable Type | Cat5e / Cat6 |
| Control Signals | None (video and audio only) |
| Paired Receiver | HD-One DX Receiver (2211094-02) |
| Kit Version | HD-One DX Kit (2211079-03) |
Frequently Asked Questions
What receiver does this transmitter pair with?
The 2211093-02 pairs with the HD-One DX Receiver (2211094-02). Both units are included in the HD-One DX Kit (2211079-03).
What if I need IR or RS232 control pass-through?
Use the HD-One LX Transmitter (2211095-02) paired with the LX Receiver (2211096-02), or the LX Kit (2211078-02) for a complete set.
