tvONE 2211094-02 HD-One DX Receiver – HDMI 1.4 Video and Audio 328ft
Product Overview

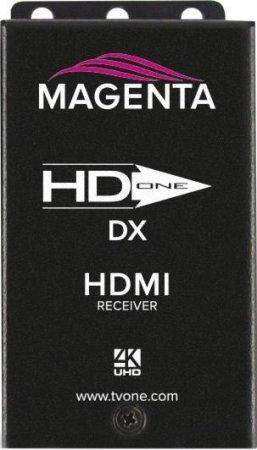

The tvONE HD-One DX Receiver (2211094-02) is the receive-side unit of the HD-One DX extension system, receiving HDMI 1.4 video and embedded audio from the HD-One DX Transmitter over Cat5e or Cat6 cable at distances up to 328 feet (100 meters). This unit is sold individually and pairs with the HD-One DX Transmitter (2211093-02). Both units are also available as a complete kit (2211079-03).
Product Description
The HD-One DX Receiver is installed at the display end of an HD-One DX extension link. It receives HDMI 1.4 video and embedded audio transmitted over a single Cat5e/6 cable from the DX Transmitter (2211093-02) and outputs HDMI to the connected display at the remote location. As a DX-series device, it handles video and audio only with no IR or RS232 connections. The compact unit can be mounted behind a display, in a wall box, or in a local equipment enclosure. Maximum extension distance is 328 feet (100 meters) when paired with the DX Transmitter. For longer distances, the DX500 Receiver (2211122-01) supports up to 500ft. For installations requiring IR or RS232 at the display end, the LX Receiver (2211096-02) is the appropriate alternative.
Key Features
- 328ft/100m Receive Range — Receives HDMI 1.4 from up to 328 feet when paired with the DX Transmitter.
- Video and Audio Only — DX model outputs HDMI video and embedded audio; no IR or RS232 connections.
- Individual Unit — Sold as the receiver only; pairs with HD-One DX Transmitter (2211093-02).
- HDMI 1.4 Output — Supports deep color and resolutions up to 1080p Full HD.
- Cat5e/6 Input — Accepts signal over a single Cat5e/6 cable from the paired transmitter.
Typical Applications
- Replacement receiver for existing HD-One DX installations
- Display-end unit for digital signage and video monitoring systems
- Custom AV extension builds with individually specified RX units
- Boardroom and meeting room display extension over Cat5e/6
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 2211094-02 |
| Unit Type | Receiver (RX) |
| Signal Standard | HDMI 1.4 |
| Max Extension Distance | 328 ft / 100 m (with DX TX) |
| Cable Type | Cat5e / Cat6 |
| Control Signals | None (video and audio only) |
| Paired Transmitter | HD-One DX Transmitter (2211093-02) |
| Kit Version | HD-One DX Kit (2211079-03) |
Frequently Asked Questions
What transmitter does this receiver pair with?
The 2211094-02 pairs with the HD-One DX Transmitter (2211093-02). Both units are included in the HD-One DX Kit (2211079-03).
Does this receiver support IR or RS232?
No. DX-series units carry video and audio only. For IR/RS232 control at the display, use the LX Receiver (2211096-02) with the LX Transmitter (2211095-02).
