tvONE CV-HDMI-4IN-FF – CORIOview HDMI 1080p 4-Input Factory Fit Module
Product Overview

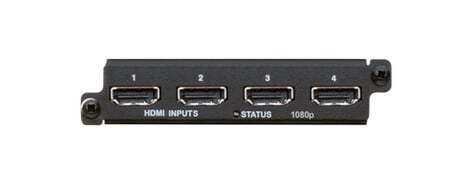

The tvONE CV-HDMI-4IN-FF is a factory-fit 1080p HDMI input module for tvONE CORIOmatrix and CORIOmatrix mini video routing and processing chassis. It provides four HDMI Type A female inputs accepting resolutions up to 1080p, with built-in audio support for up to two channels per input at 48 kHz / 24-bit. The factory-fit designation indicates this module is installed at the factory and is not field-swappable after chassis delivery — it must be specified at time of order. It is used in AV routing systems, broadcast facilities, and large-venue installations where HDMI source inputs need to be integrated into a CORIOmatrix-based signal distribution system.
Product Description
The CV-HDMI-4IN-FF adds four HDMI inputs to a CORIOmatrix or CORIOmatrix mini chassis, enabling HDMI sources including computers, media players, and presentation devices to be integrated into the CORIOmatrix signal routing and processing fabric. The module supports HDMI color spaces in RGB, YCbCr 4:4:4, 4:2:2, and 4:2:0, and covers standard definition interlaced formats (480i, 576i), HD progressive formats (720p, 1080p at multiple frame rates), and HD interlaced formats (1035i, 1080i). Maximum input resolution is 1080p. Color space conversion follows BT.601 for standard-definition resolutions and BT.709 for 720p, 1080i, 1080p, and 2160p. Embedded audio at up to two channels per input (48 kHz, 24-bit) passes through the CORIOmatrix routing fabric. As a factory-fit module, the CV-HDMI-4IN-FF must be specified when configuring the CORIOmatrix chassis order. Contact Creation Networks to specify this module in a CORIOmatrix system build.
Key Features
- Four HDMI Type A Female Inputs — Four standard HDMI connectors accept sources including computers, media servers, presentation devices, and cameras up to 1080p resolution.
- Maximum Resolution: 1080p — Supports inputs up to 1920x1080p at standard frame rates including 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 Hz.
- Broad Format Support — Accepts 480i and 576i standard definition, 720p HD, 1035i, 1080i, and 1080p at the full range of standard frame rates.
- Color Space Support — RGB, YCbCr 4:4:4, 4:2:2, and 4:2:0; BT.601 for SD, BT.709 for HD and above.
- Embedded Audio — Up to two channels per input at 48 kHz, 24-bit; audio routes through the CORIOmatrix fabric with the video signal.
- CORIOmatrix and CORIOmatrix Mini Compatible — Factory-fit module for both CORIOmatrix and CORIOmatrix mini chassis; must be specified at time of order.
Typical Applications
- Corporate AV systems routing HDMI presentation sources through CORIOmatrix
- Broadcast and production facilities integrating HDMI computer and media sources into SDI/DVI routing infrastructure
- University and large-venue installations distributing HDMI sources via CORIOmatrix
- Command and control centers ingesting HDMI data visualization and presentation feeds
- House of worship AV systems routing HDMI sources through CORIOmatrix for multi-zone distribution
Technical Specifications
| Specification | Value |
|---|---|
| Module Type | Input Module (Factory Fit) |
| Input Ports | 4x HDMI Type A (female) |
| Maximum Resolution | 1080p |
| Color Space | RGB, YCbCr 4:4:4, 4:2:2, 4:2:0 |
| Color Standard (SD) | BT.601 |
| Color Standard (HD/UHD) | BT.709 for 720p, 1080i, 1080p, 2160p |
| Supported Input Formats | 480i, 576i (24–60 Hz); 720p (23.98–60 Hz); 1035i (59.94, 60 Hz); 1080i (50, 59.94, 60 Hz); 1080p (23.98–60 Hz) |
| Audio Channels | Up to 2 channels per input |
| Audio Sampling Rate | 48 kHz |
| Audio Sample Size | 24-bit |
| Color Coding Resolution | 24-bit (8-bit per color) |
| Compatible Chassis | tvONE CORIOmatrix, CORIOmatrix mini (sold separately) |
| Installation | Factory fit (must be specified at time of order) |
Frequently Asked Questions
What does "factory fit" mean for the CV-HDMI-4IN-FF?
Factory fit means the module is installed in the CORIOmatrix chassis at the factory before shipment. It is not a field-swappable module and must be specified when placing the CORIOmatrix order. Contact Creation Networks at creationnetworks.net when configuring your CORIOmatrix system.
Does the module support 4K or UHD inputs?
No. The CV-HDMI-4IN-FF has a maximum input resolution of 1080p. For 4K/UHD input capability, a different CORIOmatrix input module would be required.
Is the module compatible with CORIOmatrix mini as well as CORIOmatrix?
Yes. The CV-HDMI-4IN-FF is compatible with both CORIOmatrix and CORIOmatrix mini chassis. Confirm the chassis configuration and available input slots when specifying your order.
Does embedded HDMI audio pass through the CORIOmatrix system?
Yes. The module supports up to two channels of embedded audio per input at 48 kHz, 24-bit. Audio is routed through the CORIOmatrix fabric along with the video signal.
What HDMI versions and resolutions are supported at 60 Hz?
The module supports 1080p at 60 Hz as its maximum resolution. Input formats include 720p and 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 Hz. 1035i is supported at 59.94 and 60 Hz only.
What warranty applies to factory-fit CORIOmatrix modules?
tvONE products are covered by the standard manufacturer warranty. Factory-fit modules are covered as part of the chassis warranty. Contact Creation Networks for current terms.
