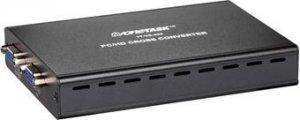

tvONE 1T-VS-434 – Analog PC/HD Cross Converter Scaler
Product Overview
The tvONE 1T-VS-434 is a compact cross-format scaler that converts between analog PC (RGBHV) and HD (YPbPr) signal formats in both directions. It automatically detects the incoming signal format and scales the output to any PC resolution up to 1920x1200 or any HD resolution up to 1080p. This makes it suitable for situations where a PC source must feed an HD display, an HD device must drive a PC monitor, or a 480i component source from a DVD player or legacy device needs to be converted to a higher resolution output. The unit is powered by 5VDC and features a locking DC connector to prevent accidental disconnection in installed systems.
Product Description
The 1T-VS-434 addresses a specific but common integration problem: analog PC and HD signals use different sync and color space conventions, and most displays or devices accept only one format. The 1T-VS-434 bridges this gap by accepting either RGBHV (PC) or YPbPr (HD component) input, automatically detecting the format, and scaling the output to the desired PC or HD resolution. Output resolution and refresh rate are selected through an on-screen display (OSD) accessible via front panel push buttons — no external software or laptop is needed for configuration. The internal processor provides adjustable control over contrast, brightness, color saturation, sharpness, RGB levels, and aspect ratio, allowing fine-tuned image quality optimization at the output. The unit also handles 480i YPbPr component input (such as from a DVD player), converting it to higher PC or HD output resolutions through de-interlacing and scaling. The compact form factor and low power requirement make it well-suited for tight equipment spaces or under-desk installation. The included locking power adapter prevents accidental power disconnection during operation.
Key Features
- Cross-Format PC/HD Conversion — Converts RGBHV (PC) to YPbPr (HD) and YPbPr to RGBHV in both directions.
- Automatic Input Format Detection — Identifies the incoming signal format without manual selection.
- PC Output Up to 1920x1200 — Scales to wide-format computer display resolutions including WUXGA.
- HD Output Up to 1080p — Full HD scaling output for professional HD displays and monitors.
- 480i Component Input Support — Accepts interlaced YPbPr component video from DVD players and legacy sources.
- OSD Image Adjustment — Front panel push buttons access contrast, brightness, saturation, sharpness, RGB levels, and aspect ratio controls.
- Locking DC Power Connector — Screw-type DC connector prevents unintentional power disconnection in installed systems.
- Ultra-Compact Form Factor — Small physical footprint suitable for equipment closets, under-desk deployment, or AV furniture.
Typical Applications
- Conference rooms connecting PC sources to HD component displays or projectors
- Training facilities adapting legacy HD component sources for display on PC monitors
- Broadcast and production environments bridging analog PC and HD signal paths
- Retrofitting older HD component displays to accept modern PC sources
- Integration scenarios requiring DVD player (480i) upscaling to HD or PC resolution
- Compact AV racks and furniture installations requiring minimal device footprint
Technical Specifications
| Specification | Value |
|---|---|
| Model | 1T-VS-434 |
| Input Formats | RGBHV (PC analog), YPbPr (HD component), 480i YPbPr |
| Output Formats | RGBHV (PC analog), YPbPr (HD component) |
| Max PC Output Resolution | 1920x1200 |
| Max HD Output Resolution | 1080p |
| Input Format Detection | Automatic |
| Output Selection | OSD via front panel push buttons |
| Image Adjustments | Contrast, Brightness, Saturation, Sharpness, RGB Levels, Aspect Ratio |
| Power | 5VDC (locking DC connector, adapter included) |
Frequently Asked Questions
Can the 1T-VS-434 convert an HD component signal to a PC monitor?
Yes. It accepts YPbPr HD component input and converts it to RGBHV output suitable for PC monitors at resolutions up to 1920x1200.
Will it work with a DVD player outputting 480i component?
Yes. The unit accepts 480i YPbPr component input and scales it to the selected PC or HD output resolution through de-interlacing and scaling.
Does the unit automatically detect the input signal?
Yes. Automatic input detection identifies whether the incoming signal is RGBHV or YPbPr without manual configuration.
How is the output resolution selected?
Output resolution and refresh rate are selected through the on-screen display (OSD), accessible via push buttons on the unit's front panel.
Is this unit suitable for permanent installation?
Yes. The locking DC power connector prevents accidental disconnection, making it appropriate for permanent AV installations.
