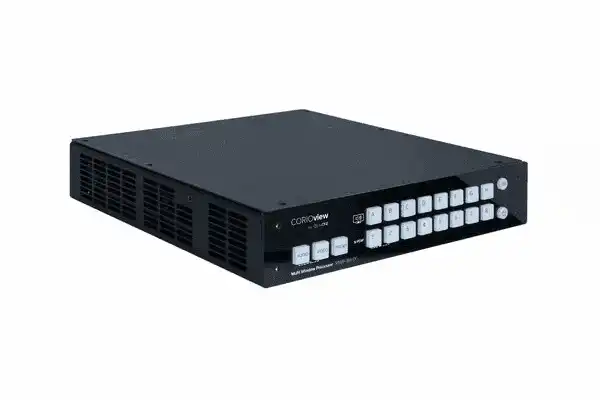

TVOne CORIOview - MWP-8H-1Y Multi-Window Processors

No reviews

Sale price$6,765.00


Spec Sheet

The MWP-8H-1Y has 8 1080p HDMI inputs and 4K HDMI output. Easily display all your digital AV sources in stunning 4K quality.

ORIOview is the fastest, most intuitive 4K multi-window processor with up to 8 sources. This easy to use, plug and play solution features front panel control for preset recall or source selection. With six (6) product variants CORIOview can take in almost any input type and display it on a HDMI display up to 4K. Input types include: IP, HDMI, DVI-U and SDI.

The CORIOview multi-window processor is available in six off-the-shelf models as well as a wide variety of made to order versions.

For made to order units, choose from the output modules & input modules in the chart below:

ONE Product. TWO Modes. Any Application.

The award-winning CORIOview multi-window processor is available in two modes: Classic mode & Dynamic mode.

Choose from a Classic multi-viewer look and feel or the highly optimized Dynamic mode when collaboration and ease of use really matter in your huddle rooms, meeting spaces and control rooms.

Classic Mode allows you to control key features like audio, borders, and labels as well as select window presets.

Dynamic Mode allows you to collaborate in your huddle rooms and meeting spaces with automated preset windowing and fast panel control operation.



Firmware Updates

CORIOview Firmware Updates Page

  • Advanced 4K processor with up to 8 sources
  • 1/2 RU form factor with ultra-quiet operation
  • Intuitive Front Panel Control for presets and switching
  • Mixed Input types including: IP, HDMI , DVI-U & SDI
  • HDCP Handling on HDMI Inputs & Outputs
  • Eye-catching transitions or fade through black
  • Source labeling and Borders
  • Info button to easily indicate your source selection
  • Audio breakaway from SPDIF or display
  • CORIOgrapher touch-enabled control software
  • Third party control through API or AMX & Crestron plug-ins
  • Available in six (6) variants
  • 19" rack, surface or ONErack mounting options

tvONE MWP-8H-1Y Specifications:

  • Video Processing
    • Technology: CORIO®3
    • Performance Inputs: up to 4K60 & Output up to 4K30
    • Format conversion: Up/Down/Cross Conversion
    • Max. number of Windows: 8
  • Windows
    • Windows: Up to eight windows*
    • Borders: Configurable color & thickness
    • Labels: Available on all windows
    • Transitions: Available when changing sources or Presets
  • Presets
    • Number of presets available: 16*
    • Accessible from front panel: 16*
    • Preset effects: Transitions, fade through black or window movement
  • Configuration & Control
    • Application: CORIOgrapher software
    • Platform: PC with Windows 10 & Windows 7 minimum
    • Standby Mode: Faster boot up & saves power

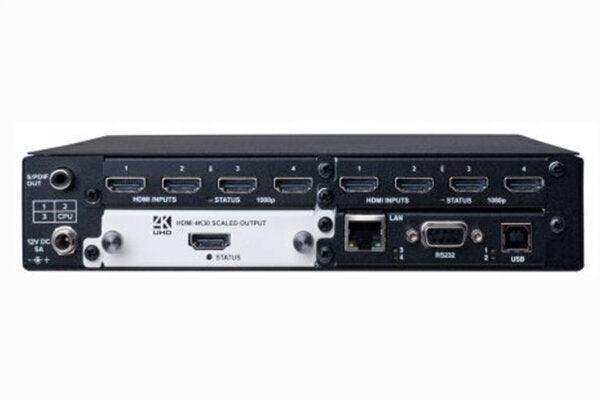

  • Control Ports
    • Female Connector: RS-232 D9
    • IP Interface: RJ45 Connector
    • USB Type: B - for future use
  • Video Inputs
    • Input connectors: 8 x HDMI - HDMI 1.4 & HDCP 1.4 compatibility
    • Resolution support (4:4:4):
      • 480i, 576i, 24Hz to 60Hz
      • 720p (1280x720) - 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
      • 1035i (1920x1035) - 59.94, 60Hz
      • 1080i (1920x1080) - 50, 59.94, 60Hz
      • 1080p (1920x1080) -23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
    • Color format support: RGB, YCbCr 4:4:4, 4:2:2 & 4:2:0
    • Color depth: 8 bpc (24 bit/px)
    • Color space support: BT.601 on standard resolutions BT.709 for 720p, 1080i, 1080p
  • Media/Images
    • Interfaces: USB 3.0, Internal Storage
    • Video Codecs: H.264 (CBP, Main, High)
    • Video Formats: mp4, .mov, .mkv, .m4v, .ts, .mts, .m2ts, .mt2
    • Playback Bit Rates: Single stream to 100Mbs, Dual Streams to 40Mbs
  • File Playback Resolutions
    • Supported:
    • Up to 3480x2160@30fps 1
    • Up to 1080p60@60fps Up to 2
    • Up to 7680 x 4320 Up to 2 (still images only)
  • Media Handling
    • External: 1 x USB 3.0 interface
    • Supported devices: Flash file systems FAT, FAT32, ext3, ext4, NTFS
    • Internal High-speed storage: up to 128GB per module
  • Audio Inputs
    • Supported sampling rate: 48KHz
    • Sample size: 24 bits
    • Supported channels: 1 Stereo pair on each input 4H-1Y, 8H-1Y, 4D-1Y, 4Y-1Y, 8GS-1Y
  • Audio Output
    • Connector: RCA
    • Format: S/PDIF
    • Supported sampling rate: 48KHz
    • Sample size: 24 bits
    • Supported channels: 1 Stereo pair
  • Video Output
    • Output connector: HDMI
    • Resolution support:
      • 720p, 1080i & 1080p @ 24Hz to 60Hz
      • 3840 x 2160 @ 23.98Hz 24Hz, 25Hz, 29.97Hz & 30Hz
    • Chroma sampling: 4:4:4
    • Scaling: All supported resolutions
    • Compatibility HDMI: 1.4 & HDCP 1.4
    • Color depth: 8 bpc (24 bit/px)
    • Color space support: BT.709 for 720p, 1080i, 1080p and 2160p
  • Embedded Audio Output
    • Supported sampling rate: 48KHz
    • Sample size: 24 bits
    • Supported channels: 1 Stereo pair
  • Mechanical
    • Size (HxWxD): 1.73 x 8.54 x 9.61" (44 x 217 x 244mm)
    • Weight: 3.75 lbs (1.7 Kg) approximately
  • Regulatory Compliance
    • Main unit FCC, CE, RoHS, UL
  • Environmental
    • Operating Temperature: 0° to +40°C (+32° to +104°F)
    • Operating Humidity: 10% to 85%, Non-condensing
    • Storage Temperature: -10° to +70°C (+14° to +158°F)
    • Storage Humidity: 10% to 85%, Non-condensing
    • MTBF: 50,000 Hours
    • BTU: 205 BTU/hr
    • Fan Noise: 44dBA @ 0.5m
  • Power Supply
    • External 110v-240v 50-50Hz auto-detecting
    • Connector Locking
    • Power cable US, UK, EU or AU
    • * number of presets/windows depends on exact unit configuration
