TVOne CORIOview MWP-4D-1Y 4x4K HDMI In and 1x4K HDMI Out - Multi Window Processor

Spec Sheet

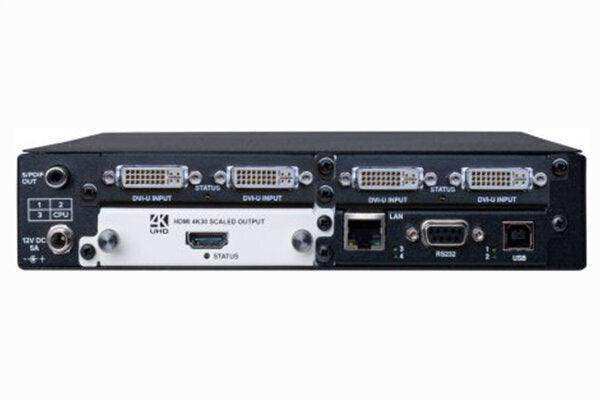

The MWP-4D-1Y has 4 Universal DVI inputs and 4K HDMI output. Easily connect your digital and analog AV sources, providing the ultimate flexibility due to integrated format conversion / scaling.

CORIOview is the fastest, most intuitive 4K multi-window processor with up to 8 sources. This easy to use, plug and play solution features front panel control for preset recall or source selection. With six (6) product variants CORIOview can take in almost any input type and display it on a HDMI display up to 4K. Input types include: IP, HDMI, DVI-U and SDI.

The CORIOview multi-window processor is available in six off-the-shelf models as well as a wide variety of made to order versions.

For made to order units, choose from the output modules & input modules in the chart below:

ONE Product. TWO Modes. Any Application.

The award-winning CORIOview multi-window processor is available in two modes: Classic mode & Dynamic mode.

Choose from a Classic multi-viewer look and feel or the highly optimized Dynamic mode when collaboration and ease of use really matter in your huddle rooms, meeting spaces and control rooms.

Classic Mode allows you to control key features like audio, borders, and labels as well as select window presets.

Dynamic Mode allows you to collaborate in your huddle rooms and meeting spaces with automated preset windowing and fast panel control operation

Advanced 4K processor with up to 8 sources

• 1/2 RU form factor with ultra-quiet operation
• Intuitive Front Panel Control for presets and switching
• Mixed Input types including: IP, HDMI , DVI-U & SDI
• HDCP Handling on HDMI Inputs & Outputs
• Eye-catching transitions or fade through black
• Source labeling and Borders
• Info button to easily indicate your source selection
• Audio breakaway from SPDIF or display
• CORIOgrapher touch-enabled control software
• Third party control through API or AMX & Crestron plug-ins
• Available in six (6) variants
• 19" rack, surface or ONErack mounting options

• Video Processing
• Technology: CORIO®3
• Performance Inputs: up to 4K60 & Output up to 4K30
• Format conversion: Up/Down/Cross Conversion
• Max. number of Windows: 8

  Windows
• Windows: Up to eight windows
• Borders: Configurable color & thickness
• Labels: Available on all windows
• Transitions: Available when changing sources or Presets

  Presets
• Number of presets available: 16
• Accessible from front panel: 16
• Preset effects: Transitions, fade through black or window movement

  Configuration & Control
• Application: CORIOgrapher software
• Platform: PC with Windows 10 & Windows 7 minimum
• Standby Mode: Faster boot up & saves power

  Control Ports
• Female Connector: RS-232 D9
• IP Interface: RJ45 Connector
• USB Type: B - for future use

  Video Inputs
• Input connectors: 4 x HDMI - HDMI 1.4 & HDCP 1.4 compatibility
• Input maximum capability: Up to 2x 4K@30, 1x 4K@60 per module (2 modules)
• Resolution support (4:4:4):
  480i, 576i, 24 to 60Hz
  720p (1280x720) - 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
  1035i (1920x1035) - 59.94, 60Hz
  1080i (1920x1080) - 50, 59.94, 60Hz
  1080p (1920x1080) -23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
  2160p (3840 x 2160) - 23.98 24, 25, 29.97 & 30Hz
  2160p (4096x2160) - 50/59.94/60Hz
• Resolution support (4:2:0): 2160p (3840 x 2160) - 50, 59.94, 60Hz
• Color format support: RGB, YCbCr 4:4:4, 4:2:2 & 4:2:0
• Color depth: 8 bpc (24 bit/px)
• Color space support: BT.601 on standard resolutions
  BT.709 for 720p, 1080i, 1080p and 2160p

  Media/Images
• Interfaces: USB 3.0, Internal Storage
• Video Codecs: H.264 (CBP, Main, High)
• Video Formats: mp4, .mov, .mkv, .m4v, .ts, .mts, .m2ts, .mt2
• Playback Bit Rates: Single stream to 100Mbs, Dual Streams to 40Mbs

  File Playback Resolutions
• Supported:
  Up to 3480x2160@30fps 1
  Up to 1080p60@60fps Up to 2
  Up to 7680 x 4320 Up to 2 (still images only)

  Media Handling
• External: 1 x USB 3.0 interface
• Supported devices: Flash file systems FAT, FAT32, ext3, ext4, NTFS
• Internal High speed storage: up to 128GB per module

  Audio Inputs
• Supported sampling rate: 48KHz
• Sample size: 24 bits
• Supported channels: 1 Stereo pair on each input 4H-1Y, 8H-1Y, 4D-1Y, 4Y-1Y, 8GS-1Y

  Audio Output
• Connector: RCA
• Format: S/PDIF
• Supported sampling rate: 48KHz
• Sample size: 24 bits
• Supported channels: 1 Stereo pair

  Video Output
• Output connector: HDMI
• Resolution support:
  720p, 1080i & 1080p @ 24Hz to 60Hz
  3840 x 2160 @ 23.98Hz 24Hz, 25Hz, 29.97Hz & 30Hz
• Chroma sampling: 4:4:4
• Scaling: All supported resolutions
• Compatibility HDMI: 1.4 & HDCP 1.4
• Color depth: 8 bpc (24 bit/px)
• Color space support: BT.709 for 720p, 1080i, 1080p and 2160p

  Embedded Audio Output
• Supported sampling rate: 48KHz
• Sample size: 24 bits
• Supported channels: 1 Stereo pair

  Mechanical
• Size (HxWxD): 1.73 x 8.54 x 9.61" (44 x 217 x 244mm)
• Weight: 3.75 lbs (1.7 Kg) approximately

  Regulatory Compliance
• Main unit: FCC, CE, RoHS, UL

  Environmental
• Operating Temperature: 0° to +40°C (+32° to +104°F)
• Operating Humidity: 10% to 85%, Non-condensing
• Storage Temperature: -10° to +70°C (+14° to +158°F)
• Storage Humidity: 10% to 85%, Non-condensing
• MTBF: 50,000 Hours
• BTU: 205 BTU/hr
• Fan Noise: 44dBA @ 0.5m

  Power Supply
• External: 110v-240v 50-50Hz auto-detecting
• Connector: Locking
• Power cable: US, UK, EU or AU

• Item Includes
  • Quick Start Guide Printed
  • USB Key Documentation & Links
  • Power Supply Included
• Warranty
  • Limited Warranty 5 Years Parts and Labor
