tvONE CORIOview MWP-8GS-1Y – 8-Input 3G-SDI 4K Multiviewer

Product Overview

The tvONE CORIOview MWP-8GS-1Y is an 8-input 3G-SDI multiviewer that outputs to a single 4K HDMI display, making it the SDI-native model in the CORIOview multi-window processor family. It is designed for AV integrators and broadcast engineers who need to display multiple SDI sources — cameras, switchers, routing infrastructure — on a single 4K monitor in broadcast studios, government operations centers, or live event control rooms. The MWP-8GS-1Y delivers the same CORIO®3 processing engine, CORIOgrapher software control, and front-panel preset recall found across the CORIOview range, in a half-rack chassis sized for space-constrained equipment rooms.

Product Description

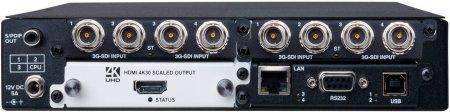

The tvONE CORIOview MWP-8GS-1Y accepts 8 x 3G-SDI inputs and composites them onto a single 4K HDMI output at up to 3840x2160@30Hz. It is purpose-built for environments where SDI infrastructure is already in place — broadcast studios, live event venues, government operations rooms, and house of worship production booths — and where all SDI sources must be monitored simultaneously on a single UHD display. The unit runs on tvONE's CORIO®3 engine, supports up to 8 simultaneous display windows with up to 16 storable layout presets accessible from the front panel, and offers the CORIOview's dual operating modes: Classic Mode for full manual control of borders, labels, audio, and transitions; and Dynamic Mode for automated windowing in fast-paced switching environments. Window presets are recalled from the front panel without a connected control system. Third-party integration uses RS-232 D9, RJ45 IP, and a published REST API with native AMX and Crestron plug-ins. The S/PDIF RCA breakout provides independent audio routing. The compact 1/2 RU chassis (44 x 217 x 244 mm) fits standard 19" racks, surface mounts, or the tvONE ONErack system.

Key Features

• 8 x 3G-SDI Inputs — Accepts 8 simultaneous 3G/HD/SD-SDI sources for native SDI monitoring workflows without format conversion at the source end.
• 4K HDMI Output — Single HDMI 1.4 output at up to 3840x2160@30Hz delivers a UHD composite view of all 8 SDI inputs on one display.
• Up to 8 Simultaneous Windows — Display all 8 SDI sources simultaneously using up to 16 storable layout presets with configurable borders, labels, and transitions.
• CORIO®3 Processing Engine — Real-time video scaling, format conversion, and window compositing purpose-built for 4K multi-source display.
• Classic and Dynamic Operating Modes — Classic Mode for full manual control; Dynamic Mode for automated windowing in live production and control room environments.
• Front Panel Preset Recall — Operators switch layouts and select sources directly from the unit without a PC or control system connected.
• CORIOgrapher Software — Touch-enabled Windows control software for layout design, source assignment, transition effects, and preset management.
• Third-Party Control Integration — RS-232 D9, RJ45 IP, REST API, AMX and Crestron plug-ins for integration with professional broadcast and AV control infrastructure.
• Audio Breakaway via S/PDIF — Independent RCA S/PDIF output at 48 kHz / 24-bit for audio routing independent of the video output.
• Compact Half-Rack Form Factor — 1/2 RU (44 x 217 x 244 mm), ultra-quiet 44 dBA operation, with 19" rack, surface, and ONErack mounting options.
• 5-Year Limited Warranty — tvONE covers parts and labor for five years from date of purchase.

Typical Applications

• Broadcast studio
• Government space
• House of worship
• Auditorium
• Commercial meeting space
• Multi-purpose room
• Training room
