Product Overview

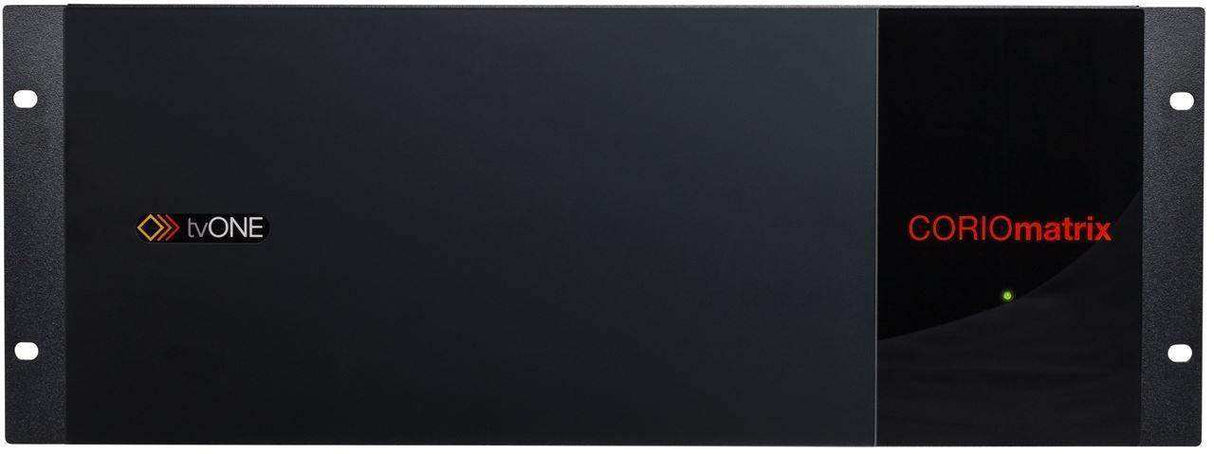

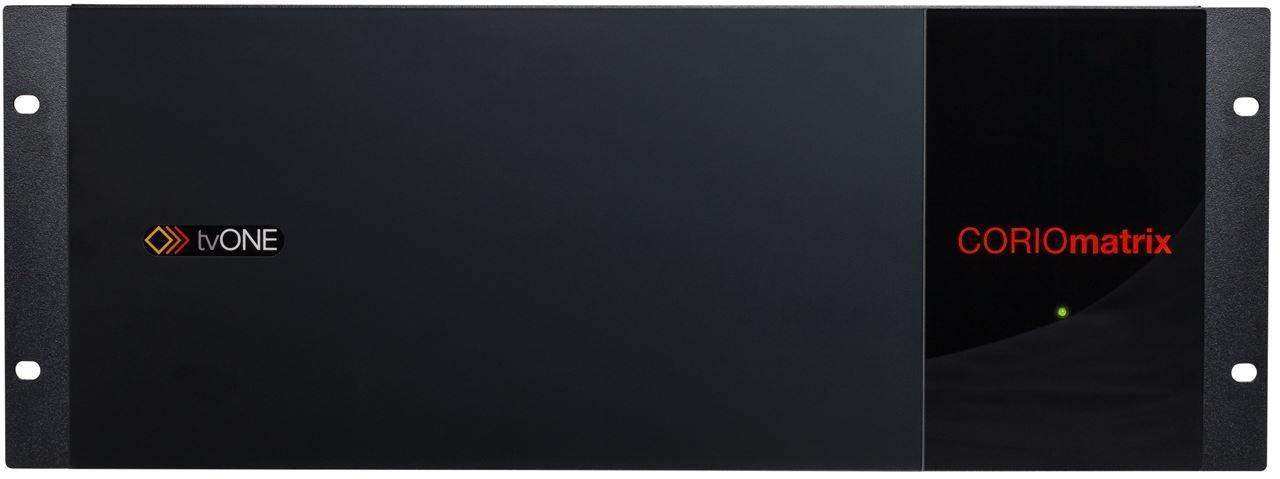

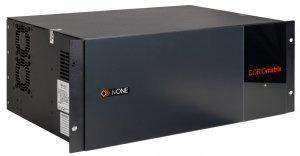

The tvONE CORIOmatrix C3-340 is a commercial-grade 4RU modular matrix router that integrates mixed AV, broadcast, IP, and legacy video sources in a single chassis, supporting up to 32 ports (16 input slots) across 12+ I/O module types. It provides low-latency up/down/cross conversion, glitch-free switching, integrated audio routing, and custom resolution support from 640x480 to 3840x2160 — making it an effective single-box solution for AV system designers who need to route and scale mixed-format signals including 4K HDMI, DVI, SDI, and H.264/H.265 IP feeds. The CORIOmatrix is HDCP compliant, TAA compliant, and controlled via web interface, REST API, RS-232, and free third-party control plug-ins for Crestron and AMX.
Product Description
The C3-340 CORIOmatrix uses tvONE's CORIO scaling technology to deliver low-latency format conversion alongside high-speed matrix switching, eliminating the need for separate scalers in mixed-format AV systems. Each output slot accepts a scaler module, providing independent up/down/cross conversion per output with control of frame rate, aspect ratio, and frame/field handling. This makes the CORIOmatrix practical for installations that combine 4:3 and 16:9 sources, mix HD and 4K signal paths, or route SDI alongside HDMI in the same system. Glitch-free switching or fade-through-black transitions are configurable per output for clean presentations in boardrooms, control rooms, and live event environments.
Integrated audio routing allows audio to follow video or be independently routed, with SDI and HDMI/DVI de-embed and re-embed capabilities built into the scaler modules. An optional monitoring output module provides a multi-input preview view for operators to verify all sources before routing. Output Sleep Mode allows displays to be powered off remotely — individually or globally — reducing controller complexity and power consumption in large installations. Custom resolutions up to 3840x2160 support LED wall integration and non-standard display configurations. The CORIOmatrix supports up to 300 watts maximum for a fully populated chassis and operates within 37.7–50.6 dB(A) depending on ambient temperature, making it suitable for in-room deployments.
Key Features

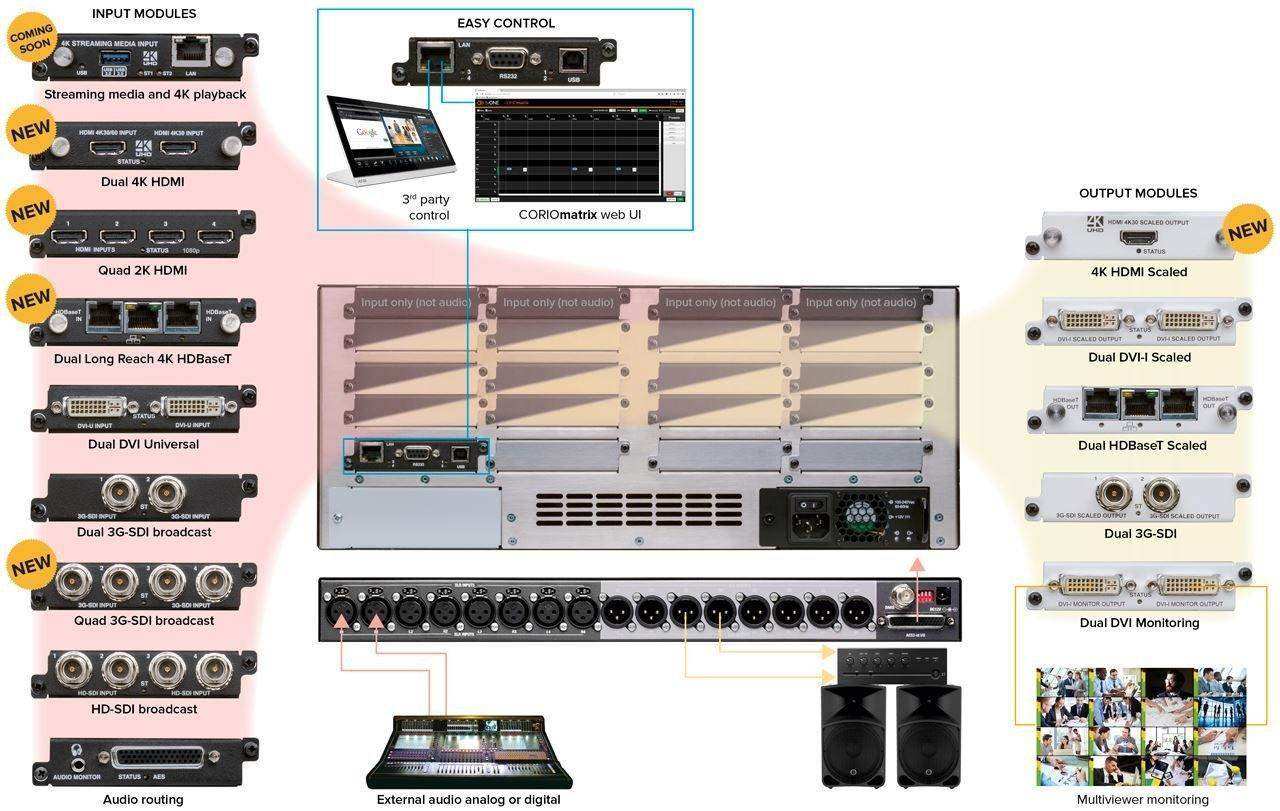

- Universal I/O with 12+ Module Types — The modular 16-slot design supports DVI, Universal DVI, 4K HDMI, HDBaseT, 3G-SDI, HD-SDI, and IP modules for full mixed-format signal integration.
- Up to 32 Ports in 4RU — Scales to 32 switching ports in a single rack-mount chassis; the Quad HDMI Input Module provides higher input density for 1080p source environments.
- Low-Latency Up/Down/Cross Conversion — Per-output CORIO scaling handles format conversion between any input and output signal type with full control of frame rate and aspect ratio.
- Glitch-Free Switching — Configurable instant switching or fade-through-black transitions per output for clean routing changes in presentation and event environments.
- Integrated Audio Routing — Audio follows video or routes independently; SDI and HDMI/DVI de-embed and embed supported per output.
- Custom Resolution Support — Supports standard and custom output resolutions from 640x480 to 3840x2160 for LED wall integration and non-standard display configurations.
- Optional Video Monitoring Module — Multi-input preview output module provides source monitoring for all connected inputs from a single display.
- Output Sleep Mode — Remotely power off displays individually or globally to simplify system control and reduce power consumption.
- Control via Web UI, API, RS-232, and CLI — Full-featured web interface and REST API for real-time routing control; free Crestron and AMX plug-in modules available.
- HDCP Compliant — Handles protected content routing through HDMI and HDBaseT signal paths.
- Optional Redundant Hot-Swappable PSU — Dual power supply option for commercial-grade uptime in mission-critical AV environments.
- 5-Year Warranty / TAA Compliant — Backed by tvONE's standard warranty; eligible for government AV procurement.
Typical Applications
- Boardroom and conference room AV signal distribution
- Government space and operations center signal routing
- Broadcast studio mixed-format matrix switching
- Auditorium and multi-purpose room AV systems
- House of worship production and display routing
- Training room and commercial meeting space AV infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Model | C3-340 |
| Form Factor | 4RU rack-mount |
| Maximum Ports | Up to 32 |
| Chassis Slots | 16 |
| I/O Module Types | 12+ types: DVI, Universal DVI, 4K HDMI, HDBaseT, 3G-SDI, HD-SDI, Quad HDMI, audio |
| Custom Resolution Range | 640 x 480 to 3840 x 2160 |
| Conversion | Up/Down/Cross conversion; dynamic aspect ratio conversion (4:3 ⇔ 16:9) |
| Switching | Glitch-free instant switching or fade through black |
| Audio Routing | Audio follows video or independent; SDI and HDMI/DVI de-embed/embed |
| Control Interfaces | RS-232, TCP/IP, Web UI, CLI, Crestron, AMX |
| HDCP Compliance | Yes |
| Dimensions (H x W x D) | 7.0" x 19.0" x 13.1" (178 x 482 x 334 mm) |
| Power Consumption (max) | 300 watts (fully populated chassis) |
| BTU/hr | 1024 BTU/hr |
| Fan Noise | 37.7 dB(A) min (0–35°C) / 50.6 dB(A) max (40°C) |
| MTBF | Approximately 35,000 hours |
| Operating Temperature | 0° to +40°C (+32° to +104°F) |
| Operating Humidity | 10% to 85%, non-condensing |
| Power Supply | 110V–240V auto-detecting; optional hot-swappable redundant PSU |
| Regulatory Compliance | FCC, CE, RoHS |
| Warranty | 5 years parts and labor |
| Compliance | TAA compliant, HDCP compliant |
Frequently Asked Questions
What AV control systems does the C3-340 CORIOmatrix integrate with?
The CORIOmatrix integrates with Crestron and AMX via free control plug-in modules available from tvONE's support portal. It also supports RS-232, TCP/IP, Web UI, and CLI control for direct third-party system integration without requiring proprietary modules. API documentation and command references are available at tvONE's developer resources.
What signal formats does the C3-340 CORIOmatrix support?
The CORIOmatrix supports DVI, HDMI (up to 4K), Universal DVI (HDMI, DVI, RGB/YPbPr, YC, composite), HDBaseT, 3G-SDI, HD-SDI, SD-SDI, and H.264/H.265 IP streams through its modular I/O architecture. Over 12 module types are available, allowing any mix of broadcast, AV, and IP sources in the same chassis.
Can the C3-340 handle 4K routing and scaling?
Yes. The 4K HDMI Input Module (CM-HDMI-4K-X-2IN) accepts 4K HDMI sources, and the 4K HDMI Output Module (CM-HDMI-4K-XSC-1OUT) provides 4K30 scaled output. Custom resolutions up to 3840x2160 are supported for LED wall integration and 4K display configurations.
Does the C3-340 support in-room installation — is it quiet enough?
Yes. At ambient temperatures of 0–35°C, the CORIOmatrix operates at 37.7 dB(A), which is suitable for in-room AV rack installations in conference rooms and boardrooms. Fan speed increases to a maximum of 50.6 dB(A) at 40°C, typical of fully loaded racks in warm environments.
Does the CORIOmatrix support audio routing independent of video?
Yes. The CORIOmatrix supports audio following video for standard AV routing, or audio can be independently routed as a separate signal path. SDI and HDMI/DVI audio de-embed and embed are supported via scaler modules. An optional audio module with AES input/output and analog/digital audio breakout boxes is also available.
What is the warranty on the C3-340 CORIOmatrix?
tvONE provides a 5-year parts and labor warranty on the C3-340. The unit is TAA compliant for government procurement. Firmware updates and technical support are available through support.tvone.com. Contact Creation Networks at creationnetworks.net for configuration assistance or module selection support.
