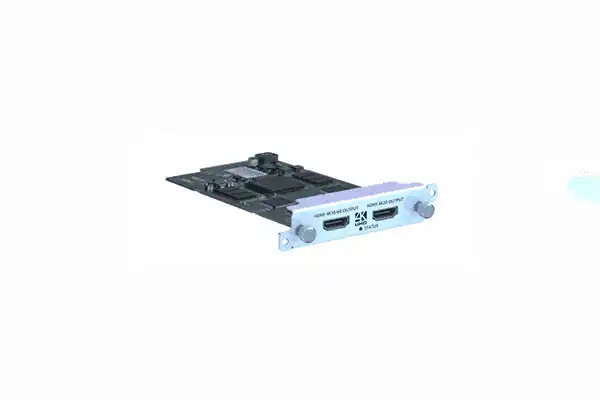

tvONE CM-HDMI-4K-SC-2OUT – Dual HDMI 4K Scaled Output Module

Product Overview

The tvONE CM-HDMI-4K-SC-2OUT is a dual HDMI 4K scaled output module for CORIOmaster video wall processors. It supports a single 4K60 output or two independent outputs up to 4K30, giving integrators flexible high-resolution output options from a single module bay. A cloning feature allows the second output to mirror the first at resolutions up to 4K60. Compatible with CORIOmaster C3-540 and CORIOmaster mini C3-510 chassis (sold separately).

Product Description

The CM-HDMI-4K-SC-2OUT slots into any available I/O bay of a compatible CORIOmaster chassis and provides two HDMI outputs with independent hardware scaling. In dual-output mode, each output can drive a display at resolutions up to 4K30 (3840x2160 at 30Hz), making this module suitable for high-resolution video wall segments. When a single 4K60 output is required, both outputs can be configured to feed a single display at 4K60 — the highest frame rate available from this module type. A cloning mode is also available: the second output can be configured as a clone of output 1, operating at up to 4K60. This is particularly useful for mirrored display installations such as duplicate screens in conference rooms or dual-sided signage. Each output includes hardware scaling, so source content at any CORIOmaster-supported resolution is scaled to match the target display without requiring host CPU resources. The module installs tool-free into any I/O bay and draws power entirely from the chassis. It is compatible with CORIOmaster C3-540 and CORIOmaster mini C3-510; confirm compatibility with CORIOmaster2 CM2-547 with tvONE prior to ordering.

Key Features

• Single 4K60 or Dual 4K30 Outputs — Configurable as one 4K60 output or two independent 4K30 outputs, adapting to different video wall layouts from one module slot.
• Output Cloning — Second output can clone output 1 at up to 4K60, enabling mirrored display configurations without additional hardware.
• Per-Output Hardware Scaling — Independent scaling on each output ensures accurate signal delivery to displays of varying native resolutions.
• Tool-Free Installation — Slides into any CORIOmaster I/O bay and locks without tools, reducing installation time in the field.
• Chassis-Powered — Draws all power from the CORIOmaster chassis; no external power supply needed.
• Compact Dual-Output Design — Two high-resolution outputs from a single module bay preserve remaining bays for additional inputs or outputs.

Typical Applications

• Boardroom — dual 4K display walls or mirrored conference room displays
• Auditorium — high-resolution video wall outputs for large-format displays
• Broadcast studio — 4K output modules for monitoring and production walls
• House of worship — large-format 4K video wall displays for congregation spaces
• Government space — secure 4K multi-display operations environments
• Training room — 4K instructional video wall display arrays
