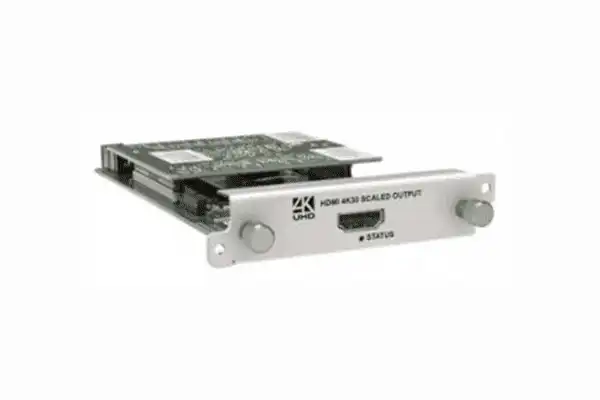

tvONE CM-HDMI-4K-SC-1OUT – Single HDMI 4K30 Scaled Output Module

Product Overview

The tvONE CM-HDMI-4K-SC-1OUT is a single HDMI 4K30 scaled output module for CORIOmaster video wall processors. It provides one HDMI output capable of resolutions up to 3840x2160 at 30Hz with hardware scaling, making it suited for applications that require a single high-resolution output from a dedicated module slot. Compatible with CORIOmaster C3-540 and CORIOmaster mini C3-510 chassis (sold separately).

Product Description

The CM-HDMI-4K-SC-1OUT occupies a single I/O bay in a compatible CORIOmaster chassis and delivers one HDMI output with hardware scaling at resolutions up to 3840x2160 (4K UHD) at a maximum frame rate of 30fps. This module targets installations where a single large-format 4K display or projector is being driven from a CORIOmaster processor and the system design allocates a dedicated bay for that output. Hardware scaling is performed on the module itself, ensuring source content at any supported resolution is scaled to the target display's native resolution without processing overhead on the chassis. The 4K30 output makes this module appropriate for static or low-motion content such as presentation graphics, data visualization, and signage on large 4K displays. For higher frame rate requirements, the CM-HDMI-4K-SC-2OUT module — which supports 4K60 in single-output mode — should be evaluated. This module installs tool-free into any available I/O bay and draws all power from the chassis. Maximum output resolution is 3840x2160; maximum frame rate is 30fps.

Key Features

• 4K30 HDMI Output — Single HDMI output supports resolutions up to 3840x2160 at 30fps, driving large-format 4K displays from a single module bay.
• Hardware Video Scaling — On-module hardware scaling adjusts source content to match target display resolution without impacting chassis processing resources.
• 4K UHD Resolution — Supports 3840x2160 screen mode for high-resolution signage and presentation display applications.
• Tool-Free Installation — Slides into any CORIOmaster I/O bay without tools, simplifying field installation and module changes.
• Chassis-Powered — Draws all power from the CORIOmaster chassis; no external power supply required.
• Single-Bay Efficiency — Dedicating one bay to a single 4K output preserves remaining bays for input modules or additional output types.

Typical Applications

• Boardroom — single 4K display driven from a CORIOmaster video wall processor
• Conference room — dedicated 4K30 output for large-format presentation displays
• Auditorium — single large-format 4K display or projector feed
• House of worship — dedicated 4K output to main stage display or LED wall
• Government space — high-resolution 4K display output in command or briefing environments
• Training room — 4K display output for high-resolution instructional content

Technical Specifications

Frequently Asked Questions
