tvONE CM-HDBT-XSC-2OUT-1ETH – Dual HDBaseT Scaled Output Module for CORIOmatrix

Product Overview

The tvONE CM-HDBT-XSC-2OUT-1ETH is a dual HDBaseT scaled output module designed for the CORIOmatrix matrix router platform. It provides two HDBaseT outputs with scaling and is HDCP compliant, enabling long-distance video distribution over Cat5e/Cat6 cabling to remote displays. This module occupies a single I/O bay in a CORIOmatrix chassis (sold separately) and includes an Ethernet port for network pass-through at the output end.

Product Description

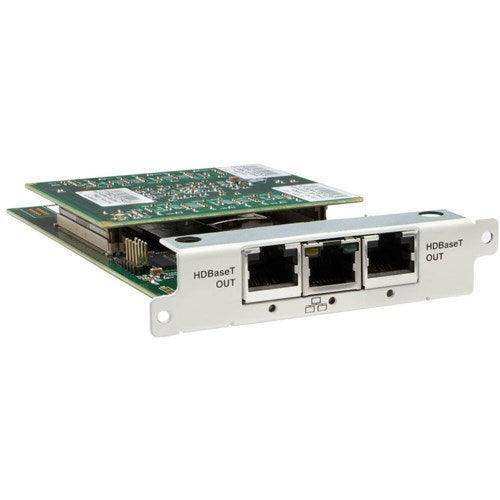

The CM-HDBT-XSC-2OUT-1ETH installs in a CORIOmatrix matrix router chassis and provides two HDBaseT outputs, each with hardware scaling. This module is the CORIOmatrix variant of the HDBaseT scaled output family; it is designed specifically for CORIOmatrix systems and should not be confused with the CM-HDBT-SC-2OUT-1ETH, which is designed for CORIOmaster chassis. HDBaseT outputs carry high-definition video and audio over standard Cat5e or Cat6 cabling to remote displays, eliminating the need for HDMI cable runs to distant screen locations. The hardware scaler on each output adjusts the source signal to match the native resolution of the connected display. HDCP compliance ensures protected content from HDCP sources can be distributed through the HDBaseT link. The built-in Ethernet port passes network access to the remote display location through the HDBaseT link, supporting control system or device connectivity without additional data cabling. This module is suited for large-scale signal distribution environments where multiple displays are located across a building or facility, connected back to a central CORIOmatrix chassis over structured Cat cabling. The chassis is sold separately; HDBaseT receivers are required at each display end and are also sold separately.

Key Features

• Dual HDBaseT Scaled Outputs — Two independent HDBaseT outputs, each with hardware scaling, distribute video over Cat5e/Cat6 cabling to remote displays.
• HDCP Compliant — Supports protected content distribution over the HDBaseT link, meeting requirements for HDCP source environments.
• Ethernet Pass-Through — Integrated Ethernet port provides network connectivity at the remote display location via the HDBaseT link.
• Per-Output Scaling — Each output includes independent hardware scaling to match display native resolutions.
• CORIOmatrix Platform — Designed specifically for the CORIOmatrix matrix router chassis; not interchangeable with CORIOmaster output modules.
• Tool-Free Installation — Slides into any CORIOmatrix I/O bay without tools, simplifying deployment and module changes.

Typical Applications

• Boardroom — distributed CORIOmatrix output to multiple display rooms over Cat cabling
• Conference room — matrix-routed HDBaseT output to meeting room displays
• Auditorium — long-run signal distribution to stage and balcony displays
• House of worship — distributed video from CORIOmatrix to overflow rooms and lobby displays
• Government space — structured-cabling-based distribution to multi-room display environments
• Training room — HDBaseT-routed display feeds from a central CORIOmatrix system

Technical Specifications

Frequently Asked Questions
