tvONE CM-HDBT-SC-2OUT-1ETH – Dual HDBaseT Scaled Output Module

Product Overview

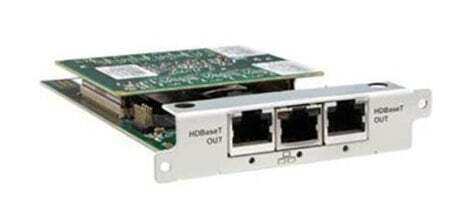

The tvONE CM-HDBT-SC-2OUT-1ETH is a 2-port HDBaseT scaled output module for CORIOmaster video wall processors. It delivers two independently scaled HDBaseT outputs and includes a built-in Ethernet port for network pass-through or control at the remote display location. The module is HDCP compliant and designed for installations where displays are located far from the processor. Compatible with CORIOmaster C3-540 and CORIOmaster mini C3-510 chassis (sold separately).

Product Description

The CM-HDBT-SC-2OUT-1ETH installs in any available I/O bay of a CORIOmaster or CORIOmaster mini chassis and provides two HDBaseT outputs, each with hardware scaling. HDBaseT allows high-definition video and audio to be transmitted over standard Cat5e/Cat6 cabling to remote displays, eliminating the need for HDMI cable runs to distant screens. This makes the module well-suited for installations where screens are mounted far from the processor — such as lobby displays, large auditorium configurations, or distributed training rooms. The integrated Ethernet port provides network connectivity at the remote end through the HDBaseT link, supporting control system access or display network connections at the screen location without running separate data cabling. Both outputs include hardware scaling, so source content is scaled to the target display resolution in real time. The module is HDCP compliant, supporting protected content distribution through the HDBaseT link. It draws power from the chassis and requires no external power supply. HDBaseT receivers (transmitters are not included with this module) are required at the remote display end.

Key Features

• Dual HDBaseT Outputs with Scaling — Two independent HDBaseT outputs, each with hardware scaling, drive remote displays over Cat5e/Cat6 cabling.
• Integrated Ethernet Port — Built-in Ethernet connectivity passes network access to the remote display location through the HDBaseT link, reducing cabling infrastructure requirements.
• HDCP Compliant — Supports protected content playback through the HDBaseT link, meeting requirements for HDCP-protected sources.
• Long-Distance Signal Delivery — HDBaseT extends video and audio over standard structured cabling to screens located far from the processor without signal degradation.
• Tool-Free Installation — Slides into any CORIOmaster I/O bay without tools, simplifying on-site installation.
• Chassis-Powered — All power drawn from the CORIOmaster chassis; no external supply required.

Typical Applications

• Boardroom — distributed display systems with screens mounted at distance from the processor
• Conference room — HDBaseT-connected displays in adjacent rooms or separate zones
• Auditorium — long-run video distribution to stage screens or upper-level displays
• House of worship — distributed video to overflow rooms and lobby displays over Cat cabling
• Government space — structured-cabling-based distribution to multiple display locations
• Training room — distributed display feeds to screens at multiple classroom positions
