tvONE CM-HDBT-2IN-1ETH – Dual HDBaseT 4K Input Module for CORIOmaster

Product Overview

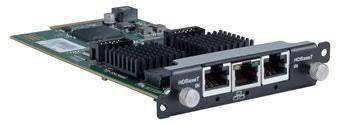

The tvONE CM-HDBT-2IN-1ETH is a dual HDBaseT input module for CORIOmaster video wall processors. It accepts two HDBaseT input signals at resolutions up to 4K60 from transmitters located up to 150 meters away, transmitting uncompressed high-resolution video and audio over standard Cat cabling. The module includes an Ethernet port for network pass-through from remote transmitter locations. Compatible with the CORIOmaster C3-540, CORIOmaster mini C3-510, and CORIOmaster micro chassis.

Product Description

The CM-HDBT-2IN-1ETH installs in any available I/O bay of a compatible CORIOmaster chassis and receives two HDBaseT input signals from remote transmitters. HDBaseT delivers uncompressed, high-resolution video and audio over Cat5e or Cat6 cabling, supporting resolutions up to 4K60 from transmitters at distances up to 150 meters (approximately 492 feet). This eliminates the need for HDMI cable runs from distant source locations to the processor. The module supports transmitters operating in HDBaseT, HDBaseT-Lite, and HDBaseT-Extended modes, providing compatibility with a wide range of installed HDBaseT transmitters and switchers. An Ethernet port on the module passes network connectivity from remote transmitter locations to the chassis network, enabling control and data connectivity at the source without additional cabling infrastructure. The module supports uncompressed 4K content, making it appropriate for demanding video wall applications including live event feeds, broadcast monitor walls, and high-resolution presentation environments. Compatible chassis include the CORIOmaster C3-540, CORIOmaster mini C3-510, and CORIOmaster micro. The chassis is sold separately; transmitters are also sold separately and must be HDBaseT-compatible.

Key Features

• Dual HDBaseT Inputs up to 4K60 — Two HDBaseT inputs accept resolutions up to 4K60, delivering high-resolution content from remote transmitters into the CORIOmaster signal chain.
• 150-Meter Transmission Range — HDBaseT supports transmitter distances up to 150 meters over Cat5e/Cat6 cabling, removing constraints on source-to-processor distances.
• Uncompressed Video — Transmits uncompressed video and audio over the HDBaseT link, preserving signal quality end to end.
• HDBaseT-Lite and Extended Mode Support — Compatible with transmitters in HDBaseT, HDBaseT-Lite, and HDBaseT-Extended modes, covering a wide range of installed transmitter hardware.
• Ethernet Pass-Through — Integrated Ethernet port passes network connectivity from the remote transmitter location to the chassis, supporting control system or device connectivity at the source.
• Tool-Free Installation — Slides into any compatible CORIOmaster I/O bay without tools, simplifying installation and replacement.

Typical Applications

• Boardroom — long-distance input from source rooms or adjacent spaces over Cat cabling
• Conference room — HDBaseT input from AV equipment located outside the display area
• Broadcast studio — high-resolution 4K HDBaseT input for monitor wall and production feeds
• Auditorium — stage or booth source signals received over long Cat cable runs
• House of worship — distributed source inputs from multiple locations throughout the building
• Government space — secure long-distance input from source locations over structured cabling
