tvONE CM-DVIU-X-2IN – CORIOmatrix Dual DVI-U Multi-Format Input Module
Product Overview

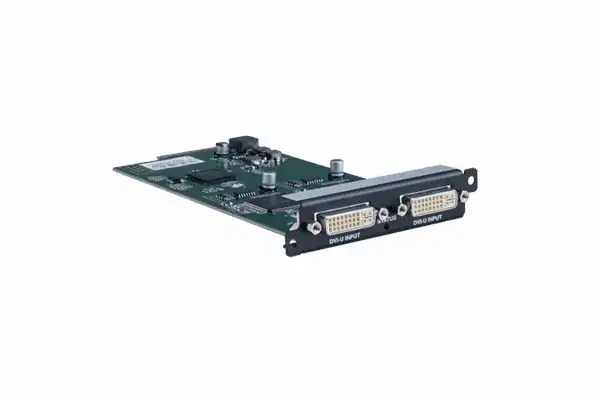

The tvONE CM-DVIU-X-2IN is a dual-port DVI-U multi-format input module for tvONE CORIOmatrix video routing and processing chassis. Each DVI-U connector accepts DVI digital, HDMI, RGB/YPbPr component, YC (S-Video), and composite video signals via the single DVI-I connector, making it a highly flexible input module for mixed-format AV installations. The module is fully HDCP compliant and installs into CORIOmatrix input slots, providing two versatile multi-format inputs per slot.
Product Description
The CM-DVIU-X-2IN uses DVI-U (Universal DVI) connectors, which are physically identical to DVI-I connectors but accept a broader range of signal types: DVI-D digital, DVI-A analog, HDMI (via adapter), RGB/YPbPr component analog, YC (S-Video), and composite video. This makes the module appropriate for installations where a CORIOmatrix system must accept diverse input formats without requiring separate input modules for each signal type. The HDCP compliance of both inputs ensures compatibility with content-protected HDMI sources such as media players, Blu-ray, and protected presentation sources. Each connector's signal type is detected and processed within the CORIOmatrix routing fabric. The module installs into CORIOmatrix input slots and is managed through the CORIOmatrix control interface. Adapters may be required for non-DVI source connectors. The CORIOmatrix chassis is sold separately.
Key Features
- Dual DVI-U Inputs — Two DVI-I connectors each accepting DVI-D, DVI-A, HDMI (via adapter), RGB/YPbPr, YC, and composite signals — six signal types per input in a single module slot.
- HDCP Compliance — Full HDCP compliance on both inputs ensures compatibility with content-protected HDMI sources from media players, Blu-ray, and protected presentation devices.
- Mixed-Format Flexibility — Accepts both digital (DVI, HDMI) and analog (component, S-Video, composite) signals on the same connector, reducing the number of input module types needed in mixed-format systems.
- CORIOmatrix Integration — Installs into CORIOmatrix input slots; managed through the standard CORIOmatrix control interface alongside all other installed modules.
- Field-Installable — Can be installed into available CORIOmatrix input slots without factory service.
Typical Applications
- Corporate AV systems routing mixed HDMI, DVI, and analog sources through CORIOmatrix
- Conference centers with diverse presentation source types requiring a single input module solution
- Broadcasting facilities routing multi-format sources into CORIOmatrix for processing and distribution
- Universities and training facilities with legacy analog and modern digital sources on the same CORIOmatrix system
- House of worship AV systems integrating multiple source types into a single CORIOmatrix input slot
Technical Specifications
| Specification | Value |
|---|---|
| Module Type | Input Module |
| Input Ports | 2x DVI-U via DVI-I connector |
| Accepted Signal Types | DVI (DVI-D digital, DVI-A analog), HDMI, RGB/YPbPr, YC (S-Video), Composite Video |
| HDCP Compliance | Yes (both inputs) |
| Compatible Chassis | tvONE CORIOmatrix (sold separately) |
| Installation | Field-installable into CORIOmatrix input slot |
| Note | Adapters required for non-DVI connector types (HDMI, VGA, component, composite) |
Frequently Asked Questions
Can the CM-DVIU-X-2IN accept HDMI sources directly?
HDMI sources connect to the DVI-U input via a standard DVI-to-HDMI adapter cable. The DVI-U connector is HDCP compliant, so protected HDMI content passes correctly through the CORIOmatrix system.
Does the module accept composite and S-Video analog signals?
Yes. DVI-U accepts composite video and YC (S-Video) signals in addition to DVI and component analog. Appropriate breakout adapters are required to connect composite or S-Video sources to the DVI-I connector.
Is the CM-DVIU-X-2IN compatible with CORIOmaster?
No. This module is designed for CORIOmatrix chassis only. It is not compatible with CORIOmaster or CORIOmaster mini. Contact Creation Networks at creationnetworks.net to confirm the correct module for your chassis.
What adapters are required for non-DVI sources?
HDMI sources require a DVI-to-HDMI adapter cable. VGA/component analog sources require an HD-15-to-DVI-A adapter. Composite and S-Video sources require appropriate breakout adapters. Adapters are not included with the module.
How many CM-DVIU-X-2IN modules can be installed in a CORIOmatrix chassis?
The number depends on the chassis size and available input slots. Each module provides two inputs per slot. Contact Creation Networks for chassis slot planning and system design support.
What warranty applies to this module?
tvONE modules are covered by the standard manufacturer warranty. Contact Creation Networks for current warranty terms and support options.
