tvONE CM-DVIU-2IN – Universal DVI Input Module for CORIOmaster

Product Overview

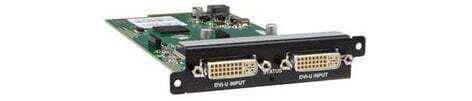

The tvONE CM-DVIU-2IN is a 2-port Universal DVI input module for CORIOmaster and CORIOmaster mini video wall processors. It accepts five signal formats per input — DVI, HDMI, RGB/YPbPr, YC, and composite video — through DVI-I connectors, providing broad source compatibility from a single module bay. The module is HDCP compliant. Compatible with CORIOmaster C3-540 and CORIOmaster mini C3-510 chassis (sold separately).

Product Description

The CM-DVIU-2IN installs in any available I/O bay of a CORIOmaster or CORIOmaster mini chassis and provides two DVI-I inputs, each supporting five signal formats: DVI, HDMI, RGB/YPbPr, YC (S-Video), and composite video (CV). This multi-format capability makes the module suitable for environments with mixed legacy and current source equipment. A single module bay can accept inputs from sources as varied as HDMI cameras, DVI workstations, component video players, S-Video sources, and composite video devices. The DVI-I connector physically accommodates DVI and, with appropriate adapters, HDMI and analog signal types. HDCP compliance ensures protected digital content from HDMI or DVI sources is accepted without triggering content protection errors. This module is particularly valuable in retrofit or mixed-generation AV environments where source equipment spans multiple technology generations. The CORIOmaster software handles format detection and signal routing for all supported input types. The module draws all power from the chassis, requires no external supply, and installs tool-free in any available I/O bay. No inputs are included on the chassis itself; all inputs must be provided through installed modules.

Key Features

• Dual DVI-I Universal Inputs — Two DVI-I inputs each accept DVI, HDMI, RGB/YPbPr, YC, and composite video signals from a wide variety of source devices.
• Five Signal Formats per Input — Support for DVI, HDMI, RGB/YPbPr, YC, and CV on each input reduces the number of modules required in mixed-source environments.
• HDCP Compliant — Accepts HDCP-protected content from HDMI and DVI sources, meeting content protection requirements for digital inputs.
• Legacy and Modern Source Compatibility — Accepts signals from legacy analog sources (composite, S-Video, component) as well as current digital sources (DVI, HDMI) in the same module.
• Tool-Free Installation — Slides into any CORIOmaster I/O bay without tools, simplifying installation and replacement in the field.
• Chassis-Powered — Draws all power from the CORIOmaster chassis; no external power supply required.

Typical Applications

• Boardroom — mixed-source input from laptops, cameras, and legacy presentation equipment
• Conference room — multi-format input for rooms with varied device types
• Broadcast studio — legacy analog and digital source input for monitor walls
• House of worship — mixed input from cameras, computers, and legacy video equipment
• Training room — multi-format input for instructional environments with varied source equipment
• Government space — mixed-generation source input in established AV installations

Technical Specifications

Frequently Asked Questions
