Product Overview

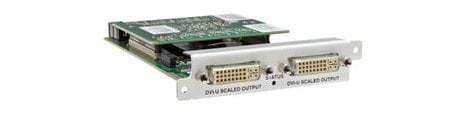

The tvONE CM-DVI-I-SC-2OUT is a 2-port DVI-I scaled output module for CORIOmaster and CORIOmaster mini video wall processors. It provides two DVI-I outputs with hardware scaling per output and is HDCP compliant. This module is suited for video wall systems driving DVI-equipped displays and projectors. Compatible with CORIOmaster C3-540 and CORIOmaster mini C3-510 chassis (sold separately).
Product Description
The CM-DVI-I-SC-2OUT installs in any available I/O bay of a CORIOmaster or CORIOmaster mini chassis and provides two DVI-I outputs, each with independent hardware scaling. DVI-I connectors carry both digital (DVI-D) and analog (DVI-A) signals, making this module compatible with a wider range of legacy and current displays and projectors than DVI-D-only alternatives. Each output scales source content from any supported resolution to match the native resolution of the connected display, handled entirely in hardware without impacting processor performance. The module is HDCP compliant, supporting protected content distribution on DVI digital outputs. This makes it appropriate for installations that include HDCP-protected sources such as Blu-ray, cable, or streaming inputs. The module installs tool-free into any CORIOmaster I/O bay and draws all power from the chassis. No external power supply is required. For installations where displays use DVI connections — common in older conference rooms, training facilities, and fixed-installation projector rigs — this module provides a direct integration path without adapters or converter boxes.
Key Features
- Dual DVI-I Outputs — Two DVI-I outputs support both digital and analog DVI devices, providing compatibility with a wide range of displays and projectors.
- Per-Output Hardware Scaling — Independent scaling on each output drives displays at their native resolution regardless of source resolution.
- HDCP Compliant — Supports HDCP-protected content on DVI digital outputs, meeting requirements for protected source playback.
- Tool-Free Installation — Slides into any CORIOmaster I/O bay without tools, simplifying installation in the field.
- Chassis-Powered — All power supplied by the CORIOmaster chassis; no external PSU required.
- Legacy Display Compatibility — DVI-I connector supports older DVI-equipped displays and projectors common in installed AV environments.
Typical Applications
- Conference room — video wall outputs to DVI-connected projectors or display panels
- Training room — DVI output to fixed projectors or legacy display panels
- Boardroom — scaled DVI output to presentation displays in DVI-equipped rooms
- Auditorium — DVI-connected projector feeds from CORIOmaster video wall processor
- Government space — fixed installations with DVI-equipped display infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| SKU | CM-DVI-I-SC-2OUT |
| Output Connectors | 2x DVI-I |
| Signal Type | DVI-D (digital) and DVI-A (analog) |
| Output Scaling | Yes — per output |
| HDCP Compliance | Yes |
| Compatible Chassis | CORIOmaster C3-540, CORIOmaster mini C3-510 |
| Power | Supplied by chassis |
| Installation | Tool-free, slides into I/O bay |
Frequently Asked Questions
Which CORIOmaster chassis is the CM-DVI-I-SC-2OUT compatible with?
This module is compatible with the CORIOmaster C3-540 and the CORIOmaster mini C3-510. Both chassis are sold separately. Contact Creation Networks to confirm compatibility with CORIOmaster2 CM2-547.
What is the difference between DVI-I and DVI-D?
DVI-I carries both digital and analog signals, while DVI-D carries only digital. The DVI-I connector is physically compatible with DVI-D cables and adapters, giving this module broader compatibility with legacy and current display equipment.
Does this module support HDCP?
Yes. The CM-DVI-I-SC-2OUT is HDCP compliant on its digital DVI output, supporting protected content from HDCP sources such as Blu-ray or cable inputs.
Can DVI-I be adapted to HDMI?
Yes. DVI-D digital outputs are electrically compatible with HDMI and can be adapted using a DVI-to-HDMI adapter or cable. Audio is not carried over DVI; adapters pass video only.
How many CM-DVI-I-SC-2OUT modules can be installed in a single chassis?
The CORIOmaster C3-540 has 14 I/O bays. You can populate multiple bays with output modules alongside input modules based on your required I/O configuration.
Do both outputs scale independently?
Yes. Each DVI-I output has independent hardware scaling, so each connected display can be driven at its own native resolution.
What is the warranty on this module?
tvONE products carry a standard manufacturer warranty. Contact Creation Networks at creationnetworks.net for current warranty details and support.
