tvONE CM-DVI-I-MON-2OUT – CORIOmatrix Dual DVI-I Monitoring Output Module
tvONE CM-DVI-I-MON-2OUT – CORIOmatrix Dual DVI-I Monitoring Output Module is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
tvONE CM-DVI-I-MON-2OUT – CORIOmatrix Dual DVI-I Monitoring Output ...
Product Overview

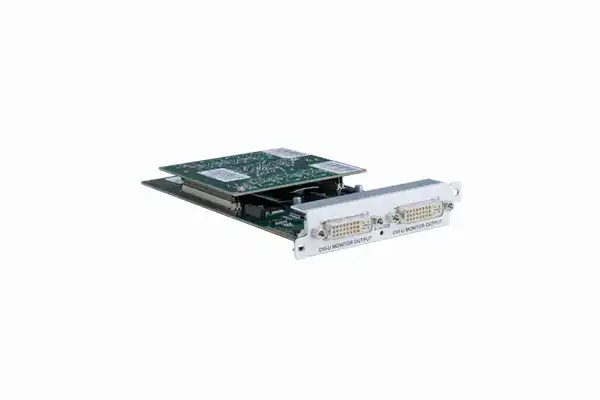

The tvONE CM-DVI-I-MON-2OUT is a two-port unscaled DVI-I monitoring output module designed for installation in tvONE CORIOmatrix video routing and processing chassis. It provides two DVI-I connector outputs for monitoring purposes, passing signals directly without scaling, making it suitable for confidence monitoring, operator workstations, and diagnostic displays that require a direct feed from the CORIOmatrix signal path. The module is sold packaged and is installed into an available CORIOmatrix output slot (chassis sold separately).
Product Description
The CM-DVI-I-MON-2OUT adds two DVI-I monitoring outputs to a CORIOmatrix system, allowing operators to view signal content directly from the matrix fabric without routing through a scaled program output. This is particularly useful in broadcast master control and operations centers where engineers need direct, unprocessed views of routed signals for quality checking, fault isolation, or operator confidence monitoring. The DVI-I connector format supports both DVI-D digital and DVI-A analog signals, providing compatibility with DVI and HDMI monitors via passive adapters. As a monitoring-specific module, the outputs do not apply any scaling or processing to the signal — the signal passes through at its native resolution. This makes the module appropriate for side-by-side monitoring walls where technical staff need to verify source integrity before program distribution. The module installs into CORIOmatrix output slots and is managed through the CORIOmatrix system's control interface, consistent with other installed modules.
Key Features
- Dual DVI-I Monitoring Outputs — Two DVI-I connectors provide direct, unscaled monitoring outputs from the CORIOmatrix signal path for operator confidence and quality checking.
- Unscaled Pass-Through — Signals pass at native resolution without scaling or processing, ensuring technical staff view the signal exactly as routed in the matrix.
- DVI-I Connector Compatibility — DVI-I connectors support both DVI-D digital and DVI-A analog signals; compatible with DVI and HDMI monitors via standard passive adapters.
- CORIOmatrix Integration — Designed specifically for CORIOmatrix chassis output slots; managed through the CORIOmatrix control system alongside all other installed modules.
- Packaged Module — Ships as a complete packaged assembly ready for installation into an available CORIOmatrix output slot.
Typical Applications
- Broadcast master control rooms requiring direct signal monitoring from CORIOmatrix routing
- Operations centers and NOCs with confidence monitoring displays for routed sources
- AV integration facilities requiring direct diagnostic access to CORIOmatrix signal paths
- Corporate command centers with dedicated operator monitoring workstations
- Broadcast production facilities monitoring multiple program sources before distribution
Technical Specifications
| Specification | Value |
|---|---|
| Module Type | Output Module (Monitoring, unscaled) |
| Output Ports | 2x DVI-I |
| Signal Processing | Pass-through (no scaling) |
| Connector Type | DVI-I (supports DVI-D digital and DVI-A analog) |
| Compatible Chassis | tvONE CORIOmatrix (sold separately) |
| Packaging | Packaged module |
| Installation | Field-installable into CORIOmatrix output slot |
Frequently Asked Questions
Is the CM-DVI-I-MON-2OUT a scaled or unscaled output?
It is an unscaled monitoring output. Signals pass through at their native resolution without any scaling or processing. For scaled DVI outputs from CORIOmatrix, a different output module with integrated scaling is required.
Which CORIOmatrix chassis is this module compatible with?
The module is designed for tvONE CORIOmatrix chassis. It is not compatible with CORIOmaster or CORIOmaster mini chassis. Contact Creation Networks at creationnetworks.net to confirm chassis compatibility before ordering.
Can DVI-I outputs connect to HDMI monitors?
Yes. A passive DVI-D-to-HDMI adapter cable connects the DVI-I output to an HDMI monitor input. Active adapters are not required for DVI-to-HDMI conversion with monitors that accept DVI-compatible HDMI.
How many monitoring outputs can a CORIOmatrix chassis support?
The number of monitoring outputs depends on the number of available output slots in the CORIOmatrix chassis and the mix of output modules installed. Each CM-DVI-I-MON-2OUT adds two monitoring outputs per slot. Contact Creation Networks for chassis slot planning.
Is this module managed through the same CORIOmatrix interface as other modules?
Yes. The CM-DVI-I-MON-2OUT is managed through the CORIOmatrix system's standard control interface, consistent with all other installed input and output modules.
What warranty applies to CORIOmatrix modules?
tvONE modules are covered by the standard manufacturer warranty. Contact Creation Networks for current warranty terms and support options.
