Product Overview

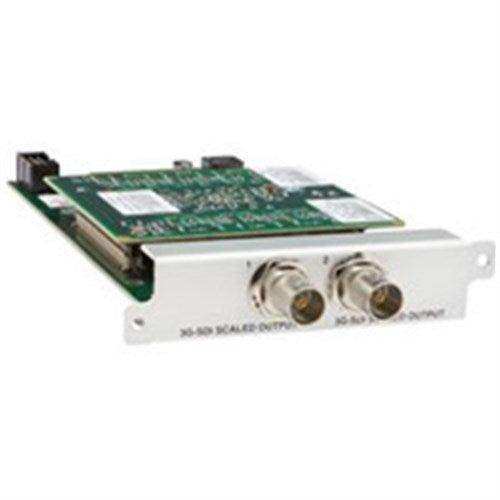

The tvONE CM-3GSDI-XSC-2OUT is a two-port 3G/HD/SD-SDI output module with integrated CORIO2 scaling, designed for installation in tvONE CORIOmatrix chassis. It provides two BNC-terminated SDI outputs with onboard scaling, allowing the CORIOmatrix system to drive SDI displays and broadcast infrastructure at the correct format without requiring external SDI-to-SDI converters in the signal chain. The module is HDCP compliant and is sold separately from the CORIOmatrix chassis.
Product Description
The CM-3GSDI-XSC-2OUT installs into an available CORIOmatrix output slot and adds two 3G/HD/SD-SDI BNC outputs with per-output CORIO2 scaling capability. The integrated scaling engine converts the CORIOmatrix's routed signal to the SDI resolution required by each connected endpoint, supporting mixed-standard facilities where different SDI displays or downstream devices operate at different resolutions. This eliminates the need for separate SDI scalers between the CORIOmatrix and the connected SDI equipment. Full-size BNC connectors provide professional, locking connectivity for broadcast-standard cable infrastructure. The module maintains HDCP compliance throughout the signal path from source to output. As a field-installable module, it expands CORIOmatrix SDI output capability within an existing chassis without chassis replacement. Compatible with tvONE CORIOmatrix; not compatible with CORIOmaster or CORIOmaster mini chassis (the CORIOmaster equivalent is the CM-3GSDI-SC-2OUT).
Key Features
- Dual 3G/HD/SD-SDI BNC Outputs — Two independent BNC outputs carry SD-SDI, HD-SDI, or 3G-SDI signals, connecting directly to SDI monitors, routers, and distribution equipment.
- Integrated CORIO2 Output Scaling — Onboard CORIO2 scaler converts each output to the required SDI format and resolution independently, eliminating the need for downstream SDI-to-SDI format converters.
- CORIOmatrix Compatible — Designed specifically for tvONE CORIOmatrix chassis output slots (chassis sold separately); not compatible with CORIOmaster chassis.
- HDCP Compliance — Maintains content protection from source through the CORIOmatrix signal path to SDI output.
- Broadcast-Grade BNC Connectors — Full-size BNC terminations provide reliable, locking connections suited to professional SDI cable runs.
- Field-Installable — Installs directly into available CORIOmatrix output slots, allowing SDI output capability to be added to an existing deployed system.
Typical Applications
- Broadcast studios routing CORIOmatrix outputs to SDI monitors and confidence displays
- Live event production requiring SDI output from CORIOmatrix routing systems
- Television facilities with mixed SDI infrastructure feeding displays from CORIOmatrix
- Operations centers connecting CORIOmatrix to SDI distribution routers or multiviewers
- House of worship broadcast production connecting CORIOmatrix to SDI recording equipment
Technical Specifications
| Specification | Value |
|---|---|
| Module Type | Output Module with CORIO2 Scaling |
| Output Ports | 2x 3G/HD/SD-SDI via BNC |
| SDI Standards | SD-SDI (SMPTE 259M), HD-SDI (SMPTE 292M), 3G-SDI (SMPTE 424M) |
| Scaling | Integrated CORIO2 output scaling per port |
| HDCP Compliance | Yes |
| Connector Type | BNC (full-size) |
| Compatible Chassis | tvONE CORIOmatrix (sold separately) |
| Installation | Field-installable into CORIOmatrix output slot |
Frequently Asked Questions
What is the difference between CM-3GSDI-XSC-2OUT and CM-3GSDI-SC-2OUT?
The CM-3GSDI-XSC-2OUT is designed for CORIOmatrix chassis, while the CM-3GSDI-SC-2OUT is designed for CORIOmaster/mini chassis. Both provide dual 3G-SDI scaled outputs but are platform-specific and are not interchangeable between chassis families.
Can the two SDI outputs be configured for different resolutions?
Yes. The integrated CORIO2 scaling allows each of the two BNC outputs to be independently configured for different SDI formats or resolutions, supporting mixed-standard SDI environments within the same CORIOmatrix chassis.
Is this module compatible with CORIOmaster mini?
No. The CM-3GSDI-XSC-2OUT is designed exclusively for CORIOmatrix chassis. For CORIOmaster or CORIOmaster mini, use the CM-3GSDI-SC-2OUT. Contact Creation Networks at creationnetworks.net to confirm the correct module for your chassis.
Does the module support 3G-SDI at 1080p60?
Yes. The module supports 3G-SDI per SMPTE 424M, which covers 1080p at 60/59.94 Hz among other 3G-SDI formats.
Is the module field-installable or does it require factory installation?
The CM-3GSDI-XSC-2OUT is field-installable and can be installed into available CORIOmatrix output slots without specialized tools or factory service.
What warranty applies to this module?
tvONE modules are covered by the standard manufacturer warranty. Contact Creation Networks for current warranty terms and support options.
