tvONE CM-3GSDI-SC-2OUT – CORIOmaster Dual 3G-SDI Scaled Output Module
Product Overview

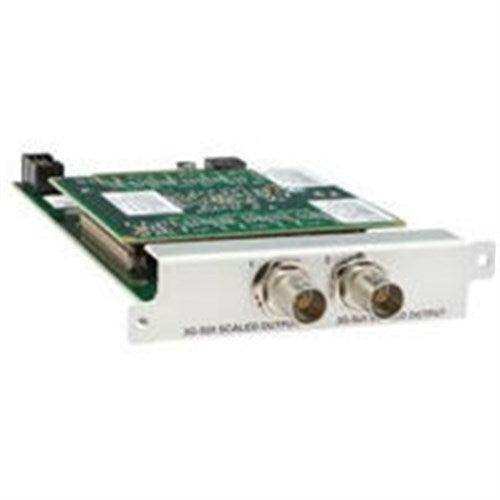

The tvONE CM-3GSDI-SC-2OUT is a two-port 3G/HD/SD-SDI scaled output module for tvONE CORIOmaster and CORIOmaster mini video wall processor chassis. It installs directly into a CORIOmaster output slot and provides two BNC-terminated SDI outputs with integrated output scaling, enabling the CORIOmaster system to drive SDI monitors, broadcast displays, and SDI-connected video infrastructure without external conversion hardware. The module is HDCP compliant and is sold separately from the CORIOmaster chassis.
Product Description
The CM-3GSDI-SC-2OUT slots into the CORIOmaster or CORIOmaster mini chassis output bays, adding two 3G/HD/SD-SDI BNC outputs with onboard CORIO2 scaling. Each output can be independently driven at a different SDI resolution, making the module appropriate for mixed-standard facilities that need to feed both HD-SDI and 3G-SDI displays from the same video wall processor. The integrated scaler handles up, down, and cross conversion, so the CORIOmaster's processed output is scaled to the exact format required by each connected SDI endpoint. This eliminates the need for downstream SDI-to-SDI scalers or format converters in the signal chain. The BNC connectors provide secure, professional-grade connections suited for broadcast-standard cable runs. The module is HDCP compliant throughout the signal path, making it compatible with content-protected sources routed through the CORIOmaster system. As a field-installable output module, it expands an existing CORIOmaster deployment's SDI output capability without requiring chassis replacement.
Key Features
- Dual 3G/HD/SD-SDI BNC Outputs — Two independent BNC outputs carry SD-SDI, HD-SDI, or 3G-SDI signals at up to 1080p, connecting directly to SDI monitors, routers, and distribution equipment.
- Integrated Output Scaling — Onboard CORIO2 scaling converts the CORIOmaster's output to the exact SDI resolution required by each connected display, removing the need for external format converters.
- CORIOmaster and CORIOmaster Mini Compatible — Designed specifically for tvONE CORIOmaster and CORIOmaster mini chassis output slots (chassis sold separately).
- HDCP Compliance — Maintains content protection through the signal path from source input to SDI output.
- Broadcast-Grade BNC Connectors — Full-size BNC terminations provide reliable, locking connections for professional SDI cable infrastructure.
- Field-Installable — Installs directly into available CORIOmaster output slots without specialized tools, allowing SDI output capability to be added to an existing system.
Typical Applications
- Broadcast studios requiring SDI outputs from CORIOmaster video wall processors
- Live event production facilities feeding SDI broadcast monitors or confidence displays
- House of worship facilities with SDI camera infrastructure extending to video wall outputs
- Command and control centers connecting CORIOmaster to SDI distribution routers
- Post-production facilities requiring SDI-format output from multi-source video wall systems
Technical Specifications
| Specification | Value |
|---|---|
| Module Type | Output Module with Scaling |
| Output Ports | 2x 3G/HD/SD-SDI via BNC |
| SDI Standards | SD-SDI (SMPTE 259M), HD-SDI (SMPTE 292M), 3G-SDI (SMPTE 424M) |
| Scaling | Integrated CORIO2 output scaling |
| HDCP Compliance | Yes |
| Connector Type | BNC (full-size) |
| Compatible Chassis | tvONE CORIOmaster, CORIOmaster mini (sold separately) |
| Installation | Field-installable into output slot |
Frequently Asked Questions
Is the CM-3GSDI-SC-2OUT compatible with CORIOmaster mini?
Yes. The module is designed for use in both CORIOmaster and CORIOmaster mini chassis. Verify available output slot count in your chassis configuration before ordering. The CORIOmaster chassis is sold separately.
What is the difference between CM-3GSDI-SC-2OUT and CM-3GSDI-XSC-2OUT?
The CM-3GSDI-SC-2OUT is designed for CORIOmaster/mini chassis, while the CM-3GSDI-XSC-2OUT is designed for CORIOmatrix chassis. Both provide dual 3G-SDI outputs with scaling, but they are not interchangeable between chassis platforms.
Can each of the two SDI outputs operate at a different resolution?
Yes. The integrated output scaling allows each BNC output to be configured independently for different SDI formats or resolutions, supporting mixed-standard environments within the same chassis.
Does the module support 3G-SDI Level A and Level B?
The module supports 3G-SDI per SMPTE 424M. Confirm specific Level A/B requirements with Creation Networks at creationnetworks.net for your application.
Does scaling affect output latency?
The CORIO2 scaling engine introduces minimal latency comparable to other CORIOmaster output modules. The exact latency depends on the source resolution and target output format configured in the CORIOmaster system.
What warranty applies to CORIOmaster modules?
tvONE modules are covered by the standard manufacturer warranty. Contact Creation Networks for current warranty terms and support options.
