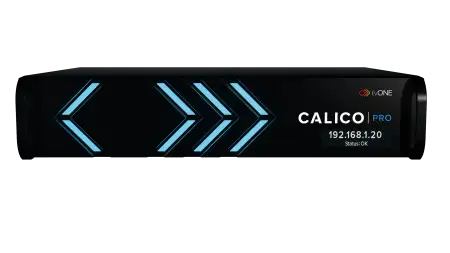

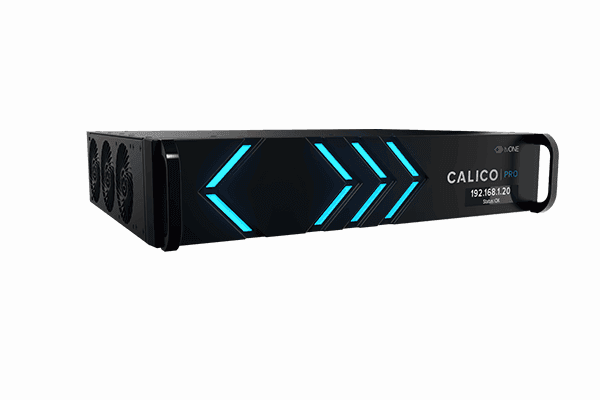

tvONE C7-PRO-2200 CALICO PRO – 2RU 4K Video Wall Processor

Product Overview

The tvONE CALICO PRO C7-PRO-2200 is a commercial-grade 2RU video wall processor built on tvONE's fifth-generation 4K/8K, 10-bit processing engine, purpose-built for direct view LED walls, multi-projector edge blends, and large-scale display installations. As the flagship 4K video wall processor in the CALICO PRO line, it ships standard with eight HDMI 2.0 inputs and four HDMI 2.0 outputs, all capable of 4K60, 10-bit, 4:4:4, and HDR. Additional I/O expansion modules cover IP, broadcast SDI, and media playback workflows for AV integrators who need end-to-end 4:4:4 signal integrity at scale. The C7-PRO-2200 supports up to 33 million pixels across four outputs, making it a practical choice for high-pixel-count LED installations and multi-screen commercial AV deployments.

Product Description

The CALICO PRO 2200 delivers uncompressed, end-to-end 4K60 video processing with imperceptible latency — a requirement for real-time control room display systems, live events, and broadcast-adjacent commercial AV environments. Its modular I/O architecture means AV system designers can start with the base eight-input, four-output configuration and expand using optional modules for 12G-SDI, quad 4K HDMI, HDBaseT, and dual 4K streaming/media playback, adapting the processor to project-specific signal requirements without replacing the chassis. The CALICO inside fifth-generation engine handles end-to-end 4:4:4 processing with full HDR/SDR conversion across multiple standards, delivering accurate color reproduction for graphics, broadcast sources, IP streams, and still images up to 8K native resolution. The onboard still image store, input/output cropping, luminance keying, and dynamic labeling engine reduce the need for additional processing hardware in complex AV racks.

Control is handled through CALICO Studio — tvONE's intuitive design and layout software — with a real-time REST API available for custom control system integration. Third-party control plug-ins are available for popular platforms, and HTTPS-secured communication protects mission-critical installations. The Any Output Anywhere architecture provides full independence across all outputs, and Canvas Watch allows operators to monitor large LED walls or edge-blended projection systems from a single view. Optional dual hot-swappable redundant power supplies support 24/7 commercial deployment requirements. TAA-compliant for government and federally funded projects.

Key Features

• Fifth-Generation CALICO Processing Engine — Proprietary 10-bit FPGA processing delivers 4K60 4:4:4 video with imperceptible latency across all outputs simultaneously.

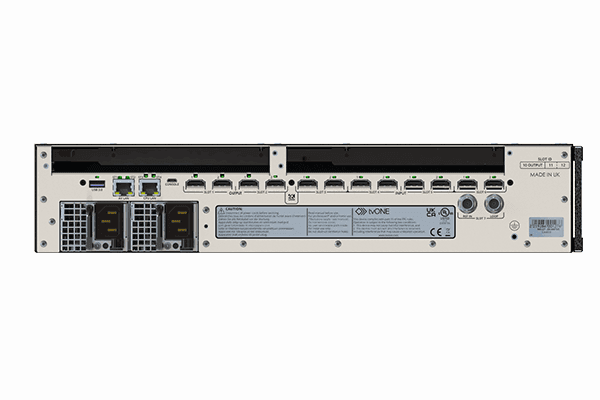

• Standard 8-In / 4-Out HDMI 2.0 Configuration — Ships with eight 4K60 HDMI 2.0 inputs and four 4K60 HDMI 2.0 outputs; expands via optional I/O modules for larger systems.
• Up to 33 Million Pixels Across Four Outputs — Drives high-pixel-count direct view LED walls and multi-display commercial AV installations from a single 2RU chassis.
• End-to-End 4:4:4 Color Processing — Full-quality conversion between 4:2:0, 4:2:2, and 4:4:4 color spaces preserves source fidelity from input to output.
• HDR and 30-Bit True Color Support — Handles HDR/SDR conversion across multiple standards with 30-bit True Color for LED wall applications requiring precise color accuracy.
• Modular I/O Expansion — Optional modules add 12G-SDI, quad 4K HDMI, HDBaseT, IP decode, and media playback to address broadcast, AV, and IP source workflows.
• Source Link for 8K Quad-4K Workflows — Lock multiple 4K sources together for synchronized 8K signal management and simplified control in large-format display systems.
• Advanced LED Tools — Custom resolution support, unlimited output cropping, and Packaged Outputs simplify direct view LED mapping and multi-screen deployment.
• Any Output Anywhere Architecture — All outputs operate independently, enabling flexible layout design across LED walls, projector arrays, and display grids.
• CALICO Studio Control Software — Intuitive design interface with real-time REST API, mobile app support, and third-party control system integration for Crestron, AMX, and others.
• HTTPS-Secured Communication — AES-encrypted network control protects mission-critical AV installations in government, corporate, and broadcast environments.
• Optional Dual Redundant PSUs — Hot-swappable power supply option supports 24/7 commercial-grade uptime requirements.
• 5-Year Warranty / TAA Compliant — Backed by tvONE's 5-year warranty and compliant with Trade Agreements Act requirements for government procurement.

Typical Applications

• Government space and emergency operations centers
• Boardroom and executive briefing center video walls
• Broadcast studio and live event production
• Auditorium and large-format multi-screen installations
• House of worship LED wall systems
• Commercial meeting space and all-hands room displays
