tvONE C3-310 Universal DVI CORIOmatrix Input Module With 2 DVI Inputs and 5 Open Slots

tvONESKU: C3-310
No reviews

Price:
Sale price$3,895.00

Description

Spec Sheet

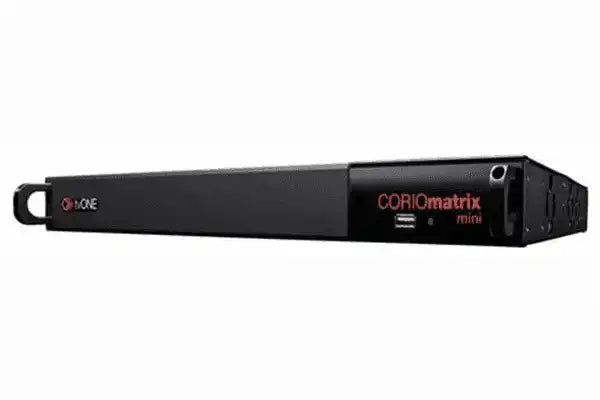

The single rack unit C3-310 is a video scaling matrix router that comes with a pair of DVI inputs and five open card slots that can be configured to fit your required needs. Available I/O modules include DVI, universal DVI, HDBaseT, and 3G/HD/SD-SDI to cover virtually any production application. Additional I/O modules must be purchased separately.

The CORIOmatrix mini multi-format 4K matrix router is ideal for situations where integration of mixed AV, broadcast, IP, and legacy sources is needed as it can handle standard SDI and 4K HDMI, DVI, and H.264/H.265 IP feeds.

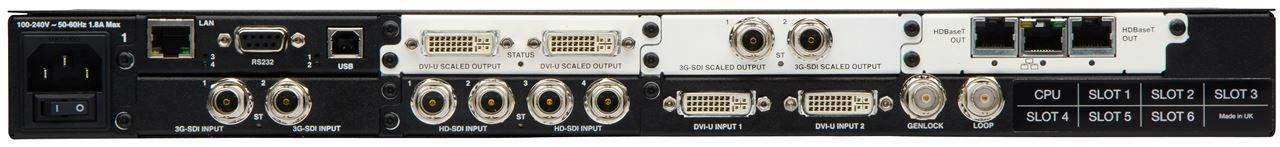

Note: Unit ships with 2 DVI inputs, additional input modules must be ordered separately.

Features:

  • More than just a AV matrix switch
  • Flex i/o: unparalleled flexibility and freedom when dealing with mixed any AV format
  • Modular design (16 slots)
  • Huge variety format support with 12+ modules types
  • Low latency format conversion
  • Ultra-fast and clean switching
  • Video monitoring preview available through optional monitoring output module
  • Integral Audio Routing
  • Audio de-embed/embed for SDI and DVI/HDMI
  • Control: RS-232, TCP/IP, and WebUI
  • Command Line Interface - Third Party Control
  • Coming soon: IP streaming integration & local 4K playback
  • 4RU Frame Size
  • HDCP compliant
  • Custom input/output resolution support
  • Monitor Standby mode

Specifications:

  • Computer Input
    • Digital DVI: Up to 30 via Universal DVI (HDMI & HDCP compliant)
    • Analog: Up to 30 via Universal DVI
    • Analog Format: RGBHV, RGsB, YPbPr
    • Analog Sync: TTL Level, 10KΩ, Pos or Neg
    • RGB Level Range: 0.5-2.0 Vp-p
    • Scan Rate Detection: Automatic
    • Analog Signals: PC to 1920x1080, HD to 1080p60
    • DVI Signals: PC to 1920x1200, HD to 1080p60
    • Computer Compatibility: PC, Workstations
  • Computer Outputs
    • DVI/HDMI Signals: Up to 24 via Universal DVI (HDCP compliant)
    • Digital HDMI: Up to 24 via HDBaseT (HDCP compliant)
    • Analog: Up to 24 via Universal DVI
    • Analog format: RGBHV, RGBS, RGsB, YPbPr
    • R-G-B Level: 0.7 Vp-p
    • DVI Signals: PC to 1920x1200, HD to 1080p60 w/EDID
    • Analog Signals: PC to 1920x1080, HD to 1080p60
    • Size and Position: User Adjustable
    • Settings Memory: Non-Volatile
    • Conversion Technology: Proprietary – CORIO®2
    • Color: RGBDVI/HDMI/ YPbPr 24-bit 4:4:4, SDI 20-bit 4:2:2
    • Max. Sampling Rate: 162MHz
    • Firmware Memory: Flash, Upgradable via download
    • De-Interlacing (NTSC, PAL, 1080i) : Pixel-level Motion Adaptive, Diagonal Interpolation
    • Video Comb Filter: Adaptive
    • Film (NTSC, 1080i): 3:2 Pull-down
    • Video Adjustments: Contrast, Brightness
  • Audio Support
    • Digital/Analog: 48kHz PCM
    • De-embed/embed: SDI & HDMI I/O via Universal DVI – optional Audio Module with AES break-out. HDBaseT output
    • HD Video Resolutions supported (DVI, YPbPr, SDI)
    • 720p (1280x720): (23.98, 24, 25 SDI only), 29.97, 30, 50, 59.94, 60Hz
    • 1035i (1920x1035): 59.94, 60Hz
    • 1080i (1920x1080): 50, 59.94, 60Hz
    • 1080p (1920x1080): 23.98, 24, 25, 29.97, 30Hz
    • 1080p (1920x1080): 50, 59.94, 60Hz (not 4x HD-SDI input module)
  • Video Inputs
    • Television Standards: NTSC, PAL, PAL-M/N
    • Composite Video: Up to 30 via Universal DVI
    • YC (S-Video): Up to 30 via Universal DVI
    • YUV /YPbPr: Up to 30 via Universal DVI
    • SD/HD-SDI: Up to 60 via BNC
    • 3G-SDI: Up to 30 via BNC
  • Video Outputs
    • Television Standards: NTSC, PAL, PAL-M/N
    • Composite Video: Up to 24 via Universal DVI
    • YC (S-Video): Up to 24 via Universal DVI
    • YUV /YPbPr: Up to 24 via Universal DVI
    • SD/HD/3G-SDI: Up to 24 via BNC
    • HDBaseT: Up to 24 via RJ45
  • 3G/HD/SD-SDI
    • SMPTE259M-C (SD-SDI Video):
      • 270Mbps < 0.1UI jitter
      • 525/625Line
    • SMPTE292M (HD-SDI Video):
      • 1.485/1.4835Gbps < 0.2 UI jitter
      • 720p, 1035i, 1080i, 1080p
    • SMPTE424M (3G-SDI Video):
      • 2.97/2.967Gbps < 0.3 UI jitter
      • 1080p 60/59.94
    • SMPTE272M-2004: 4 Stereo 24bit Audio Channels (SD-SDI Audio)
    • SMPTE299M-2004: 4 Stereo 24bit Audio Channels (3G/HD-SDI Audio)
  • Control Methods
    • RS-232: via D9 Female Connector
    • IP Interface: RJ45 Connector
    • Web UI: Browser
  • Warranty
    • Limited Warranty: 5 Years Parts and Labor
  • Regulatory Compliance
    • Main unit: FCC, CE, RoHS
  • Mechanical 4U
    • Size (HxWxD): 7.0" x 19.0" x 13.1" (178 x 482 x 334 mm)
    • Weight (Net): Approx. 15Kg (33 lbs.) (with redundant PSU option)
  • Mechanical 1U
    • Size (HxWxD): 1.75" x 19.0" x 13.25" (45 x 482 x 336 mm)
    • Weight (Net): Approx. 5Kg (11.03 lbs)
  • Environmental
    • Operating Temperature: 0⁰ to +40⁰ C (+32⁰ to +104⁰ F)
    • Operating Humidity: 10% to 85%, Non-condensing
    • Storage Temperature: -10⁰ to +70⁰ C (+14⁰ to +158⁰ F)
    • Storage Humidity: 10% to 85%, Non-condensing
    • MTBF 4U: Approximately 35,000 hours
    • MTBF 1U: Approximately 50,000 hours
  • Power Requirement
    • Internal Power Supply: 110v to 240v auto-detecting
    • Redundancy: Optional Internal Hot Swap PSU
  • Power Consumption
    • C3-340: 300 watts maximum (fully populated chassis)
    • C3-310: 125 watts maximum (fully populated chassis)
  • BTU
    • C3-340: 1024 BTU/hr
    • C3-310: 427 BTU/hr
  • Fan Noise
    • C3-340: 0 - 35°C = 37.7dB(A) Min / 40°C = 50.6dB(A) Max
    • C3-310: 0 - 35°C = 37.7dB(A) Min / 40°C = 50.6dB(A) Max
