tvONE 1RK-4RU-BASIC-KIT – ONErack 4RU Basic Kit Chassis and 6 Modules
Product Overview

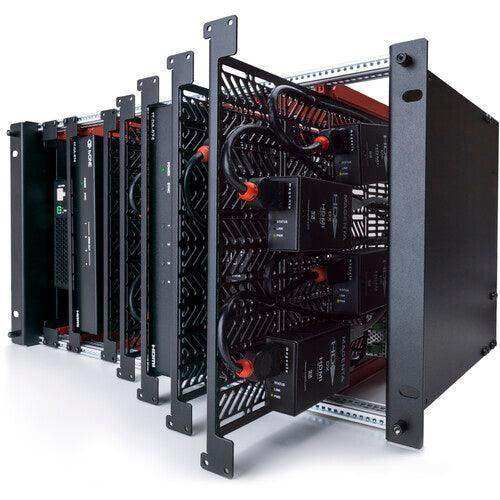

The tvONE 1RK-4RU-BASIC-KIT is the ONErack 4RU chassis and module kit without a power supply unit, providing the physical mounting infrastructure for DC-powered AV devices at the lowest entry cost. It is intended for integrators who are pairing the chassis with a separately sourced PSU — either an existing ONErack PSU or a new 1RK-4RU-PSU or 1RK-4RU-PSU-2-HSWP. The kit includes the 4RU chassis and 6 mounting modules, expandable to 16 modules, and supports up to 32 DC-powered devices.
Product Description
The 1RK-4RU-BASIC-KIT includes the 4RU ONErack chassis and 6 mounting modules, giving integrators the mounting and power distribution infrastructure of the ONErack system without the standard PSU. This is the appropriate purchase when the PSU is being ordered separately — for example, when upgrading directly to the 450W hot-swappable 1RK-4RU-PSU-2-HSWP or adding a chassis alongside an existing ONErack PSU. Each of the 6 included modules supports up to 2 voltage selectors, with each selector independently configurable to 5V, 7.5V, 9V, 12V, 13.5V, 18V, or 24V at up to 35W. Expanding with additional rails and modules brings the 4RU chassis to its maximum of 16 module slots, which can simultaneously power up to 32 DC devices. The 4RU chassis is the most compact ONErack frame, suited for space-constrained racks or installations with moderate device counts. All DC-powered AV devices from any manufacturer are compatible with the ONErack mounting system, making it a universal solution for eliminating wall wart adapters. Optional accessories include the standard 250W PSU (1RK-4RU-PSU), the 450W hot-swappable PSU (1RK-4RU-PSU-2-HSWP), fan cover, metal cover, plexi cover, and cable management. Available from Creation Networks.
Key Features
- Chassis and Modules Without PSU — Allows integrators to pair with a PSU of their choice, including direct upgrade to hot-swappable models.
- 4RU Compact Chassis — Smallest ONErack frame, ideal for space-constrained rack builds.
- 6 Modules Included — Immediately supports up to 12 DC devices with room to expand to 16 modules total.
- Up to 16 Module Slots — Expandable with additional rails and modules for up to 32 powered devices.
- 7 Voltage Options Per Slot — 5V, 7.5V, 9V, 12V, 13.5V, 18V, or 24V independently selectable per voltage selector.
- Universal Device Compatibility — Mounts and powers DC AV devices from any manufacturer.
- PSU Flexibility — Compatible with the standard 250W PSU or the 450W hot-swappable PSU option.
Typical Applications
- AV racks where the PSU is being ordered or upgraded separately
- Conference room installations requiring compact rack mounting of DC-powered devices
- Government and enterprise AV deployments specifying the hot-swappable PSU from the outset
- Broadcast and production environments building a custom ONErack configuration
- House of worship and higher-education AV systems on a phased build schedule
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 1RK-4RU-BASIC-KIT |
| Chassis Size | 4RU |
| Included Modules | 6 |
| Max Modules | 16 |
| Max Powered Devices | 32 (2 per module) |
| PSU Included | No (ordered separately) |
| Compatible PSUs | 1RK-4RU-PSU (250W), 1RK-4RU-PSU-2-HSWP (450W hot-swap) |
| Output Voltages | 5V, 7.5V, 9V, 12V, 13.5V, 18V, 24V |
| Max Power Per Voltage Selector | 35W |
Frequently Asked Questions
Why would I choose the Basic Kit over the Standard Kit?
The Basic Kit is appropriate when you intend to add a different PSU than the 250W standard included with the 1RK-4RU-KIT — for example, purchasing directly with the hot-swappable 450W PSU upgrade. It avoids paying for a PSU you will not use.
What PSU options are compatible with the 4RU Basic Kit?
The 4RU chassis is compatible with the 1RK-4RU-PSU (250W standard) and the 1RK-4RU-PSU-2-HSWP (450W hot-swappable). Both are available from Creation Networks.
Can the 4RU Basic Kit be expanded beyond 6 modules?
Yes. With additional rails and module units, the 4RU chassis expands to 16 module slots for a maximum of 32 powered DC devices.
Is the ONErack 4RU chassis compatible with any AV brand?
Yes. The ONErack system is manufacturer-agnostic — it powers DC devices from any brand, provided the device voltage requirement matches one of the 7 available selector voltages.
Does the Basic Kit include a PSU cable or connector?
The chassis includes the internal wiring and power bus infrastructure. The PSU modules connect via the chassis power bus when installed inside the 4RU frame.
Where can I purchase the tvONE 1RK-4RU-BASIC-KIT?
Available from Creation Networks, an authorized tvONE dealer with expert AV integration support.
