tvONE 1T-CL-322-US – 16-Button Ethernet Wall Control Panel

Product Overview

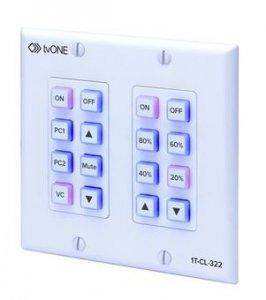

The tvONE 1T-CL-322-US is a 2-gang, 16-button wall-mounted control panel designed for Ethernet-based AV system automation in commercial and residential installations. Each of the 16 LED-backlit buttons is individually programmable for single commands or macros containing up to 16 sequential commands, drawn from a library of 128 stored commands. The panel connects to the network via a single TCP/IP Ethernet port and supports Power over Ethernet (PoE), eliminating the need for a local power supply in most installations. Configuration is managed remotely through a browser-based WebUI, making it straightforward for integrators to deploy and update programming without physical access.

Product Description

The 1T-CL-322-US is the North American version of tvONE's wall-mount control panel, designed to fit standard 2-gang US electrical boxes. It provides a cost-effective, scalable solution for controlling AV equipment from a fixed wall location. Commands are delivered over TCP/IP Ethernet, so the panel can control any network-addressable device on the same network. PoE (Power over Ethernet) is supported, which simplifies cable routing by eliminating the need for a separate power run to the panel. A single programmable relay output triggers mechanical devices such as motorized screens, curtains, or projector hoists, adding environmental control to the system. Time and date scheduling is built in, allowing the system to automate power on/off sequences or scene changes without active user interaction — useful for unattended installations. LED button logic can be configured to provide visual status feedback to the user, indicating which scene or source is active. All 16 buttons have two-color LED backlighting adjustable from 0 to 100% brightness for ambient light adaptability. Programming is handled through a browser-based WebUI accessible from any networked computer. A discovery application (1T-CL-SW) for Windows allows administrators to search for and manage all 1T-CL-322-US panels on the network. A panel emulator within the WebUI allows real-time testing and remote system verification. Note: This panel controls only TCP/IP devices and does not support UDP-controlled equipment.

Key Features

• 16 Programmable LED Buttons — Each button can trigger a single command or a macro of up to 16 sequential commands.
• 128-Command Library with 32 Macros — Stores up to 128 individual commands and 32 macros for comprehensive system control.
• TCP/IP Ethernet Control — Connects to network-addressable AV equipment over a single Ethernet port (Static or DHCP).
• Power over Ethernet (PoE) — Eliminates the need for local power wiring; powered directly from a PoE-enabled network switch.
• Programmable Relay Output — Controls motorized screens, projector lifts, and other mechanical devices.
• Time and Date Scheduling — Automates scheduled events such as system power-on/off and scene changes.
• Browser-Based WebUI — Remote programming and configuration via any web browser on the same network.
• 2-Color LED Backlighting (0–100%) — Adjustable button illumination with logic-based status feedback for the active scene or input.
• Panel Emulator — WebUI emulator allows real-time testing and remote system management without physical access.
• 2-Gang North American Form Factor — Fits standard US 2-gang electrical wall boxes for clean, professional installation.

Typical Applications

• Conference rooms with one-touch system control for display power, source selection, and screen deployment
• Boardrooms requiring scheduled automation for daily meeting room power cycles
• Training rooms with multi-step scene recall for lighting and AV preset configurations
• Houses of worship with sequenced control of audio, video, and environmental systems
• Corporate lobbies with time-scheduled digital signage automation
• Hotel meeting rooms where facilities staff need simple, intuitive AV system control

Technical Specifications
