Tripp Lite SU2200RTXLCDN – 2200VA Online Double-Conversion UPS with SNMP Card, 2U

Product Overview

The Tripp Lite SU2200RTXLCDN SmartOnline 2200VA 1800W double-conversion online UPS delivers continuous, fully regulated sine wave power for servers, network equipment, and critical IT infrastructure in data centers and enterprise server rooms. Operating in true online double-conversion mode, the SU2200RTXLCDN converts AC input to DC and back to clean AC output with zero transfer time to battery, making it suitable for sensitive network applications that cannot tolerate even momentary power interruptions. A WEBCARDLX network management card is pre-installed, enabling remote SNMP-based monitoring and control without additional hardware purchases. The unit installs in 2U of rack space and supports runtime extension via optional external battery packs.

Product Description

The SU2200RTXLCDN operates in continuous online double-conversion mode, delivering +/-2% output voltage regulation in both online and battery modes. This level of voltage regulation protects sensitive IT equipment from brownouts, voltage fluctuations, and line noise without relying on a transfer switch. The internal battery provides approximately 12 minutes of runtime at half load and 4 minutes at full load; adding external battery packs such as the BP48V24-2U (sold separately) extends runtime for longer outages.

The pre-installed WEBCARDLX interface provides full remote monitoring and management via secure web browser (HTML5, no Java required), SNMP, Telnet, and SSH. The card supports 10/100 Mbps auto-sensing Ethernet and protocols including HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, and NTP. Email notifications keep IT staff informed of power events and UPS status changes. Optional EnviroSense2 modules can be added to monitor temperature, humidity, and contact closures within the rack environment.

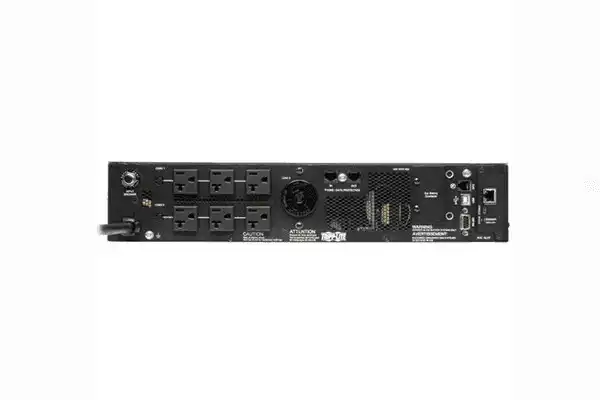

The SU2200RTXLCDN provides seven output outlets: six NEMA 5-15/20R outlets in two independently switchable numbered load banks, plus one L5-20R outlet. Switchable load banks allow non-essential equipment to be shed during a power event, preserving battery runtime for priority systems. A 570-joule surge suppression rating and EMI/RFI noise filtering protect connected equipment from power disturbances. A front-panel LCD displays real-time UPS status, load, battery level, and input/output voltage.

Key Features

• Online Double-Conversion Technology — Continuously regenerates clean, regulated sine wave output regardless of input power quality, with zero transfer time to battery for uninterrupted protection of sensitive network equipment.
• Pre-Installed WEBCARDLX Network Management Card — Enables full remote UPS monitoring, configuration, and control via SNMP, web browser, Telnet, or SSH without requiring a separate network card purchase.
• +/-2% Output Voltage Regulation — Maintains tightly regulated output voltage in both online and battery modes, protecting connected equipment from voltage fluctuations and brownouts.
• Expandable Runtime — Internal battery provides 12 minutes at half load; optional external battery packs extend runtime to support longer power outages without replacing the UPS unit.
• Switchable Numbered Load Banks — Six NEMA 5-15/20R outlets are organized into two independently controlled load banks, allowing non-critical equipment to be shed to extend runtime for priority systems.
• HTML5 Web Interface — Java-free browser-based management interface simplifies remote access across modern operating systems and browsers without requiring legacy Java installations.
• 570-Joule Surge Suppression — Provides protection against power surges, with EMI/RFI noise filtering to improve equipment performance and prevent data corruption.
• Optional EnviroSense2 Monitoring — Supports optional environmental sensor modules for temperature, humidity, and contact closure monitoring within the rack enclosure.

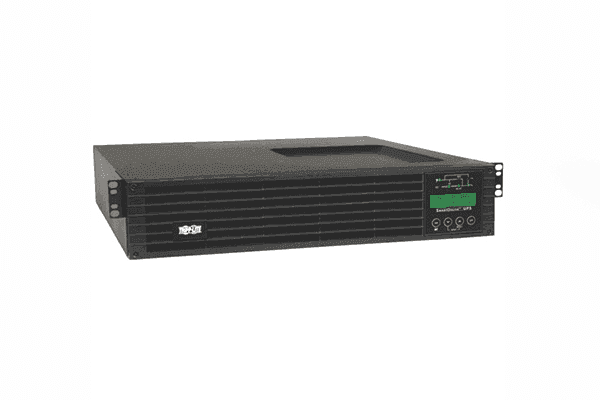

• Front-Panel LCD Display — Shows real-time UPS status, load percentage, battery charge level, and input/output voltage for at-a-glance local monitoring.
• 2U Rack/Tower Convertible — Installs in 2U of standard rack space and can also be configured for tower use, providing deployment flexibility.

Typical Applications

• Data center server power protection
• Enterprise network operations center infrastructure
• Government and commercial server room deployments
• IT closet and edge networking equipment
• Training room AV and computer lab power protection

Technical Specifications

Frequently Asked Questions

What is the difference between the SU2200RTXLCDN and a standard line-interactive UPS?

The SU2200RTXLCDN uses true online double-conversion technology, which means it continuously regenerates output power from the DC bus. This provides zero transfer time to battery and tighter voltage regulation (+/-2%) compared to line-interactive UPS units, which only switch to battery when input voltage falls outside acceptable range. Double-conversion is the preferred choice for sensitive network servers and telecommunications equipment.

Does the SU2200RTXLCDN include a network management card?

Yes. The WEBCARDLX network management card is pre-installed from the factory. This card provides full SNMP-based remote monitoring and control, an HTML5 web interface, email notifications, and support for Telnet and SSH access without any additional hardware purchase.

How do I extend the battery runtime beyond the standard internal battery?

The SU2200RTXLCDN is compatible with external battery packs such as the BP48V24-2U (sold separately). Adding external packs extends runtime proportionally to the additional battery capacity. Contact Creation Networks for help sizing runtime to your specific load requirements.

Can I use the load banks to protect priority equipment separately from non-critical equipment?

Yes. The six NEMA 5-15/20R outlets are divided into two independently switchable numbered load banks. During a power event, you can configure the UPS to automatically shed power to one bank, preserving battery runtime for the equipment connected to the other bank.

What environmental monitoring options are available?

Optional EnviroSense2 modules can be connected to the SU2200RTXLCDN to monitor temperature, humidity, and contact closures within the rack. This data is reported through the WEBCARDLX interface alongside UPS status information.

Is the SU2200RTXLCDN suitable for deployment in a data center rack?

Yes. The unit installs in 2U of standard rack space and connects to the network via the pre-installed WEBCARDLX card. It can also be configured as a tower unit for non-rack deployments.
