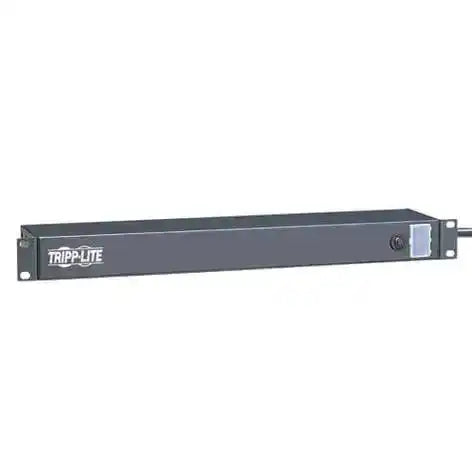

Tripp Lite RS-0615-R – 1U Rack Power Strip 6 Rear-Facing Outlets 15ft

Product Overview

The Tripp Lite RS-0615-R is a 1U rack-mount power strip providing 6 rear-facing NEMA 5-15R outlets for server rooms, network closets, and commercial AV rack enclosures. The rear-facing outlet orientation positions plugged-in cords toward the back of the rack, keeping the front panel clear and minimizing cable clutter in the working area. An unfiltered pass-through design ensures compatibility with modified sine wave UPS output and generator power, making the RS-0615-R appropriate for use downstream of any AC source in a rack infrastructure. Detachable mounting flanges support 1U rack, wall, and under-counter installation with the included 15-foot cord providing reach to distant AC sources.

Product Description

The RS-0615-R distributes 120V, 15-amp AC power from a single NEMA 5-15P plug to six rear-facing NEMA 5-15R outlets in a 1U panel. The rear-facing outlet design is particularly useful in rack enclosures where equipment connects from the rear, allowing cable runs to exit directly toward cable management panels or vertical cable managers without bending or crossing the front of the strip.

Unlike filtered or conditioned power strips, the RS-0615-R uses an unfiltered electrical pass-through circuit. This means the unit delivers the AC waveform exactly as received from the source without modification, ensuring compatibility with stepped approximation and modified sine wave outputs from UPS systems and generators—power types that can trip overload or compatibility protections in filtered strips. A 15-amp circuit breaker provides overcurrent protection for connected equipment.

The lighted on/off switch provides a clear visual indication of power status, and the latching safety cover over the switch prevents accidental shutoff in an active rack environment. The all-metal cabinet is durable for permanent commercial and network infrastructure installations. Detachable mounting flanges support installation in any standard 19-inch EIA rack (1U), on a wall, or under a counter. The 15-foot NEMA 5-15P power cord allows the unit to connect to AC sources that are not immediately adjacent to the rack position. Tripp Lite covers this product with a Lifetime Limited Warranty.

Key Features

• 6 Rear-Facing NEMA 5-15R Outlets — Outlets face toward the rear of the rack, routing cords away from the front panel to maintain a clean working area and support rear cable management.
• 1U Rack-Mount Form Factor — Occupies a single rack unit in any standard 19-inch EIA rack; detachable flanges also allow wall or under-counter mounting.
• Unfiltered Pass-Through — Delivers AC power without conditioning or filtering, ensuring full compatibility with modified sine wave UPS output and generator power sources.
• 15-Amp Circuit Breaker — Integrated overcurrent protection prevents damage from overload conditions across all outlets.
• Lighted Switch with Latching Guard — Illuminated power switch confirms on/off status; latching cover prevents accidental shutoff in server room and network rack environments.
• 15-Foot Power Cord — Long NEMA 5-15P cord provides flexibility to reach wall outlets or PDU connections at a distance from the mounted position.
• Multi-Mount Detachable Flanges — Removable flanges support 1U rack, wall-mount, and under-counter installation in the same unit.
• All-Metal Cabinet — Durable metal housing appropriate for permanent commercial, IT infrastructure, and AV system installations.
• Lifetime Limited Warranty — Tripp Lite backs the RS-0615-R with a Lifetime Limited Warranty.

Technical Specifications
