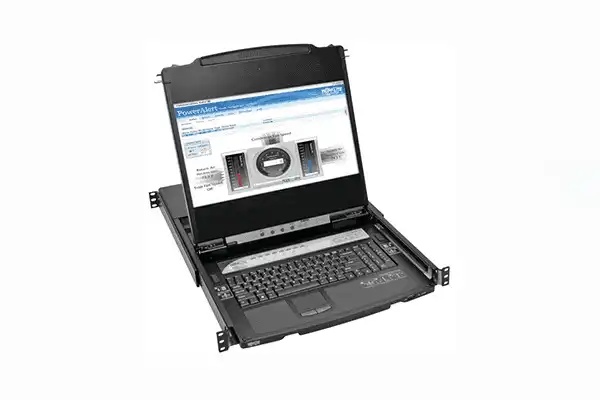

Tripp Lite B021-000-19-HD – 1U Rack Console KVM with 19" LCD

Product Overview

The Tripp Lite B021-000-19-HD is a 1U rack-mount console KVM designed for IT environments where technicians need direct, rack-side access to servers, computers, or KVM switches without consuming excessive rack space. The unit integrates a 19-inch LCD display, full 88-key keyboard, and touchpad into a single sliding drawer that retracts flush into standard 19-inch racks. With DVI-I video input supporting both DVI digital and VGA analog signals, the B021-000-19-HD is a TAA-compliant rack console KVM solution for government, enterprise data centers, and secure server room deployments. Its hardware-based compatibility means it works across UNIX, Linux, Windows, macOS, and Solaris platforms without requiring server-resident software.

Product Description

The B021-000-19-HD rack console KVM fits in any standard 19-inch rack with a depth range of 27 to 42 inches using the included rack-mount hardware. The sliding 1U drawer houses an integrated 19-inch LCD panel capable of resolutions up to 1366 x 768, a full keyboard with numeric keypad, and a touchpad — all the controls needed to manage connected equipment without a separate monitor, keyboard, or mouse. A DVI-I port on the rear accepts both DVI digital and VGA analog video signals; a DVI-to-VGA adapter is included for connecting legacy VGA servers or KVM switches directly. The unit also features a USB 2.0 pass-through port: a peripheral such as a flash drive or CAC card reader connects to the USB-A port on the front panel, while a Tripp Lite UR020-Series Type-A M/M cable (sold separately) routes to the USB hub port on the connected server or KVM switch. Power input accepts 110/220V at 2A with a NEMA 5-15P plug and C14 receptacle on the unit. The heavy-duty steel housing is built for continuous operation in high-availability server rooms and co-location facilities. An included KVM cable kit enables immediate connection to a USB-based server or KVM switch. Because compatibility is hardware-based rather than software-dependent, the console works with virtually any platform without installing drivers or agents on the managed system.

Key Features

• Integrated 19-Inch LCD Display — The built-in 19-inch panel supports resolutions up to 1366 x 768, providing clear visual output for server management without requiring a separate monitor.
• 1U Sliding Drawer Design — The full keyboard, touchpad, and LCD retract into a single 1U sliding drawer, keeping rack space available and the console neatly stored when not in use.
• DVI-I Port with VGA Adapter — Accepts both DVI digital and VGA analog video signals via a single DVI-I port; includes a DVI-to-VGA adapter for backward compatibility with VGA-based equipment.
• USB 2.0 Pass-Through Port — Front-panel USB-A port allows connection of a flash drive, CAC card reader, or other USB peripheral without disrupting the server connection.
• TAA Compliant — Meets Trade Agreements Act requirements, making the unit eligible for U.S. federal government procurement and GSA Schedule purchases.
• No Server-Side Software Required — Hardware-based compatibility eliminates the need to install drivers or agents on managed servers, preserving system performance and reliability.
• Broad Platform Compatibility — Works with Windows, Linux, UNIX, macOS, and Solaris systems; compatible with most KVM switches that have a VGA or DVI port and USB keyboard/mouse ports.
• Heavy-Duty Steel Construction — The steel housing withstands the rigors of 24/7 data center operation and maintains structural integrity when mounted in racks ranging from 27 to 42 inches deep.
• Dual-Voltage Power Input — Accepts 110/220V input with a NEMA 5-15P plug and C14 outlet on the unit, supporting both North American and international rack power environments.

Typical Applications

• Enterprise server rooms and data centers requiring direct rack-side server access
• Government and federal facilities requiring TAA-compliant KVM console solutions
• Co-location facilities where space-efficient 1U rack console KVM access is critical
• Network operations centers (NOCs) with high-density rack deployments
• IT closets and telecom rooms where a dedicated monitor and keyboard are not practical

Technical Specifications

Frequently Asked Questions

Does the B021-000-19-HD work with both DVI and VGA servers?

Yes. The DVI-I port on the rear of the unit accepts DVI digital signals directly. An included DVI-to-VGA adapter allows connection to VGA-output servers and KVM switches without any additional hardware purchase.

Is server-side software or a driver required to use this console?

No. The B021-000-19-HD operates as a hardware console — it connects via standard DVI/VGA and USB ports and does not require installation of any agents, drivers, or software on the managed server.

What rack depths is this console compatible with?

The unit mounts in standard 19-inch EIA racks with depths between 27 and 42 inches. All required rack-mount hardware is included in the box.

Can I use the USB pass-through port for a CAC card reader in a government environment?

Yes. The front-panel USB 2.0 Type-A port supports CAC card readers, which is one reason this unit is TAA compliant and commonly specified for government deployments. The server or KVM switch must have an available USB hub port for the rear connection.

What cable is needed to connect the rear USB pass-through port to the server?

A Tripp Lite UR020-Series USB Type-A Male-to-Male cable is required for the rear USB pass-through connection. This cable is sold separately.

Is the B021-000-19-HD eligible for federal government procurement?

Yes. The unit is TAA compliant, making it eligible for U.S. federal government purchase under GSA Schedule contracts and other government procurement programs.

What is the warranty on the B021-000-19-HD?

Tripp Lite products carry a standard limited warranty. Register the product at tripplite.eaton.com for full warranty details and to access technical support resources. Extended warranty options are also available.
