Tripp Lite P130-000-AUDIO – 4K HDMI Audio De-Embedder Extractor

Product Overview

The Tripp Lite P130-000-AUDIO is a 4K HDMI audio de-embedder and extractor designed for commercial AV installations where audio must be separated from an HDMI signal and routed to a non-HDMI audio system. The unit accepts a single HDMI input and passes the video signal through to an HDMI display while simultaneously extracting the embedded audio track and delivering it via 3.5mm stereo, TOSLINK digital optical, or RCA coaxial digital outputs. This makes it an appropriate solution for conference rooms, commercial display installations, home theater retrofits, and broadcast environments where legacy or dedicated audio systems cannot accept HDMI audio directly.

Product Description

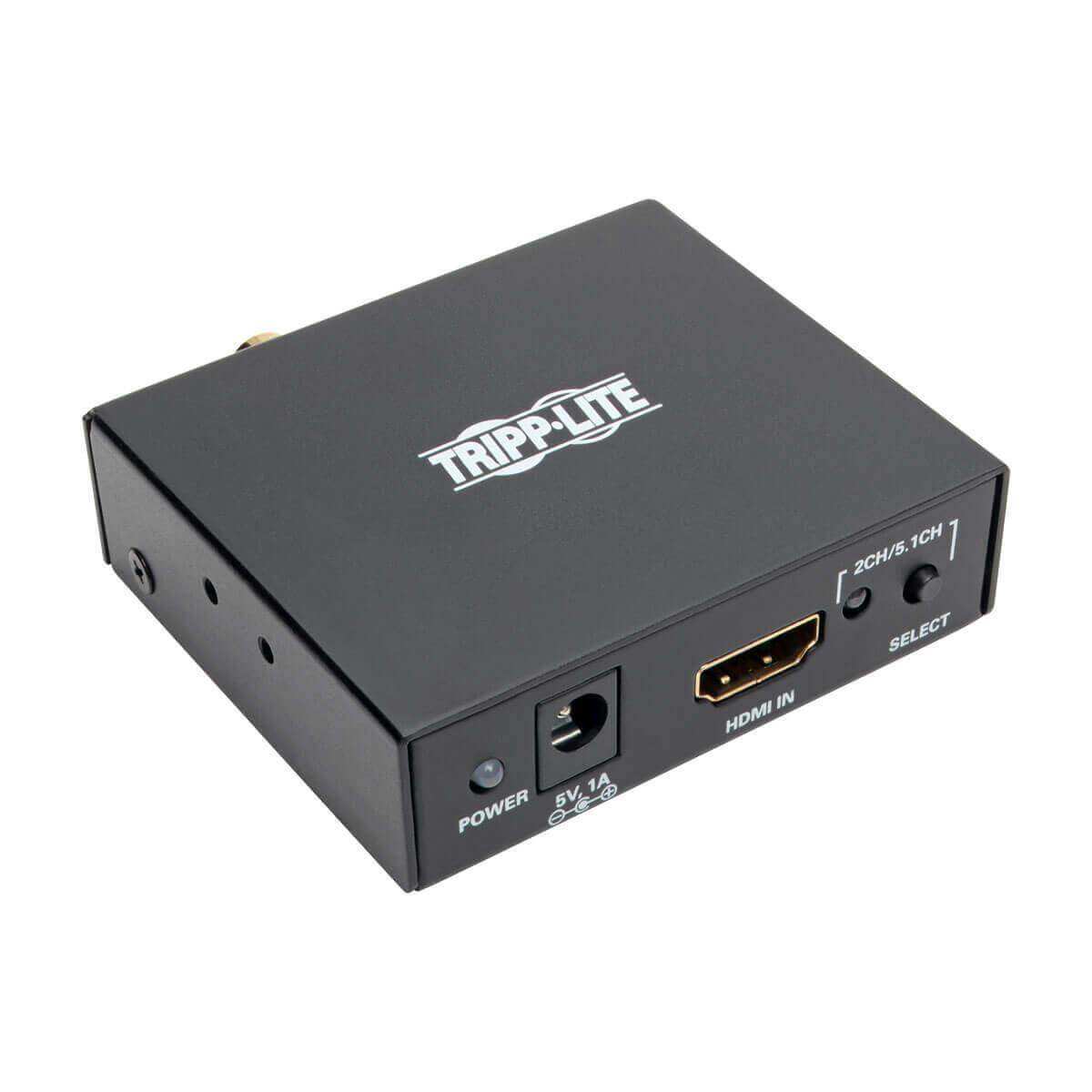

The P130-000-AUDIO takes an incoming HDMI signal and splits it into two outputs: a full HDMI video-plus-audio signal passed through to a connected display, and a separated audio signal sent to one or more of the three audio output connectors. This allows a single HDMI source—such as a Blu-ray player, streaming device, gaming console, or media server—to simultaneously feed both a display and a dedicated audio system without requiring the audio receiver or amplifier to support HDMI connectivity.

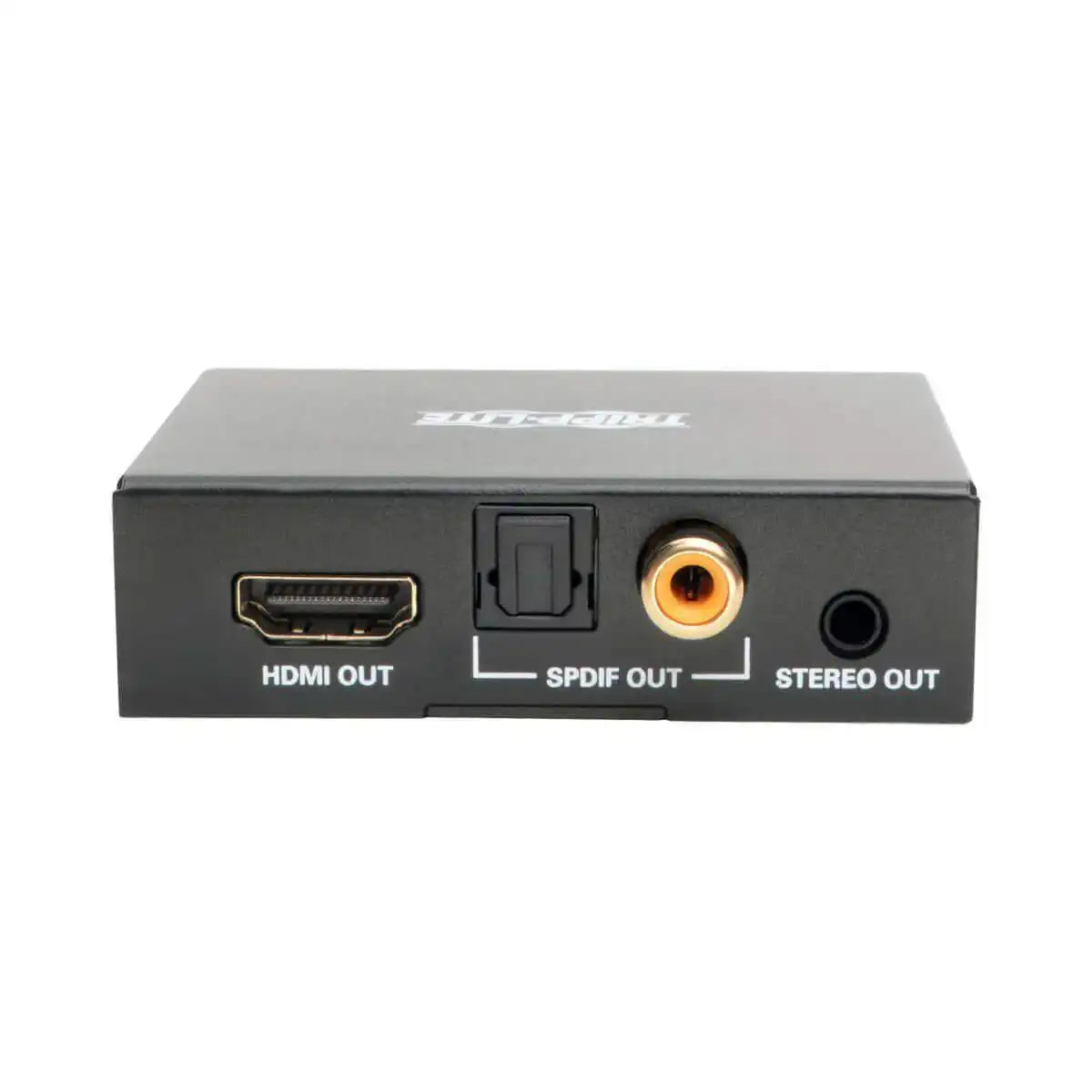

The unit supports two-channel stereo audio as well as multi-channel audio up to 5.1 surround sound. Both uncompressed audio formats (LPCM) and compressed formats including DTS and Dolby Digital are handled. Three audio output options are available on a single unit: a 3.5mm stereo mini-jack for standard analog connections, a TOSLINK digital optical output for premium digital audio systems, and an RCA coaxial digital output for receivers that accept S/PDIF digital coaxial input. All three output connectors are available simultaneously, providing flexibility in connecting to different audio equipment.

On the video side, the P130-000-AUDIO passes Ultra HD resolution up to 3840 x 2160 (4K x 2K) at 30 Hz through the HDMI output. It supports 24-bit True Color (8 bits per channel) at 4K resolution, 36-bit Deep Color (12 bits per channel) at 1080p, and optional 3D content formats at 50/60 Hz. The unit is HDCP compatible. An LED indicator confirms power status, active signal transmission, and 5.1-channel surround sound detection. The included power supply comes with international plug adapters for North America, Europe, the U.K., and Australia.

Key Features

• HDMI Audio De-Embedding — Extracts the embedded audio track from an incoming HDMI signal and routes it to separate audio outputs while simultaneously passing the full audio/video signal through the HDMI output to a display.
• Three Audio Output Formats — Provides 3.5mm stereo, TOSLINK digital optical, and RCA coaxial digital audio outputs simultaneously, enabling connection to virtually any non-HDMI audio system or amplifier.
• 5.1 Surround Sound Support — Handles multi-channel audio up to 5.1 surround sound in addition to two-channel stereo.
• Uncompressed and Compressed Audio — Compatible with LPCM uncompressed audio as well as compressed formats including DTS and Dolby Digital.
• 4K UHD Video Pass-Through at 30 Hz — Passes Ultra HD 3840 x 2160 video resolution through the HDMI output at up to 30 Hz.
• True Color and Deep Color Support — Supports 24-bit True Color at 4K resolution and 36-bit Deep Color (12 bits per channel) at 1080p.
• 3D Video Support — Handles optional 3D video formats at frame rates up to 50/60 Hz.
• HDCP Compatible — Passes HDCP-protected content from compliant source devices to compatible displays.
• LED Status Indicators — LED confirms power, active signal transmission, and 5.1-channel surround sound operation at a glance.

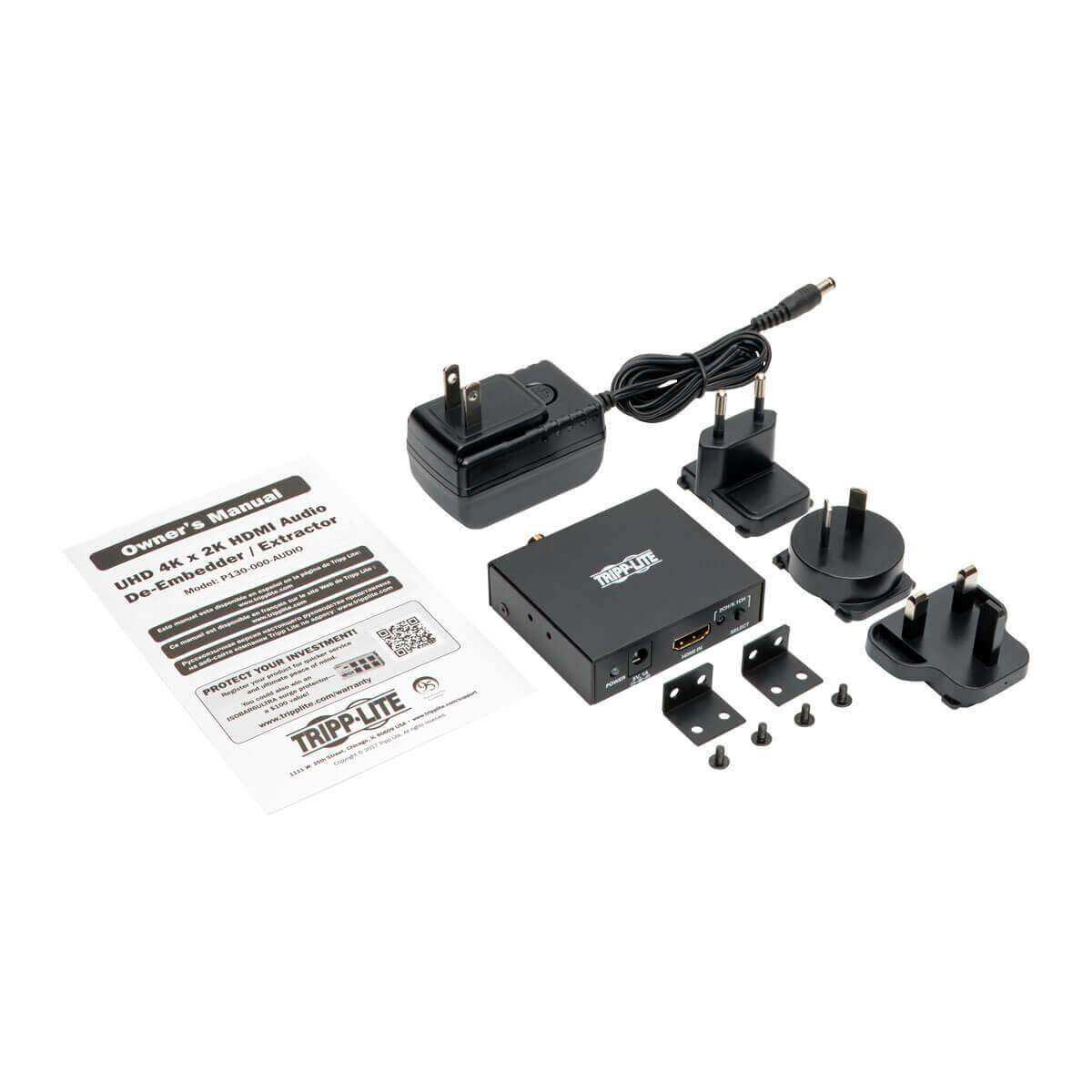

• International Power Supply Included — Supplied power adapter includes plug adapters for North America, Europe, U.K., and Australia, suitable for use in international AV deployments.
