Tripp Lite BHDBT3-TRX2 – HDBaseT 3.0 4K 60Hz Transmitter and Receiver Kit, Cat6a

Product Overview

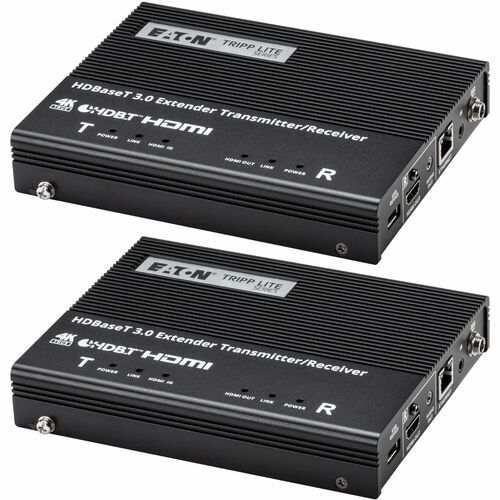

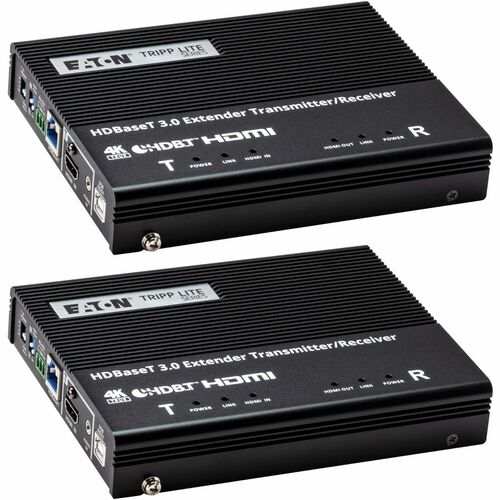

The Tripp Lite BHDBT3-TRX2 HDBaseT 3.0 Transmitter and Receiver Kit extends true 4K uncompressed video, audio, Ethernet, RS-232, USB, and IR control signals up to 328 feet (100 meters) over a single Cat6a cable, making it a complete AV signal distribution solution for conference halls, auditoriums, lecture halls, and large commercial spaces. Using the latest HDBaseT 3.0 standard with zero latency, the BHDBT3-TRX2 transmits Ultra HD resolutions up to 4096 x 2160 at 60 Hz with HDR support and 4:4:4 chroma subsampling. HDCP 2.3 compliance allows distribution of protected 4K content from streaming sources. The kit is TAA compliant for GSA Schedule procurement.

Product Description

The BHDBT3-TRX2 uses a single HDBaseT3-certified Cat6a cable to carry the full range of AV and control signals between the transmitter and receiver, eliminating the need for multiple dedicated cable runs. The HDBaseT 3.0 standard provides sufficient bandwidth for uncompressed 4K video at 60 Hz with no signal degradation, suitable for professional AV installations where image quality cannot be compromised by compression artifacts.

HDR (High Dynamic Range) support provides wider color range, higher contrast, brighter highlights, and deeper blacks for compatible 4K displays. Uncompressed 4:4:4 chroma subsampling preserves full color information at every pixel, which is important for PC graphics output, digital signage, and professional video monitoring applications. HDCP 2.3 encryption ensures compatibility with 4K protected content from streaming services and Blu-ray sources.

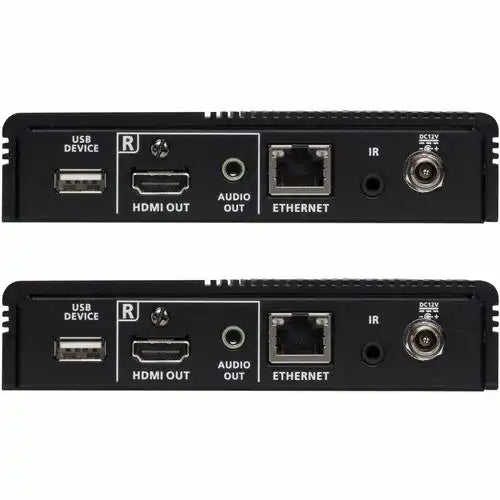

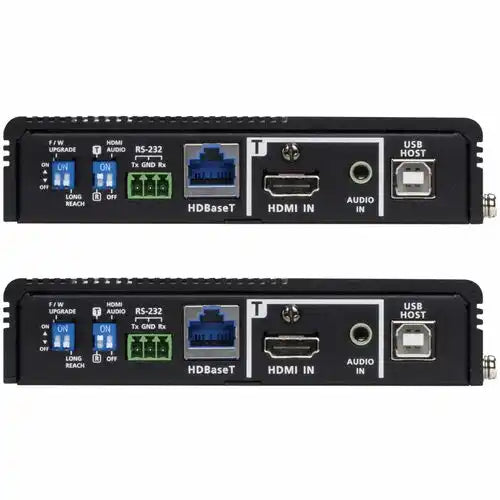

Beyond video, the BHDBT3-TRX2 extends bi-directional RS-232 serial control, full-range IR remote control pass-through, Gigabit Ethernet, and USB 2.0 over the same Cat6a cable run. RS-232 and IR allow control of source devices or displays from the far end without separate control cabling. USB 2.0 extension supports peripherals such as barcode scanners, HID devices, and other USB 2.0-compatible accessories at the receiver end.

An HDMI audio embedded/de-embedded function allows flexible audio handling, with audio bypass capability for installations requiring separate audio routing. Locking HDMI connectors on both the transmitter and receiver prevent accidental disconnection in professional installations where cable access is difficult. A fanless fin heat sink design provides passive cooling for reliable, silent operation in enclosed rack spaces and behind panels. Both units include built-in mounting brackets for wall installation. No software or drivers are required.

Key Features

• HDBaseT 3.0 Technology — Uses the latest HDBaseT 3.0 standard to transmit 4K video, audio, Ethernet, USB, RS-232, and IR over a single Cat6a cable at distances up to 328 feet (100 meters).
• True 4K at 60 Hz with HDR — Supports uncompressed Ultra HD resolutions up to 4096 x 2160 at 60 Hz with High Dynamic Range, delivering vivid color, high contrast, and sharp detail on compatible 4K displays.
• 4:4:4 Chroma Subsampling — Preserves full color information at every pixel for accurate color reproduction in professional AV, digital signage, and PC graphics applications.
• HDCP 2.3 Compliance — Enables distribution of HDCP-protected 4K content from streaming services and Blu-ray sources without compatibility issues.
• Multi-Signal Extension Over One Cable — Eliminates the need for separate cable runs by transmitting video, audio, Gigabit Ethernet, USB 2.0, bi-directional RS-232, and IR over a single Cat6a cable.
• Locking HDMI Connectors — Universal HDMI cable locks prevent accidental disconnection in professional installations where cables are difficult to inspect or access.
• HDMI Audio Embed/De-Embed — Flexible audio handling allows audio to be embedded into or extracted from the HDMI signal, with bypass capability for installations requiring separate audio routing.

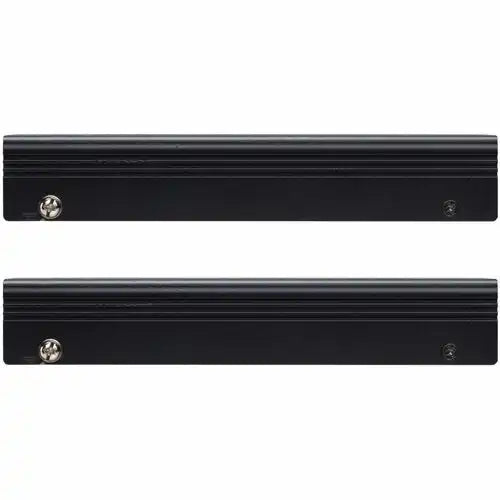

• Fanless Passive Cooling — Fin heat sink design dissipates heat without a fan, ensuring silent operation and high reliability in enclosed rack spaces or behind walls.
• Built-In Wall Mounting Brackets — Transmitter and receiver include integrated mounting brackets for clean, permanent wall installation without additional mounting hardware.
• TAA Compliant — Meets Trade Agreements Act requirements for GSA Schedule and federal government AV procurement.

Typical Applications

• Conference room and boardroom AV signal distribution
• Auditorium and lecture hall 4K video extension
• House of worship display systems
• Museum and exhibition AV installations
• Government and commercial multi-purpose room AV
• Digital signage signal distribution

Technical Specifications

Frequently Asked Questions

What cable do I need to connect the BHDBT3-TRX2 transmitter and receiver?

The BHDBT3-TRX2 requires an HDBaseT3-certified Cat6a cable for full performance, including 4K 60Hz video transmission at distances up to 328 feet (100 meters). Using a lower-rated cable may reduce maximum transmission distance or limit video performance.

Does the BHDBT3-TRX2 support HDR content?

Yes. The BHDBT3-TRX2 supports High Dynamic Range (HDR) at 4K 60Hz, providing expanded color range, higher contrast ratios, and improved brightness levels on compatible HDR displays.

Can I control source devices or displays from the receiver end without running separate control cables?

Yes. The BHDBT3-TRX2 extends both bi-directional RS-232 serial control and full-range IR remote control over the same Cat6a cable, allowing source devices and displays to be controlled from either end of the installation without additional control wiring.

Is the BHDBT3-TRX2 compatible with 4K streaming services?

Yes. HDCP 2.3 compliance allows the BHDBT3-TRX2 to pass protected 4K content from streaming services and Blu-ray players without compatibility issues.

Can I run USB peripherals at the far end of the cable run?

Yes. The BHDBT3-TRX2 extends USB 2.0 up to 328 feet over the Cat6a cable, supporting peripherals such as barcode scanners, HID input devices, and other USB 2.0-compatible accessories at the receiver location.

Is this product suitable for government or federal AV installations?

Yes. The BHDBT3-TRX2 is TAA (Trade Agreements Act) compliant, making it eligible for GSA Schedule and other federal government procurement contracts.

What warranty does this product carry?

The BHDBT3-TRX2 is covered by a 1-year limited warranty from Tripp Lite. Contact Creation Networks for information on extended warranty options.
