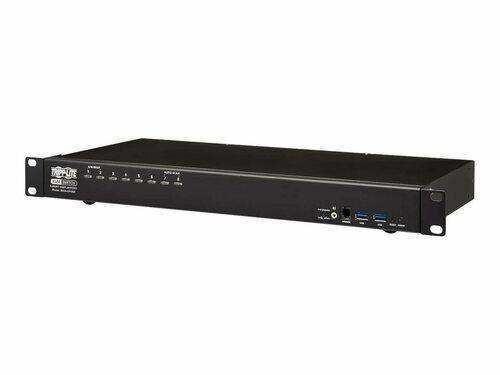

Tripp Lite B024-DPU08 – 8-Port DisplayPort USB KVM Switch with 4K 60Hz, Audio, USB Hub

Product Overview

The Tripp Lite B024-DPU08 is an 8-port DisplayPort/USB KVM switch with integrated audio and USB peripheral sharing, designed for control rooms, broadcast workstations, and commercial IT environments that require consolidated control of multiple computers from a single monitor, keyboard, and mouse. Supporting true 4K video at 4096 x 2160 and 60 Hz, the B024-DPU08 delivers high-resolution display output suitable for demanding professional applications. Cascading two levels of B024-DPU08 units extends centralized control to up to 128 computers from one console, and up to eight units can be stacked for multi-display configurations. The unit installs in 1U of a standard 19-inch rack or deploys on a desktop surface.

Product Description

The B024-DPU08 connects up to eight computers or DisplayPort-enabled devices — including desktop and notebook computers, media centers, Blu-ray players, and other consumer and professional electronics with DisplayPort outputs — to a single DisplayPort or HDMI monitor, USB keyboard, and USB mouse. All eight connected devices share the console outputs, reducing monitor count, desk clutter, and hardware overhead in multi-computer workspaces.

Port switching is accomplished via front-panel push buttons, RS-232 commands, keyboard hot keys, or the multi-lingual on-screen display (OSD). Auto Scan mode automatically cycles through active ports in five-second intervals for unattended monitoring. Orange LEDs on the front panel clearly indicate the currently selected port. DisplayPort and USB cables for all eight ports are included, enabling immediate setup after delivery with no software installation required.

The built-in dual-port USB 3.1 Gen 1 hub allows USB peripherals such as printers, storage devices, scanners, webcams, and flash drives to be shared across all connected computers. Each USB port operates independently, so one computer can print while another simultaneously accesses a storage device. USB 3.1 Gen 1 backward compatibility ensures older USB devices work without issue. LED indicators show which computer has control of each connected peripheral.

Audio output supports 2.1-channel surround sound with full bass response, with independent audio switching that allows audio from one computer to continue while the video console is switched to a different computer. Front-panel audio jacks take priority over rear-panel jacks. The heavy-duty metal housing includes 1U rack-mount hardware for EIA-standard 19-inch racks and rubber feet for desktop deployment.

Key Features

• 8-Port DisplayPort KVM Switch — Controls up to eight computers or DisplayPort-enabled devices from a single monitor, keyboard, and mouse, consolidating multi-computer workstations into a clean, organized setup.
• True 4K Video at 60 Hz — Supports 4096 x 2160 resolution at 60 Hz for professional-grade display output in broadcast, design, and technical workstation environments.
• Cascade to 128 Computers — Two-level cascading with additional B024-DPU08 units extends centralized control to up to 128 computers from a single console setup.
• Dual-Port USB 3.1 Gen 1 Hub — Shares USB peripherals including printers, storage devices, and webcams across all eight connected computers, with independent port operation and backward compatibility.
• 2.1-Channel Audio with Independent Switching — Supports surround sound audio with full bass response; audio and video sources switch independently, allowing audio from one computer while viewing another.
• Multi-Method Port Switching — Switch between computers via front-panel buttons, RS-232, keyboard hot keys, multi-lingual OSD, or Auto Scan mode for hands-free cycling through active ports.
• Multi-Display Stacking — Stack up to eight B024-DPU08 units to enable dual, triple, quad, or up to eight-display configurations without additional console hardware.
• 1U Rack-Mount and Desktop Deployable — Includes 1U rack-mount hardware for EIA-standard 19-inch racks and non-slip rubber feet for desktop use.
• No Software Required — Plug-and-play installation works with Windows, macOS, Sun, and Linux without drivers, simplifying setup and ongoing maintenance.
• Included Cables for All Ports — Ships with DisplayPort and USB cables for all eight ports, enabling complete installation without additional accessory purchases.

Typical Applications

• Broadcast studio multi-computer workstation control
• Commercial IT server and workstation management
• Government and enterprise operations center desktops
• Post-production and media editing workstations
• Training room and all-hands room AV workstation management

Technical Specifications

Frequently Asked Questions

What is the difference between the B024-DPU08 and the B024-DPU16?

The B024-DPU08 supports 8 computers, while the B024-DPU16 supports 16. Both use the same DisplayPort/USB platform with 4K 60Hz video, audio, and USB hub sharing. Choose the B024-DPU08 for smaller workgroups or installations where 8 ports are sufficient; the B024-DPU16 suits larger multi-computer environments or those requiring direct control of up to 256 computers via cascading.

Does the B024-DPU08 support both DisplayPort and HDMI monitors?

Yes. The console output port supports both DisplayPort and HDMI monitor connections. The eight computer-side ports use DisplayPort connections.

Can I expand beyond 8 ports using additional B024-DPU08 units?

Yes. Two levels of B024-DPU08 cascading allow centralized control of up to 128 computers from a single console. Each cascaded unit adds 8 ports.

Can I share a USB printer or storage device across all eight computers?

Yes. The built-in dual-port USB 3.1 Gen 1 hub allows USB peripherals to be shared across all eight connected computers, with independent port operation so multiple devices can be in use simultaneously.

Is software installation required?

No. The B024-DPU08 is plug-and-play and requires no software or driver installation. It is compatible with Windows, macOS, Sun, and Linux.

Can I use this KVM switch for multi-display setups?

Yes. Up to eight B024-DPU08 units can be stacked to enable multi-display configurations from dual-display through eight-display scenarios depending on the stack size.
