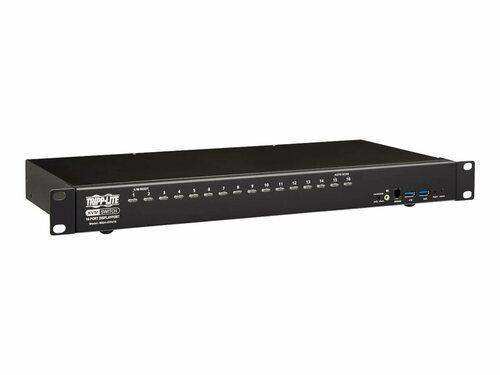

Tripp Lite B024-DPU16 – 16-Port DisplayPort USB KVM Switch, 4K 60Hz, 1U Rack-Mount

Product Overview

The Tripp Lite B024-DPU16 is a 16-port DisplayPort/USB KVM switch with integrated audio and USB peripheral sharing, designed for enterprise workstations, broadcast studios, and commercial IT environments where multiple computers must be controlled from a single monitor, keyboard, and mouse setup. Supporting true 4K video at 4096 x 2160 resolution and 60 Hz refresh rate, the B024-DPU16 delivers high-fidelity display output suitable for professional video, design, and technical workstations. Cascading two levels of B024-DPU16 units allows centralized control of up to 256 computers from one console. The unit mounts in 1U of a standard 19-inch rack or deploys on a desk surface.

Product Description

The B024-DPU16 connects up to 16 computers or DisplayPort-enabled devices to a single DisplayPort or HDMI monitor, USB keyboard, and USB mouse. In addition to desktop and notebook computers, the switch is compatible with media centers, gaming systems, Blu-ray players, cable and satellite boxes, and other DisplayPort-enabled devices. All 16 connected devices share the console outputs, eliminating the need for multiple monitors and reducing workspace clutter in control rooms, post-production suites, and technical operations centers.

Port switching is accomplished via front-panel push buttons, RS-232 commands, keyboard hot keys, or the multi-lingual on-screen display (OSD) with text-based interface. Auto Scan mode automatically cycles through connected computers in five-second intervals. Orange LEDs on the front panel indicate the currently selected port. Included DisplayPort and USB cables simplify initial setup, and the plug-and-play design requires no software installation.

A built-in dual-port USB 3.1 Gen 1 hub allows USB peripherals such as printers, hard drives, scanners, webcams, and flash drives to be shared across all connected computers. The USB ports operate independently, so a user can print from one computer while working on another. Audio output supports 2.1-channel surround sound with full bass response, and independent audio switching allows audio from one computer to continue while the video console is switched to a different computer. Front-panel audio jacks take priority over rear-panel jacks for flexible monitoring setups.

Up to eight B024-DPU16 units can be stacked to support multi-display configurations, enabling dual-display, triple-display, quad-display, or up to eight-display scenarios depending on the number of stacked stages. The heavy-duty metal housing includes 1U rack-mount hardware for EIA-standard 19-inch racks and rubber feet for desktop deployment.

Key Features

• 16-Port DisplayPort KVM Switch — Controls up to 16 computers or DisplayPort-enabled devices from a single monitor, keyboard, and mouse, reducing workspace footprint in multi-computer environments.
• True 4K Video at 60 Hz — Supports 4096 x 2160 resolution at 60 Hz for professional-grade video output suitable for broadcast, design, and technical workstations.
• Cascade Up to 256 Computers — Two-level cascading with additional B024-DPU16 units extends control to up to 256 computers from a single console.
• Dual-Port USB 3.1 Gen 1 Hub — Built-in USB hub allows sharing of USB peripherals such as printers, storage devices, and webcams across all connected computers, with independent port operation.
• 2.1-Channel Audio with Independent Switching — Supports surround sound with full bass response; audio and video sources can be independently switched, allowing audio from one computer while viewing another.
• Multi-Method Port Switching — Switch between computers using front-panel push buttons, RS-232 commands, keyboard hot keys, or the multi-lingual OSD menu, plus Auto Scan mode for hands-free cycling.
• Multi-Display Stacking — Stack up to eight B024-DPU16 units to create dual, triple, quad, or up to eight-display setups without additional console hardware.
• 1U Rack-Mount and Desktop Deployable — Includes 1U rack-mount hardware for EIA-standard 19-inch racks and rubber feet for desktop use, supporting flexible deployment options.
• No Software Required — Plug-and-play design works with Windows, macOS, Sun, and Linux without driver installation, simplifying deployment and maintenance.
• Included Cables — Ships with DisplayPort and USB cables for each port, allowing immediate setup without additional accessory purchases.

Typical Applications

• Broadcast studio multi-computer control
• Commercial IT server and workstation management
• Government and enterprise operations centers
• Post-production and media workstations
• All-hands room and training room AV workstation control

Technical Specifications

Frequently Asked Questions

Does the B024-DPU16 support both DisplayPort and HDMI monitors?

Yes. The console output supports both DisplayPort and HDMI monitor connections, providing flexibility if your primary display uses HDMI rather than DisplayPort. The 16 computer-side ports use DisplayPort connections.

Can I cascade multiple B024-DPU16 units to manage more than 16 computers?

Yes. Two levels of B024-DPU16 cascading allow centralized control of up to 256 computers from a single console. Each unit in the second level adds 16 ports, and the primary unit acts as the control hub for all cascaded ports.

What resolution does the B024-DPU16 support?

The B024-DPU16 supports true 4K resolution at 4096 x 2160 pixels and 60 Hz refresh rate, making it suitable for professional video production, design workstations, and high-resolution technical displays.

Can I share a printer or other USB device across all 16 connected computers?

Yes. The built-in dual-port USB 3.1 Gen 1 hub allows USB peripherals to be shared across all connected computers. The ports operate independently, so one computer can use the printer while another accesses a storage device simultaneously.

Is software installation required to use the B024-DPU16?

No. The B024-DPU16 is plug-and-play and requires no software installation. It is compatible with Windows, macOS, Sun, and Linux operating systems.

Can I use this KVM switch for multi-display setups?

Yes. Up to eight B024-DPU16 units can be stacked to create multi-display configurations ranging from dual-display up to eight-display setups, depending on the number of stacked stages.
