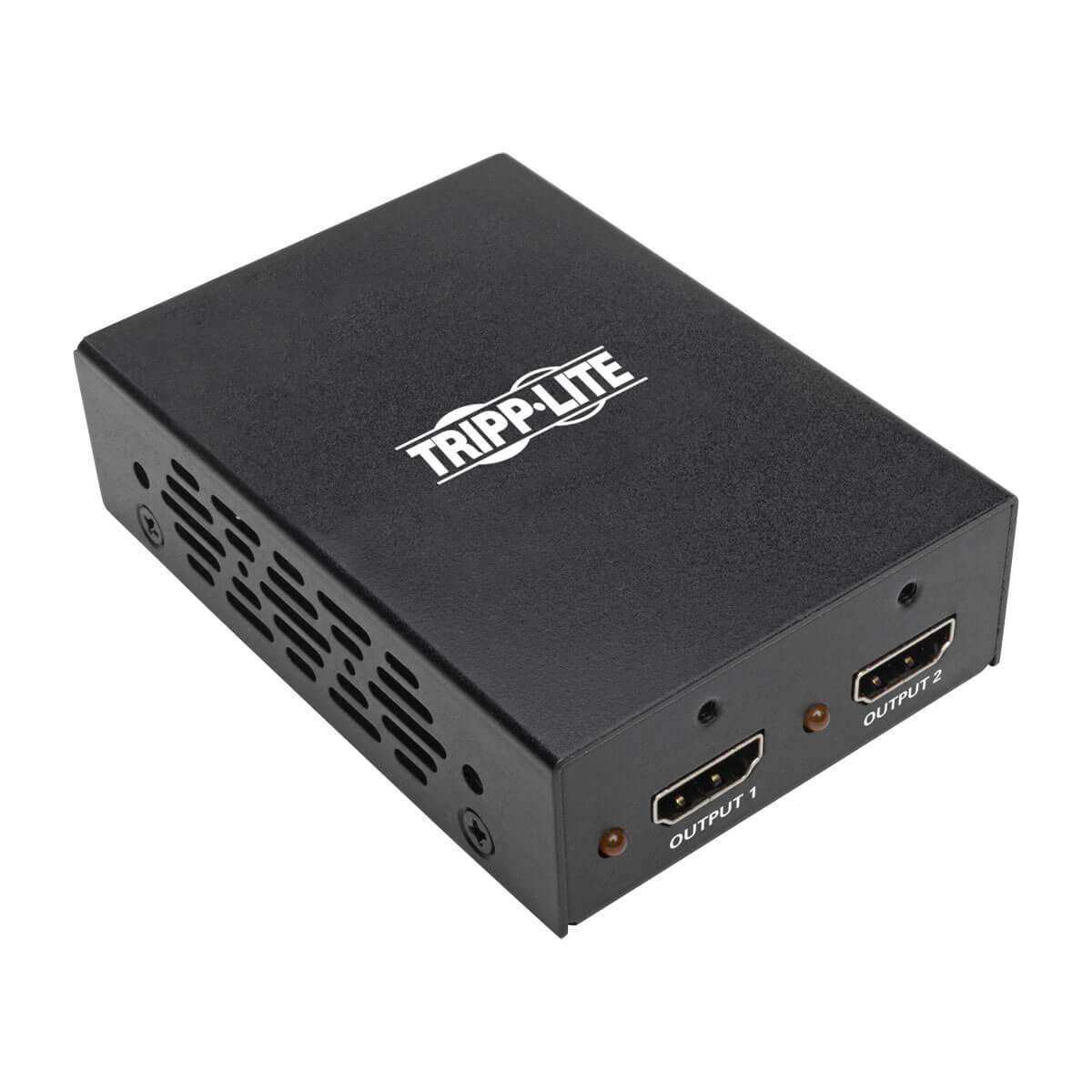

Tripp Lite B118-002-UHD-2 – 2-Port 4K HDMI Splitter HDCP 2.2 TAA

Product Overview

The Tripp Lite B118-002-UHD-2 is a commercial-grade 2-port HDMI splitter that distributes a single HDMI source signal to two displays simultaneously at Ultra HD 4K resolution up to 3840 x 2160 at 60 Hz. Supporting HDMI 2.0 and HDCP 2.2, this 4K HDMI splitter is suitable for digital signage deployments, commercial AV installations, classrooms, conference rooms, and presentation environments where one source must feed multiple screens. The unit is TAA compliant, making it eligible for U.S. government procurement contracts. With plug-and-play operation and no software required, the B118-002-UHD-2 can be deployed immediately in virtually any setting.

Product Description

The B118-002-UHD-2 takes a single HDMI source—such as a computer, Blu-ray player, streaming device, or media server—and distributes the full audio/video signal to two HDMI displays at the same time. Both outputs receive an identical signal at the same resolution and frame rate, making this splitter appropriate for mirrored-display digital signage, dual-screen presentation setups, and redundant display configurations in commercial environments.

The splitter supports HDMI 2.0 video resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, including 3D content and High Dynamic Range (HDR) for richer contrast and expanded color accuracy on compatible displays. HDCP 2.2 compliance allows protected content from streaming services and Blu-ray sources to pass through without signal complications. The unit supports 36-bit Deep Color (12 bits per channel) for enhanced color fidelity.

Audio formats supported include DTS-HD, Dolby TrueHD, Dolby Digital Plus, and LPCM 7.1-channel surround sound, ensuring full-fidelity audio distribution to both outputs simultaneously. When used with 28 AWG HDMI cabling, the splitter can transmit the full 4K signal up to 15 feet from the source device. For larger installations, up to three levels of B118-002-UHD-2 units can be cascaded together to distribute the source signal to as many as 32 displays.

The metal housing provides durability in permanent AV installations. No software, drivers, or configuration are required—the unit is plug-and-play. Tripp Lite backs the B118-002-UHD-2 with a 3-year limited warranty.

Key Features

• 4K at 60 Hz (HDMI 2.0) — Distributes UHD 4K video at up to 3840 x 2160 (and 4096 x 2160) at 60 Hz to both output displays simultaneously.
• HDCP 2.2 Compliance — Passes protected content from streaming services, 4K Blu-ray players, and other HDCP-encrypted sources without signal interruption.
• HDR Support — Carries High Dynamic Range signals to both outputs for expanded contrast and color accuracy on HDR-capable displays.
• Multi-Format Audio — Supports DTS-HD, Dolby TrueHD, Dolby Digital Plus, and LPCM 7.1-channel surround sound audio distribution to both outputs.
• 36-Bit Deep Color — Supports 36-bit Deep Color (12 bits per channel) for enhanced color depth on compatible displays.
• Cascadable to 32 Displays — Up to three levels of splitters can be chained together to distribute the source signal to as many as 32 displays, enabling scalable digital signage networks.
• 15-Foot Signal Range — Transmits a full 4K signal up to 15 feet when used with 28 AWG HDMI cabling.
• 3D Content Support — Compatible with 3D video sources and displays.
• TAA Compliant — Trade Agreements Act compliant, qualifying the unit for U.S. government and federal procurement use.
• Plug-and-Play, No Drivers Required — Operates immediately upon connection without software installation or configuration.
• Metal Housing — Durable metal enclosure designed for permanent commercial AV and digital signage installations.
• 3-Year Limited Warranty — Tripp Lite backs the B118-002-UHD-2 with a 3-year limited warranty.
