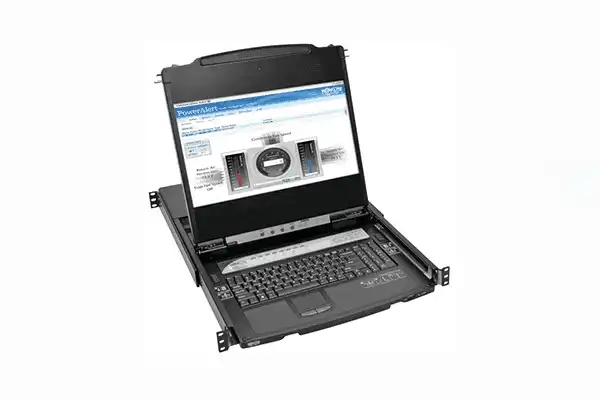

Tripp Lite B030-008-17-IP – 8-Port 1U Rackmount HDMI KVM Console with IP Remote Access

Product Overview

The Tripp Lite B030-008-17-IP NetDirector 8-Port 1U Rack-Mount Console KVM Switch gives IT administrators direct local and remote control over up to eight servers or computers from a single 17-inch Full HD LCD console occupying just 1U of rack space. Designed for data centers, server rooms, and enterprise IT environments, this rackmount KVM console with IP remote access supports LAN, WAN, and Internet connectivity, allowing technicians to manage systems from anywhere without being on-site. The dual-rail drawer design stores the keyboard neatly in the rack while keeping the display visible, and the unit is TAA compliant for GSA Schedule purchases.

Product Description

The B030-008-17-IP combines an 8-port HDMI KVM switch, 17-inch 1920x1080 LCD monitor, keyboard, and touchpad into a compact 1U rackmount housing. Built-in IP remote access lets authorized users control connected servers via LAN, WAN, or the Internet using a standard web browser or the included Windows/Java client applications — no dedicated KVM server required. Up to 64 user accounts can be configured, with support for up to 32 concurrent remote sessions when multi-user access is enabled. Enterprise-grade security features include 1024-bit RSA, 256-bit AES, 56-bit DES, and 128-bit SSL encryption, plus RADIUS and LDAP/S server authentication for centralized access control.

Switching between connected servers is straightforward using the front-panel push buttons, the on-screen display menu, or hot key commands. Auto-scan mode cycles through active ports automatically, and panel array mode allows simultaneous monitoring of multiple connected systems. Computers can be added or removed from the switch without powering it down, minimizing disruption to connected systems. A Windows-based log server records activity events to a searchable database for audit purposes. DDC emulation automatically adjusts display settings on each connected computer for optimal output to the LCD panel.

The B030-008-17-IP is compatible with all major operating systems and web browsers, and flash firmware can be updated over the network without removing the unit from the rack. Heavy-duty steel housing ensures reliable performance in high-use commercial and government environments.

Key Features

• 8-Port HDMI KVM Console in 1U — Controls up to eight servers or computers from a single rack-mount drawer, consolidating keyboard, touchpad, and 17-inch LCD into one space-efficient unit.
• Built-In IP Remote Access — Provides browser-based and client software access over LAN, WAN, or Internet, enabling technicians to manage servers without being physically present in the data center.
• Full HD 17-Inch LCD Display — Supports video resolutions up to 1920x1080, with DDC emulation automatically configuring display settings on each connected server for accurate output.
• Dual-Rail Drawer Design — Slides the keyboard into the rack independently of the monitor, allowing the display to remain in view while the keyboard is stowed, saving rack space without sacrificing usability.
• Multi-User Access with 64 User Accounts — Supports up to 64 authorized user accounts and up to 32 simultaneous remote sessions, with multi-level password security and role-based access control.
• Enterprise Security Protocols — Implements 1024-bit RSA, 256-bit AES, 56-bit DES, and 128-bit SSL encryption, with RADIUS and LDAP/S authentication for integration with existing enterprise identity systems.
• Flexible Port Switching — Switch between connected servers using front-panel push buttons, on-screen display menus, or keyboard hot keys, with auto-scan and panel array modes for efficient multi-server monitoring.
• Hot-Swap Server Connections — Add or remove connected computers without powering down the KVM switch, reducing downtime during infrastructure changes.
• TAA Compliant — Meets Trade Agreements Act requirements, making it eligible for GSA Schedule and federal government procurement.
• Network Protocol Support — Compatible with IPv4, IPv6, TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense, and Ping for broad network integration.

Typical Applications

• Data center server room management
• Government and federal IT infrastructure
• Enterprise network operations centers
• Commercial IT server closets
• Multi-purpose server management environments

Technical Specifications

Frequently Asked Questions

What cable kit do I need to connect servers to the B030-008-17-IP?

Each connected server requires a P782-XXX-DH Series KVM Cable Kit, sold separately. The cable kit handles both the HDMI video and USB connections between the switch and the server. Contact Creation Networks for help selecting the correct cable length for your rack configuration.

Can I access servers remotely if I am off-site?

Yes. The B030-008-17-IP has built-in IP remote access that works over LAN, WAN, or the Internet. You can connect via a standard web browser or using the included Windows or Java client applications. No separate KVM over IP server is required.

How many users can access the switch simultaneously?

Up to 64 user accounts can be created. When multi-user operation is enabled, up to 32 remote users can be logged in concurrently. Local console access is separate from remote sessions.

Is the B030-008-17-IP compatible with my existing IT infrastructure?

The switch works with all major operating systems including Windows, Linux, and macOS, and is compatible with all major web browsers. It supports standard enterprise network protocols including RADIUS and LDAP/S for authentication integration.

Can I add or remove servers without shutting down the KVM switch?

Yes. The B030-008-17-IP supports hot-swap connections, so servers can be added or removed without powering down the switch, avoiding unnecessary downtime during infrastructure changes.

Is this product eligible for government procurement?

Yes. The B030-008-17-IP is TAA (Trade Agreements Act) compliant, making it eligible for GSA Schedule purchases and federal government procurement programs.

What is the warranty on this product?

Tripp Lite provides a 3-year limited warranty on the B030-008-17-IP. Extended warranty options are available through Creation Networks.

What firmware update options are available?

Flash firmware can be updated over the network without removing the unit from the rack, reducing maintenance downtime in production environments.
