TOA RS-170 – N-8000 Series Outdoor Vandal-Resistant Sub-Station
Product Overview

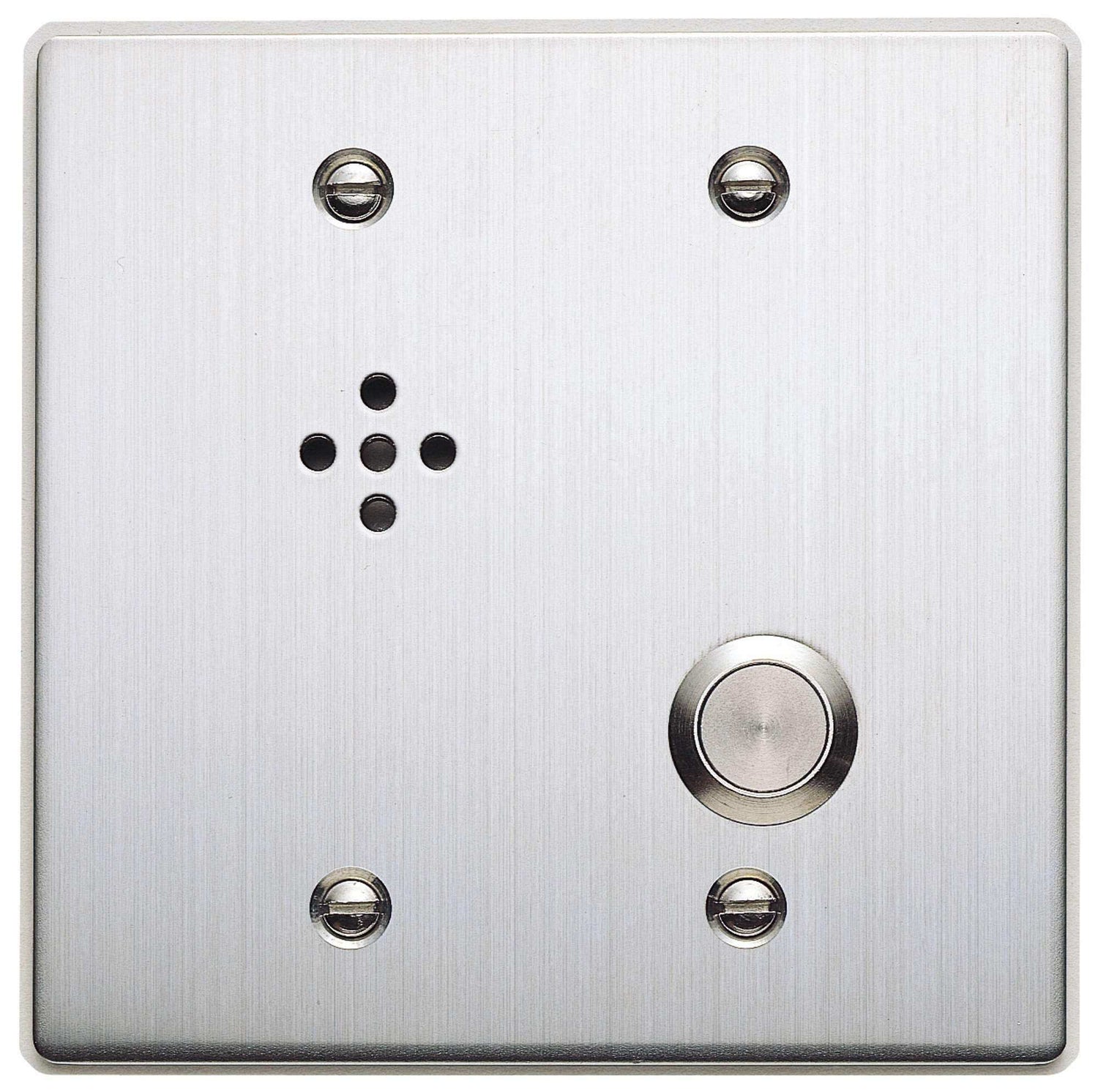

The TOA RS-170 is an outdoor vandal-resistant sub-station for the N-8000 Series IP Intercom System. With a heavy-duty stainless steel faceplate, weather-resistant circuit board coating, and an operating temperature range of −10 °C to +50 °C, the RS-170 withstands the conditions found at building entries, parking structures, and outdoor access points.
Product Description
The RS-170 uses 2-core shielded cable, offering transmission distances up to 1.3 km with 0.9 mm (AWG 19) wire — practical for campus perimeters and large facilities. A 4 cm cone-type speaker delivers 1 W audio output at 625 Ω, and half-duplex conversation with any registered master station is initiated by the metal call button. Circuit boards receive a conformal coating to handle moisture. Mounting hardware for both No. 6-32 UNC and M4 × 25 screws is included, accommodating standard 2-gang flush-mount boxes. Optional wall-mount boxes YC-822 (indoor) and YC-823 (outdoor) provide surface-mount options.
Key Features
- Outdoor vandal- and weather-resistant sub-station for N-8000 intercom
- Heavy-duty stainless steel faceplate and metal call button
- Weather-resistant conformal coating on circuit boards
- 2-core shielded cable; range up to 1.3 km (0.9 mm AWG 19 wire)
- 4 cm cone speaker; 1 W / 625 Ω; half-duplex communication
- Operating temperature: −10 °C to +50 °C
- 120 × 120 × 57.5 mm; 540 g
Technical Specifications
| Rated Input | 1 W |
|---|---|
| Rated Impedance | 625 Ω (1 W / 25 V) |
| Internal Speaker | 4 cm cone-type |
| Wiring | 2-core shielded cable |
| Transmission Range | 0.5 km (AWG24) / 0.8 km (AWG22) / 1.3 km (AWG19) |
| Communication Mode | Half-duplex |
| Faceplate | Stainless steel, hairline finish |
| Call Button | Metal |
| PCB Treatment | Weather-resistant conformal coating |
| Operating Temperature | −10 °C to +50 °C |
| Dimensions | 120 (W) × 120 (H) × 57.5 (D) mm |
| Weight | 540 g |
