TOA RS-141 – Handset for N-8000 Series IP Intercom
Product Overview

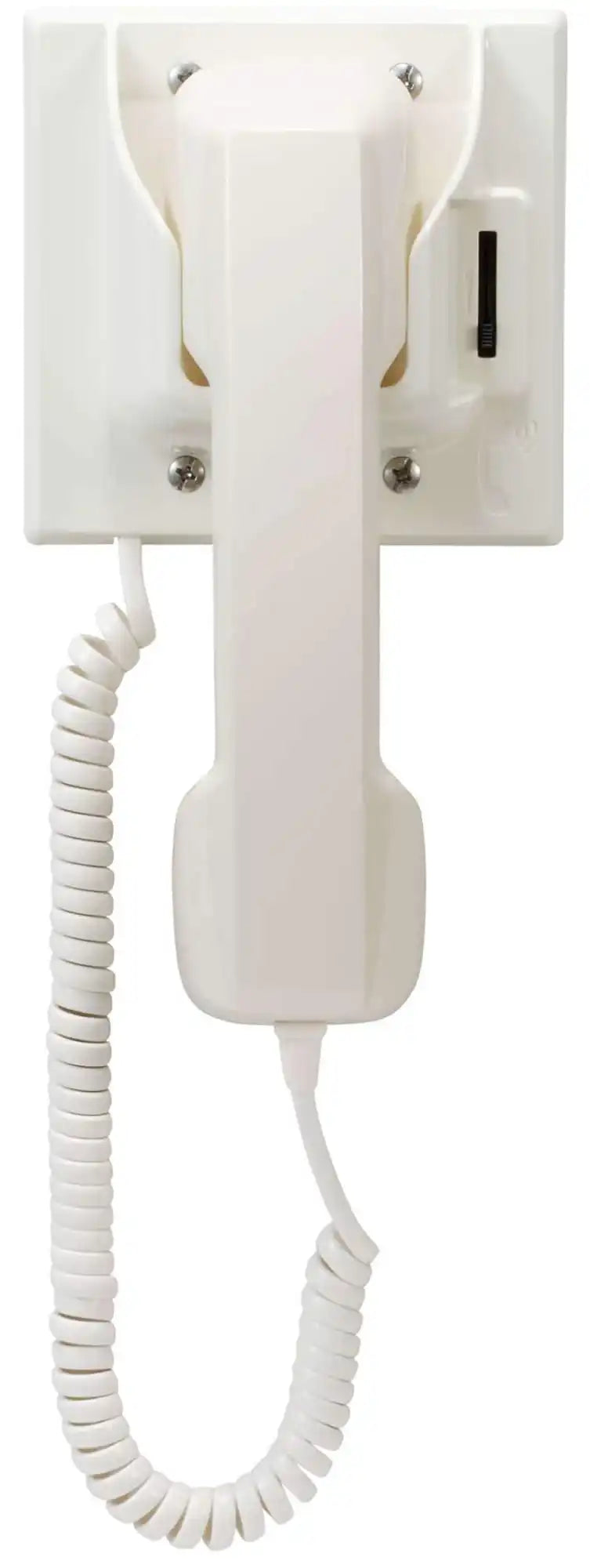

The TOA RS-141 is a handset accessory for the RS-140 switch panel in the N-8000 Series IP intercom system. Lifting the handset automatically initiates a call to a preprogrammed master station, enabling private handset conversations without pressing additional buttons.
Product Description
The RS-141 connects to the RS-140, RS-142, RS-143, or RS-144 call panel sub-stations and provides a lift-to-call handset interface. The slide volume control on the receiver side gives users local level adjustment of 12 to 18 dB. For mounting, the RS-141 supports standard US 2-gang flush electrical boxes (YC-302, optional) or indoor surface-mount boxes (YC-822, optional). Mounting screws for both box types are included. For indoor use only.
Key Features
- Lift-to-call handset for RS-140, RS-142, RS-143, and RS-144 switch panels
- Automatically initiates a call to the preprogrammed master station when lifted
- Dynamic receiver with slide volume control (12 to 18 dB range)
- Electret condenser transmitter for clear voice pickup
- Mounts in standard US 2-gang flush or surface-mount electrical box
- ABS resin construction, pale white finish; mounting screws included
Technical Specifications
| Handset Receiver Type | Dynamic |
|---|---|
| Handset Transmitter Type | Electret condenser |
| Wiring | Two-core shielded cable |
| Receiver Volume Control | Slide volume, 12 to 18 dB maximum control level |
| Compatible Box (Flush) | 2-gang electrical box YC-302 (optional) |
| Compatible Box (Surface) | Indoor wall-mount box YC-822 (optional) |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Finish | ABS resin, pale white |
| Dimensions (W x H x D) | 116 x 220 x 71 mm (4.57 x 8.66 x 2.80 in.) |
| Weight | 350 g (0.77 lb) |
