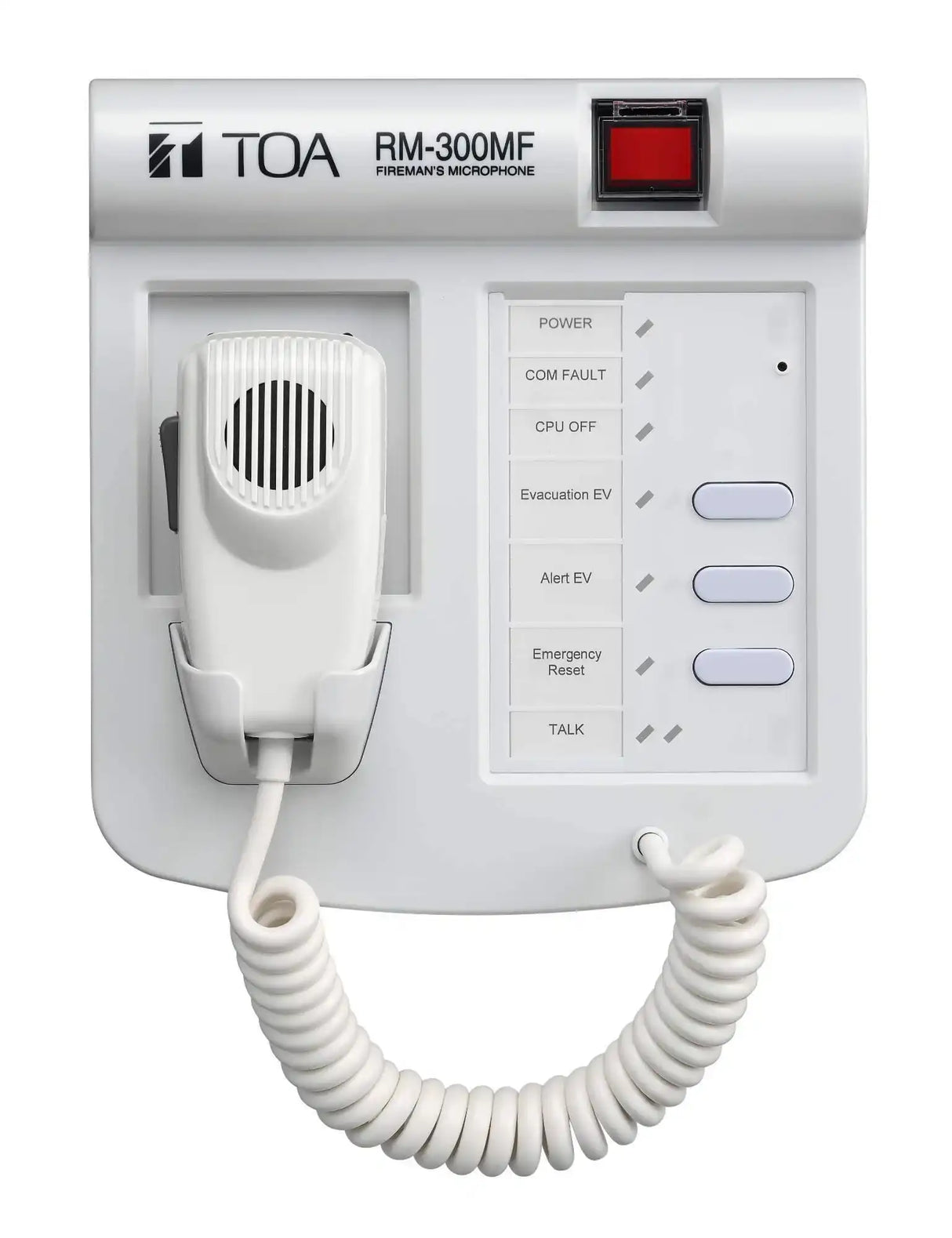

TOA Electronics Emergency Remote Microphone - RM-300MFPS

Product Overview

The TOA RM-300MF is an emergency fireman's microphone designed exclusively for the VM-3000 Series voice evacuation system. It gives first responders and trained operators direct control to start and stop pre-recorded evacuation and alert messages and to make live emergency announcements. A dedicated emergency activation key and a CPU bypass switch allow broadcasts to reach all zones even in the event of a system CPU error. The RM-300MF serves as the central operator interface for life-safety paging in commercial and institutional buildings.

Product Description

The RM-300MF connects to the VM-3000 system over shielded CPEV cable or Category 5 shielded twisted-pair (CAT5-STP), with a total run up to 800 m, and is powered at 24 V DC from the system. It includes a unidirectional dynamic microphone with a talk key and a switchable compressor for intelligible speech under pressure. Dedicated keys cover emergency, evacuate, alert, and emergency-reset functions, while a comprehensive indicator set reports power, emergency, communication failure, CPU-off, evacuation and alert announcements, microphone in-use, and external equipment status. Up to three RM-320F extension units connect to the RM-300MF to add zone-selection and failure-acknowledgment keys. Microphone and buzzer volume controls let the operator balance announcement levels for the room. As a commercial-grade life-safety component, it integrates directly into the VM-3000 paging and emergency broadcast chain. To build out the amplifier side of a system, browse TOA VM-3000 voice evacuation products at Creation Networks.

Key Features

• Emergency activation key — Lets authorized operators trigger emergency mode and live announcements immediately.
• Pre-recorded message control — Starts and stops automated evacuation and alert broadcasts on demand.
• CPU bypass switch — Sends emergency broadcasts to all zones even if the system CPU fails.
• Compressor microphone — Unidirectional dynamic element with switchable compression keeps speech clear under stress.
• RM-320F expansion — Supports up to three extension units for additional zone-selection and acknowledgment keys.
• Long cable runs — Connects over CPEV or CAT5-STP for a total line length up to 800 m.
• Comprehensive status indicators — Reports power, emergency, communication failure, and announcement states at a glance.

Typical Applications

• Government space
• House of worship
• Auditorium
• Commercial meeting space
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

Which system is the RM-300MF compatible with? It is designed exclusively for the TOA VM-3000 Series voice evacuation and public address system.

How does it install and integrate? It connects to the VM-3000 system over shielded CPEV or CAT5-STP cable to an M3 screw terminal, with a total cable run up to 800 m, and is powered at 24 V DC from the system.

What happens if the system CPU fails? A CPU bypass switch lets the microphone broadcast emergency announcements to all zones even during a CPU error.

Can I add more function keys? Yes. Up to three RM-320F extension units connect to the RM-300MF to assign zone-selection or failure-acknowledgment functions.

Is it suitable for life-safety installations? Yes. It is purpose-built for firefighter and operator use during emergencies as part of a VM-3000 voice alarm system; follow local code and AHJ requirements.

What warranty and support apply? The unit carries the TOA manufacturer warranty; contact Creation Networks for warranty, availability, and system-integration support.
