TOA WM-5225-AM M1 UHF Handheld Condenser Wireless Microphone
Overview

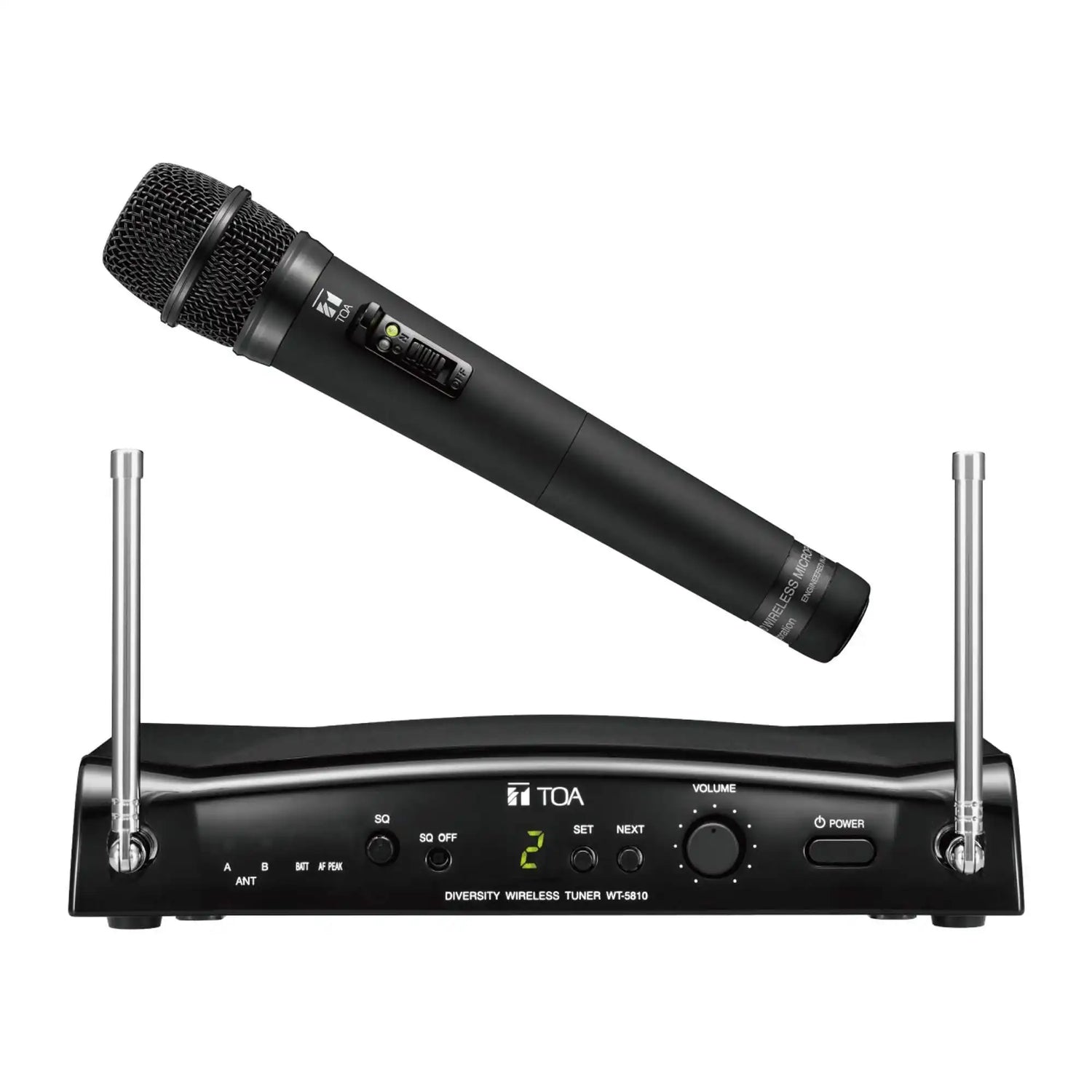

The TOA WM-5225-AM -M1 is a UHF handheld wireless microphone featuring an electret condenser capsule for accurate, natural voice reproduction. Part of the TOA 5000 Series UHF wireless system, it operates in the AM band (506–538 MHz) with 64 PLL-synthesized channel selections and handles up to 126 dB SPL, making it a dependable choice for presentations, live performance, and installed AV applications.
Description
The WM-5225-AM -M1 transmits at up to 50 mW ERP for reliable coverage across typical venue distances. Its slim, lightweight design includes an on/off switch that doubles as a rolling stopper to keep the microphone stationary on a lectern or flat surface when set down. Battery life is approximately 10 hours on a standard AA alkaline battery, or up to 13 hours with the optional WB-2000 Ni-MH rechargeable battery, which charges in the optional BC-5000 charger without removing it from the microphone. The tone squelch system (32.768 kHz) eliminates the RF burst noise when the transmitter is switched off. Browse all compatible TOA 5000 Series receivers and accessories at Creation Networks.
Key Features
- Electret condenser capsule, unidirectional – accurate voice reproduction with high sensitivity and 95 dB or greater dynamic range when used with WT-5800
- 64 PLL-synthesized channels – selectable across 506–538 MHz; up to 16 channels operate simultaneously without intermodulation
- 126 dB SPL maximum input – handles the most demanding vocal sources cleanly
- Rolling stopper on/off switch – dual function: activates or mutes the mic and prevents rolling off flat surfaces
- Dual battery options – AA alkaline (approx. 10 h) or optional WB-2000 rechargeable Ni-MH (approx. 13 h)
- Tone signal interference protection – 32.768 kHz tone squelch eliminates burst noise on transmitter power-off
Technical Specifications
| Specification | Value |
|---|---|
| Microphone Element | Electret condenser, unidirectional |
| Modulation | Frequency modulation |
| Frequency Range | 506–538 MHz, UHF (AM band) |
| Channel Selection | 64 channels |
| RF Carrier Power | 50 mW or less |
| Tone Frequency | 32.768 kHz |
| Maximum Input Level | 126 dB SPL |
| Maximum Deviation | ±40 kHz |
| Audio Frequency Response | 100 Hz–15 kHz |
| Dynamic Range | 95 dB or more (with WT-5800) |
| Battery Life | Approx. 13 h (WB-2000 rechargeable) / 10 h (AA alkaline) |
| Antenna | Built-in |
| Operating Temperature | –10°C to +50°C |
| Dimensions | Ø43.6 × 231.5 mm |
| Weight | 180 g (with battery) |
