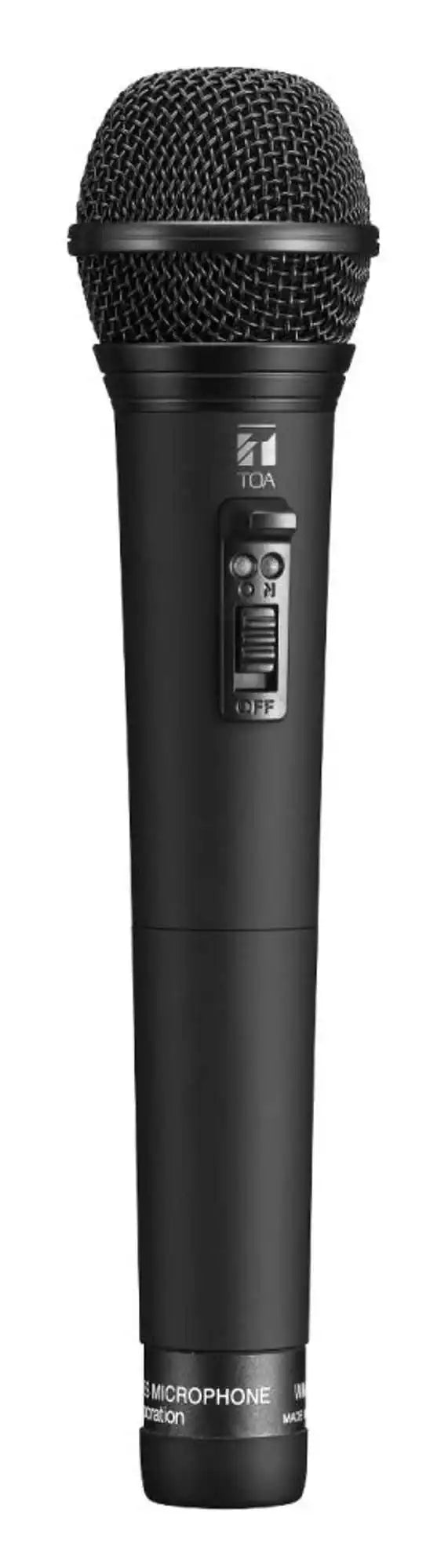

TOA Electronics Wireless microphone - WM-5265 H01
Overview
DEAL: On Sale — The TOA WM-5265 H01 is a UHF PLL synthesizer wireless handheld microphone operating in the 576–606 MHz frequency band with 64 selectable channels. Its dynamic unidirectional (hyper-cardioid) capsule handles up to 132 dB SPL, making it equally capable for speech reinforcement and vocal performance in installed sound environments.
Description
Built around a dynamic hyper-cardioid element, the WM-5265 H01 delivers a 100 Hz to 15 kHz audio frequency response with a dynamic range exceeding 95 dB when paired with the TOA WT-5800 tuner. The PLL synthesizer selects from 64 operating channels to minimize interference in dense RF environments. Maximum carrier power is under 50 mW (factory preset at 10 mW ERP), and optional WB-2000 rechargeable Ni-MH batteries provide up to 13 hours of continuous operation. A power/battery LED indicator, built-in antenna, and rolling-stopper on/off switch complete the package.
Key Features
- 64-channel PLL synthesizer — Operates in 576–606 MHz with 64 selectable channels for interference avoidance in multi-system venues.
- Dynamic hyper-cardioid element — 132 dB SPL handling with 100 Hz–15 kHz response suited for both speech and vocal applications.
- Up to 13-hour battery life — Optional WB-2000 rechargeable Ni-MH provides ~13 h; alkaline AA delivers ~10 h.
- Slim, lightweight design — Ø50 × 229 mm, 205 g with battery for comfortable extended on-stage or presenter use.
- Rolling-stopper on/off switch — Prevents accidental power-off when the mic is set down; doubles as a mic stand holder.
Technical Specifications
| Specification | Detail |
|---|---|
| Microphone Element | Dynamic, unidirectional (hyper-cardioid) |
| Modulation | Frequency modulation (FM) |
| Frequency Range | 576–606 MHz |
| Channel Selection | 64 channels (PLL synthesizer) |
| RF Carrier Power | Less than 50 mW (factory preset: 10 mW ERP) |
| Tone Frequency | 32.768 kHz |
| Maximum Input SPL | 132 dB |
| Maximum Deviation | ±40 kHz |
| Audio Frequency Response | 100 Hz – 15 kHz |
| Dynamic Range | 95 dB or more (with WT-5800) |
| Battery | WB-2000 rechargeable Ni-MH or AA alkaline |
| Battery Life (rechargeable) | Approx. 13 hours |
| Battery Life (alkaline) | Approx. 10 hours |
| Antenna | Built-in |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Operating Humidity | 30%–85% RH (no condensation) |
| Dimensions | Ø50 × 229 mm (Ø1.97" × 9.02") |
| Weight | 205 g (0.45 lb) with battery |
| Included Accessories | Mic holder W3/8 with stand adapter, screwdriver, storage case |
