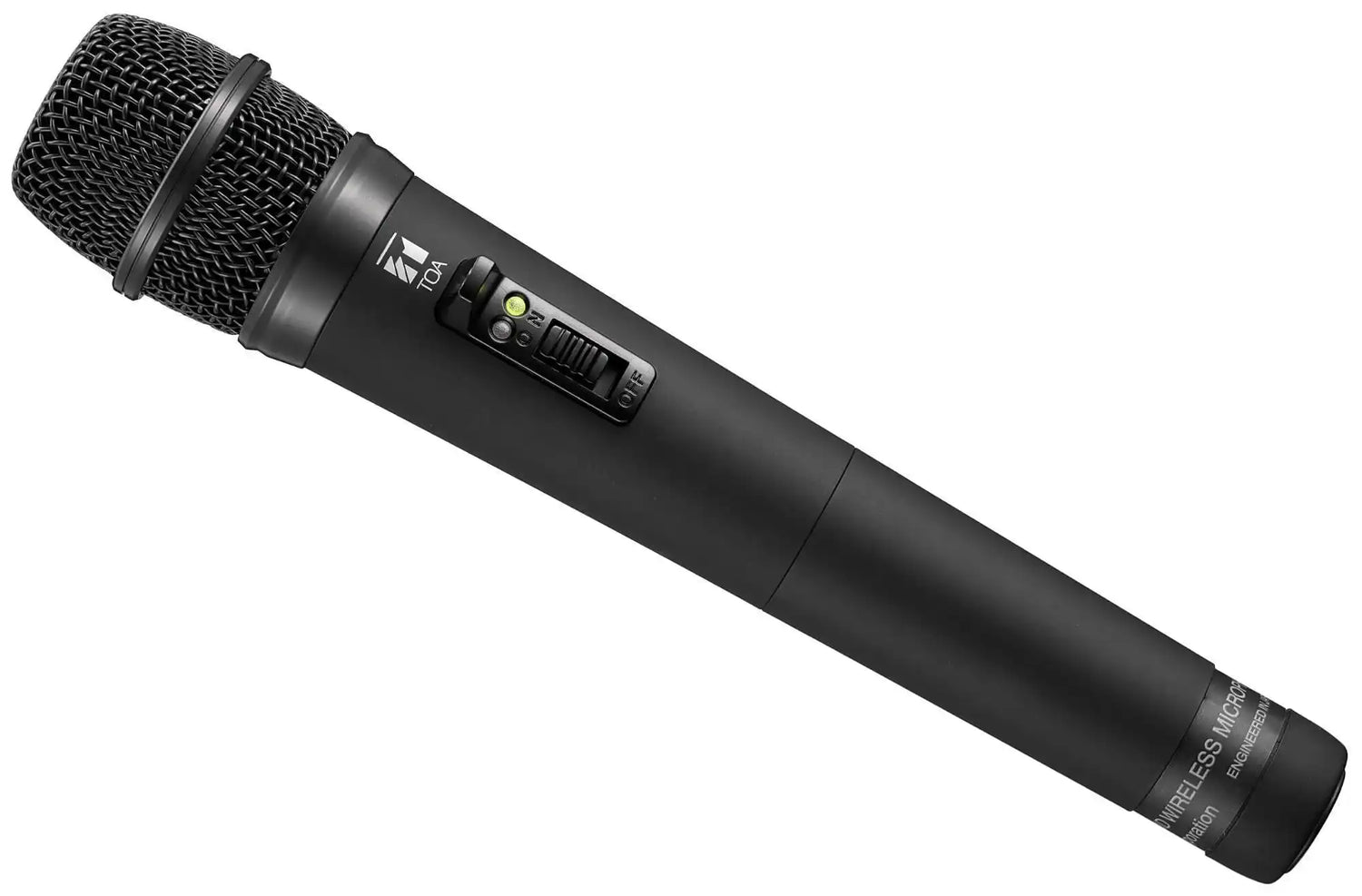

TOA WM-5225 H01 UHF Handheld Condenser Wireless Microphone
Overview
The TOA WM-5225 H01 is a UHF handheld wireless microphone featuring an electret condenser capsule for accurate, natural voice reproduction. Part of the TOA 5000 Series UHF wireless system, it covers the H01 band (576–606 MHz) with 64 PLL-synthesized channel selections and handles up to 126 dB SPL, making it suitable for energetic presenters and standard vocal applications alike.
Description
The WM-5225 H01 transmits at up to 50 mW ERP (factory preset 10 mW) for stable coverage in typical venue environments. Its slim, lightweight body includes an on/off switch that doubles as a rolling stopper to prevent the microphone from rolling off lecterns or stage surfaces. Battery runtime is approximately 10 hours on an AA alkaline battery, or up to 13 hours with the optional WB-2000 Ni-MH rechargeable battery. The 32.768 kHz tone signaling system eliminates the RF burst noise when the transmitter is switched off in busy RF environments. Pair it with TOA WT-5800, WT-5805, or WT-5810 series receivers available at Creation Networks.
Key Features
- Electret condenser capsule, unidirectional – high sensitivity and wide dynamic range for clear, natural voice reproduction on stage and in conference settings
- 64 PLL-synthesized channels – selectable across 576–606 MHz; up to 16 simultaneous interference-free channels in range
- 126 dB maximum SPL handling – accepts high-output vocal sources without distortion
- 95 dB dynamic range – when paired with a WT-5800 series receiver
- On/off switch with rolling stopper – prevents the mic from rolling off flat surfaces; one-touch muting
- Dual battery compatibility – operates on AA alkaline (approx. 10 h) or optional WB-2000 rechargeable Ni-MH (approx. 13 h)
- In-mic battery charging – WB-2000 charges in the optional BC-5000 charger without removing the battery from the microphone
- Tone signal interference protection – 32.768 kHz tone squelch prevents burst noise when the transmitter powers off
Technical Specifications
| Specification | Value |
|---|---|
| Microphone Element | Electret condenser, unidirectional |
| Modulation | Frequency modulation |
| Frequency Range | 576–606 MHz, UHF (H01 band) |
| Channel Selection | 64 channels |
| RF Carrier Power | 50 mW or less (factory preset 10 mW ERP) |
| Tone Frequency | 32.768 kHz |
| Maximum Input Level | 126 dB SPL |
| Maximum Deviation | ±40 kHz |
| Audio Frequency Response | 100 Hz–15 kHz |
| Dynamic Range | 95 dB or more (with WT-5800) |
| Battery Life | Approx. 13 h (WB-2000 rechargeable) / 10 h (AA alkaline) |
| Antenna | Built-in |
| Operating Temperature | –10°C to +50°C |
| Dimensions | Ø43.6 × 231.5 mm |
| Weight | 180 g (with battery) |
