TOA Electronics VX-3000 Digital Amplifier Module 210W@70V - VX-030D...

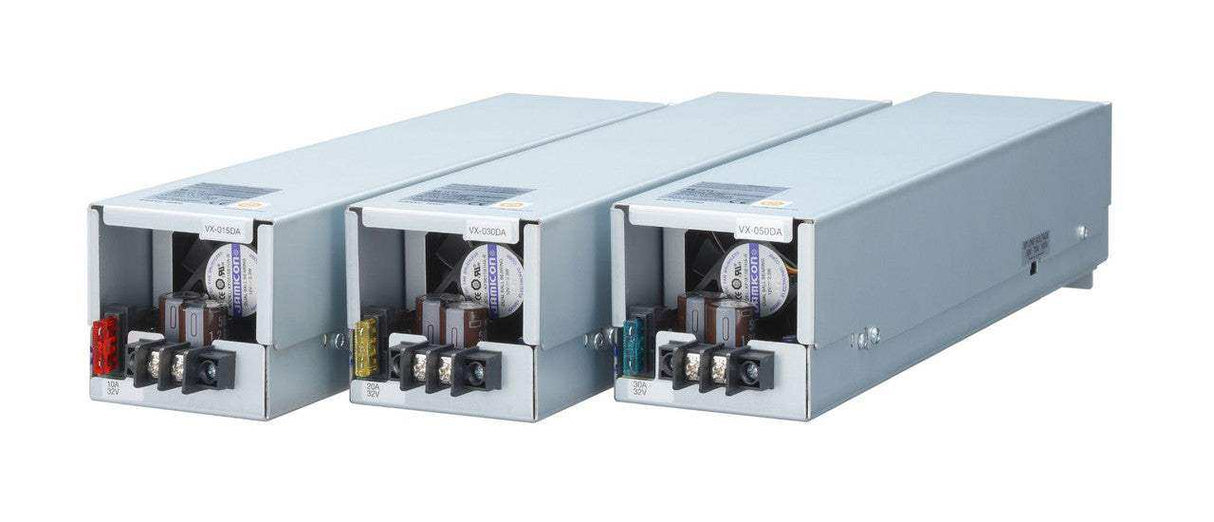

The TOA VX-030DA is a single-channel Class-D digital power amplifier module designed for use within the VX-3000 Series voice evacuation system. Delivering up to 300 W at 100 V (or 210 W at 70 V / 150 W at 50 V), it provides transformer-free constant-voltage output for direct connection to distributed speaker networks. The module's EN54-compliant design ensures suitability for life-safety installations to European fire alarm standards.
As a modular component, the VX-030DA slides into VX-3000 frame units (VX-3004F, VX-3008F, VX-3016F) and draws DC power from the VX-3000DS or VX-3150DS power supply. Class-D amplification minimizes heat generation and power consumption — a standby mode reduces consumption further during non-emergency periods. An accessible rear fuse and removable front dust filter simplify maintenance in installed systems.
Key Features
| Feature | Benefit |
|---|---|
| 300 W Class-D amplifier at 100 V | High-efficiency design reduces heat and energy consumption in continuous-duty systems |
| Selectable 50 / 70 / 100 V output | Adapts to different distributed speaker network voltages without a transformer |
| EN54-compliant design | Meets European fire alarm system standards for life-safety voice evacuation applications |
| Modular frame design | Easy removal and replacement without rewiring — minimizes maintenance downtime |
| Standby power mode | Reduces standby consumption during idle periods in large installations |
| Removable dust filter | Keeps internal components clean in demanding environments |
| 100 dB SNR (A-weighted) | Provides clean, high-intelligibility audio for emergency announcements |
| 82.8 mm wide modular construction | Compact profile minimizes rack footprint in multi-zone, multi-channel systems |
Typical Applications
The VX-030DA is deployed within the TOA VX-3000 voice evacuation platform for EN54-certified fire alarm and emergency PA systems in commercial buildings, hospitals, shopping centers, airports, transit stations, hotels, schools, and high-rise facilities where compliant life-safety audio is required. It is specified for multi-zone installations where independent zone control and high amplifier density are required in a single system frame.
Technical Specifications
| Specification | Details |
|---|---|
| Amplification Class | Class D |
| Power Source | 31 V DC (operating range: 20–33 V DC), M4 screw terminal |
| Power Consumption | 65 W at 31 V DC |
| Rated Output | 300 W (100 V line); 210 W (70 V line); 150 W (50 V line) |
| Output Voltage | 100 V selectable (70 V, 50 V) |
| Min. Impedance Load | 33 Ω (100 V); 23 Ω (70 V); 17 Ω (50 V) |
| Max. Capacitive Load | 0.5 μF |
| Frequency Response | 40 Hz – 20 kHz, –5 to +1 dB (100 V, –30 dB output) |
| Distortion | 1% or less (100 V, rated output, 1 kHz) |
| Signal to Noise Ratio | 100 dB or more (A-weighted, 100 V) |
| Channels | 1 |
| Input Connector | DA CONTROL LINK: 15-pin nylon connector |
| Output Connector | DA OUTPUT LINK: 2-pin nylon connector |
| Operating Temperature | –5 °C to +45 °C (23 °F to 113 °F) |
| Operating Humidity | 90% RH or less (no condensation) |
| Finish | Surface-treated steel plate |
| Dimensions | 82.8 (W) × 91 (H) × 358.2 (D) mm (3.26" × 3.58" × 14.1") |
| Weight | 1.3 kg (2.87 lb) |
| Included Accessories | DA CONTROL LINK cable × 1, DA OUTPUT LINK cable × 1, DC fuse (10 A) × 1 |
| Required Frame Units | VX-3004F, VX-3008F, or VX-3016F |
| Required Power Supply | VX-3000DS or VX-3150DS |
FAQ
- Which VX-3000 frames accept the VX-030DA? It is compatible with the VX-3004F (4-slot), VX-3008F (8-slot), and VX-3016F (16-slot) control unit frames.
- What power supply does it require? It requires the VX-3000DS or VX-3150DS power supply unit and operates at 31 V DC (range: 20–33 V DC).
- Is the VX-030DA EN54 certified? Yes, it is designed to comply with European Standard EN54 for fire alarm and voice evacuation systems.
- Can the output voltage be changed after installation? Yes, the output voltage is user-selectable between 50 V, 70 V, and 100 V to match the installed speaker line.
- How is the module maintained? The rear DC fuse is accessible without removing the module from the frame, and the front dust filter can be removed and cleaned in place.
