TOA U-01S T – Unbalanced Line Input Module
Product Overview

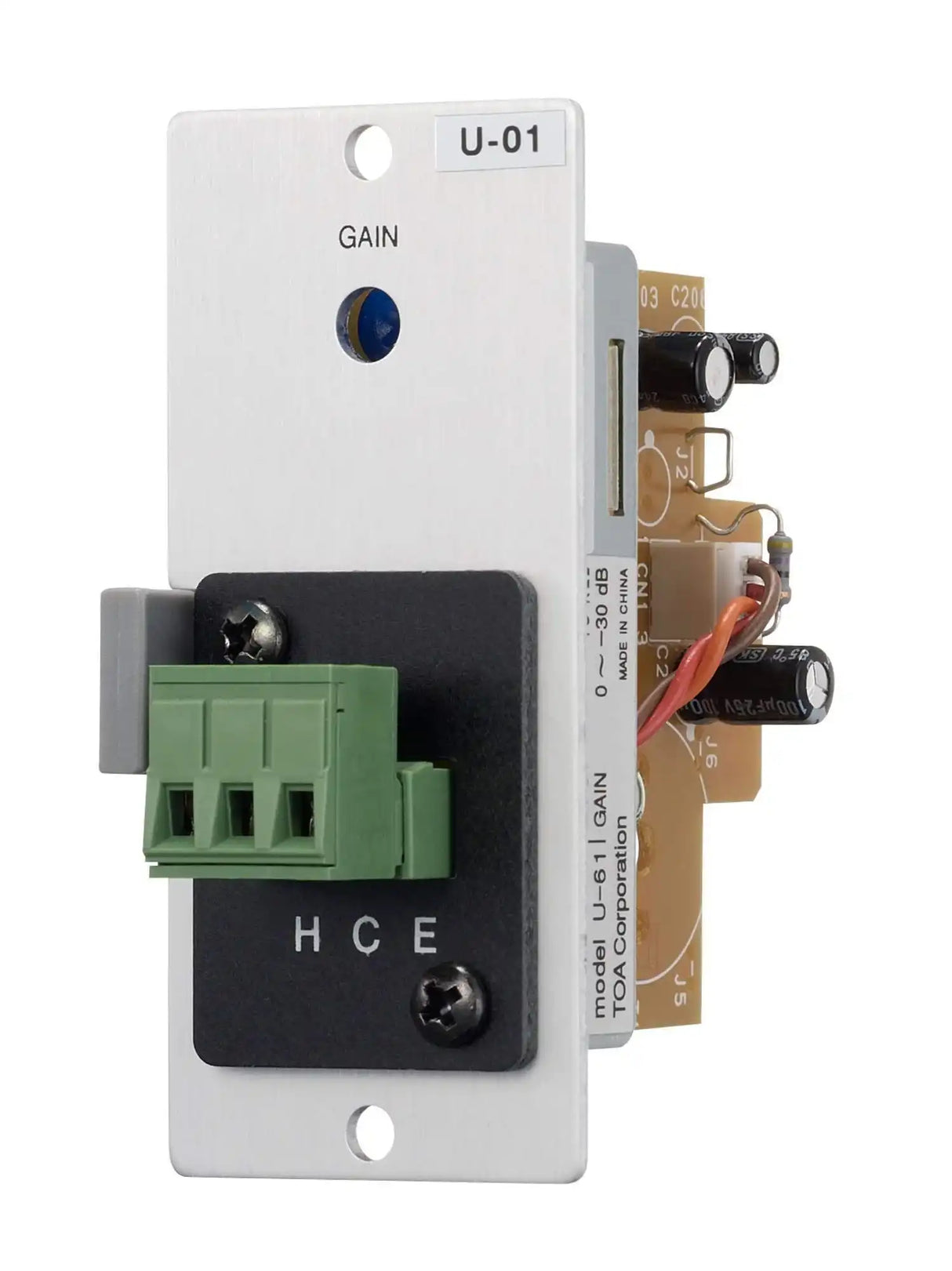

The TOA U-01S is an unbalanced line input module for the 900 Series and other compatible TOA equipment, accepting a line-level source through a removable terminal block connector. This line input module lets AV integrators add a dedicated, gain-adjustable input to a modular mixer-amplifier for background music or paging program sources. The plug-in format makes it straightforward to expand input capacity in a commercial audio system without replacing the host unit. Onboard gain control sets the module's level to match the connected source.
Product Description
Modular TOA amplifiers and mixers use plug-in input modules so a system can be configured for the exact sources on site. The U-01S provides one unbalanced line input on a removable 3-pole terminal block, which is the preferred termination for permanent, screw-down wiring in distributed audio installations.
Its 220 kilohm input impedance suits line-level sources such as media players, mixers, and tuners, and the gain control trims the signal across a -30 to 0 dB range. The module draws 24 V DC from the host main frame, so no separate power supply is required. A wide 20 Hz to 20 kHz frequency response and low distortion keep program audio clean through the signal chain. Because the connector is a removable block, technicians can pre-wire field cabling and plug it in during commissioning. The compact module fits a single 900 Series input slot and weighs only a few grams.
Key Features
- Removable Terminal Block — A 3-pole plug-in connector supports clean, screw-down field wiring for permanent installs.
- Adjustable Gain — Onboard control trims input level across a -30 to 0 dB range to match the source.
- High Input Impedance — A 220 kilohm unbalanced input accepts common line-level program sources.
- Host-Powered — The module runs on 24 V DC supplied by the 900 Series main frame, with no external supply needed.
- Full-Range Response — A 20 Hz to 20 kHz bandwidth with low distortion preserves program quality.
- Modular Format — Plugs into a single 900 Series input slot to expand a mixer-amplifier's input count.
Technical Specifications
| Power Supply | 24 V DC (supplied from the main frame) |
| Current Consumption | 4 mA |
| Input Sensitivity | -20 dB (rated), adjustable -20 to +10 dB |
| Input Impedance | 220 kilohm, unbalanced |
| Frequency Response | 20 Hz – 20 kHz ±1.0 dB |
| Distortion | 0.05 % or less (1 kHz) |
| Noise Level | -106 dB |
| Gain | -30 – 0 dB |
| Connector | Removable terminal block (3P) |
| Dimensions | 35 (W) × 78 (H) × 88 (D) mm |
| Weight | Max. 75 g |
Specifications per the TOA U-01S datasheet.
