TOA U-01R – Unbalanced RCA Line Input Module
Product Overview

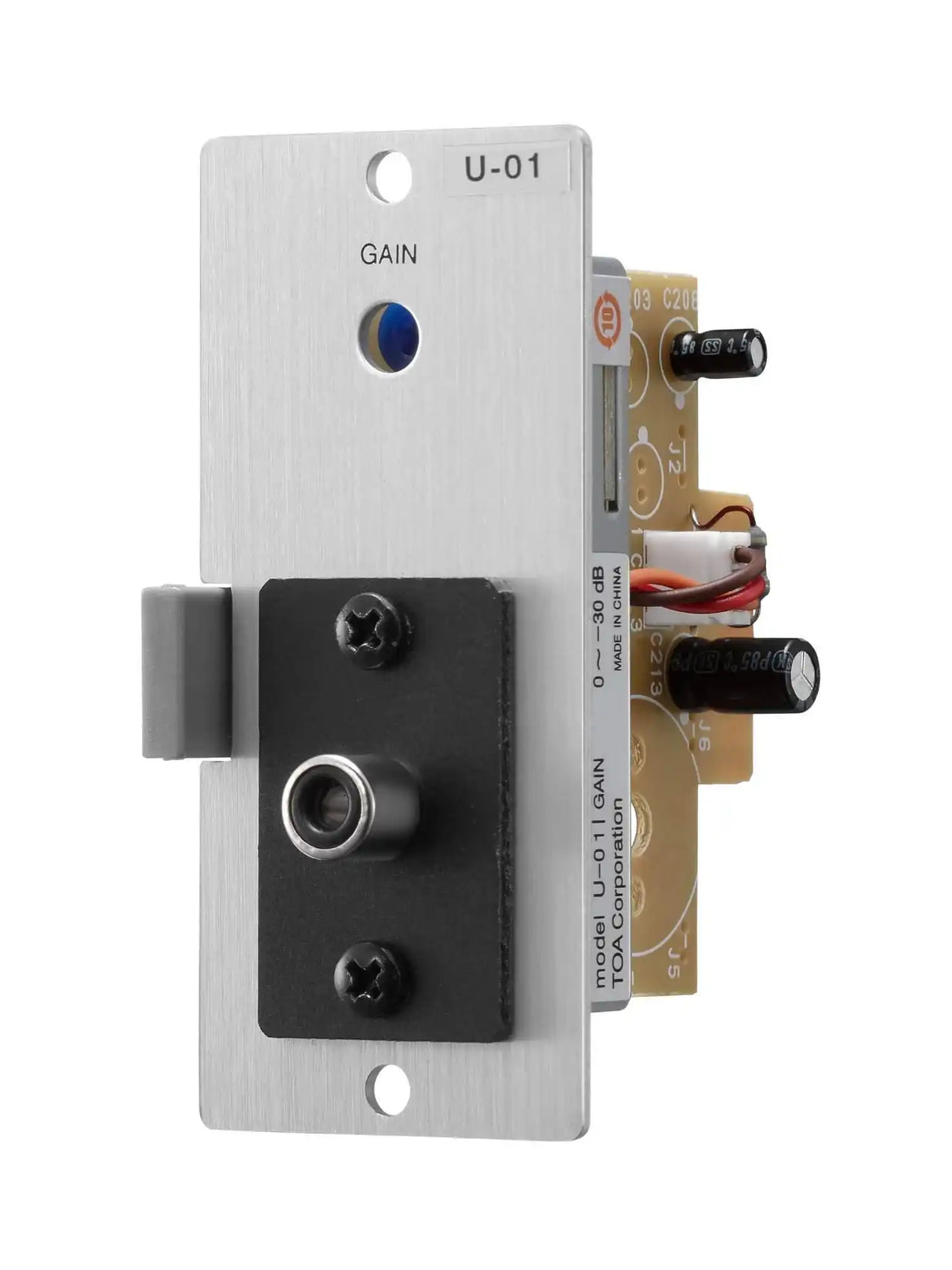

The TOA U-01R is an unbalanced line input module with an RCA pin-jack connector for the 900 Series and other compatible TOA equipment. This RCA line input module lets AV integrators connect consumer-style sources such as media players, tuners, and mixers to a modular mixer-amplifier. The plug-in format adds a gain-adjustable input without replacing the host unit. It is a practical choice for background music and program audio sources that use RCA outputs.
Product Description
Many program sources in commercial audio still terminate in RCA connectors, and the U-01R provides a matching input for TOA's modular platform. It installs in a single 900 Series input slot and presents one unbalanced RCA pin jack for the source cable.
A 220 kilohm input impedance suits line-level sources placed near the host unit, and TOA recommends source runs under about 15 feet for unbalanced connections. The onboard gain control trims level across a -30 to 0 dB range to match the source output. The module draws 24 V DC from the host main frame, so no external supply is needed. A 20 Hz to 20 kHz response with low distortion keeps background music and announcements clean. Its compact size and light weight make it easy to add during commissioning or a later expansion.
Key Features
- RCA Pin Jack — Accepts consumer-style line-level sources on a single unbalanced RCA connector.
- Adjustable Gain — Onboard control trims input level across a -30 to 0 dB range.
- High Input Impedance — A 220 kilohm unbalanced input matches common program sources.
- Host-Powered — Runs on 24 V DC from the 900 Series main frame with no external supply.
- Full-Range Response — A 20 Hz to 20 kHz bandwidth with low distortion preserves audio quality.
- Modular Format — Fits one 900 Series input slot to expand a mixer-amplifier.
Technical Specifications
| Power Supply | 24 V DC (supplied from the main frame) |
| Current Consumption | 4 mA |
| Input Sensitivity | -20 dB (rated), adjustable -20 to +10 dB |
| Input Impedance | 220 kilohm, unbalanced |
| Frequency Response | 20 Hz – 20 kHz ±1.0 dB |
| Distortion | 0.05 % or less (1 kHz) |
| Noise Level | -106 dB |
| Gain | -30 – 0 dB |
| Connector | RCA pin jack (1P) |
| Dimensions | 35 (W) × 78 (H) × 88 (D) mm |
| Weight | Max. 75 g |
Specifications per the TOA U-01R datasheet.
