TOA CS-154U – 15W UL Listed Wide Range Paging Horn Speaker
Product Overview

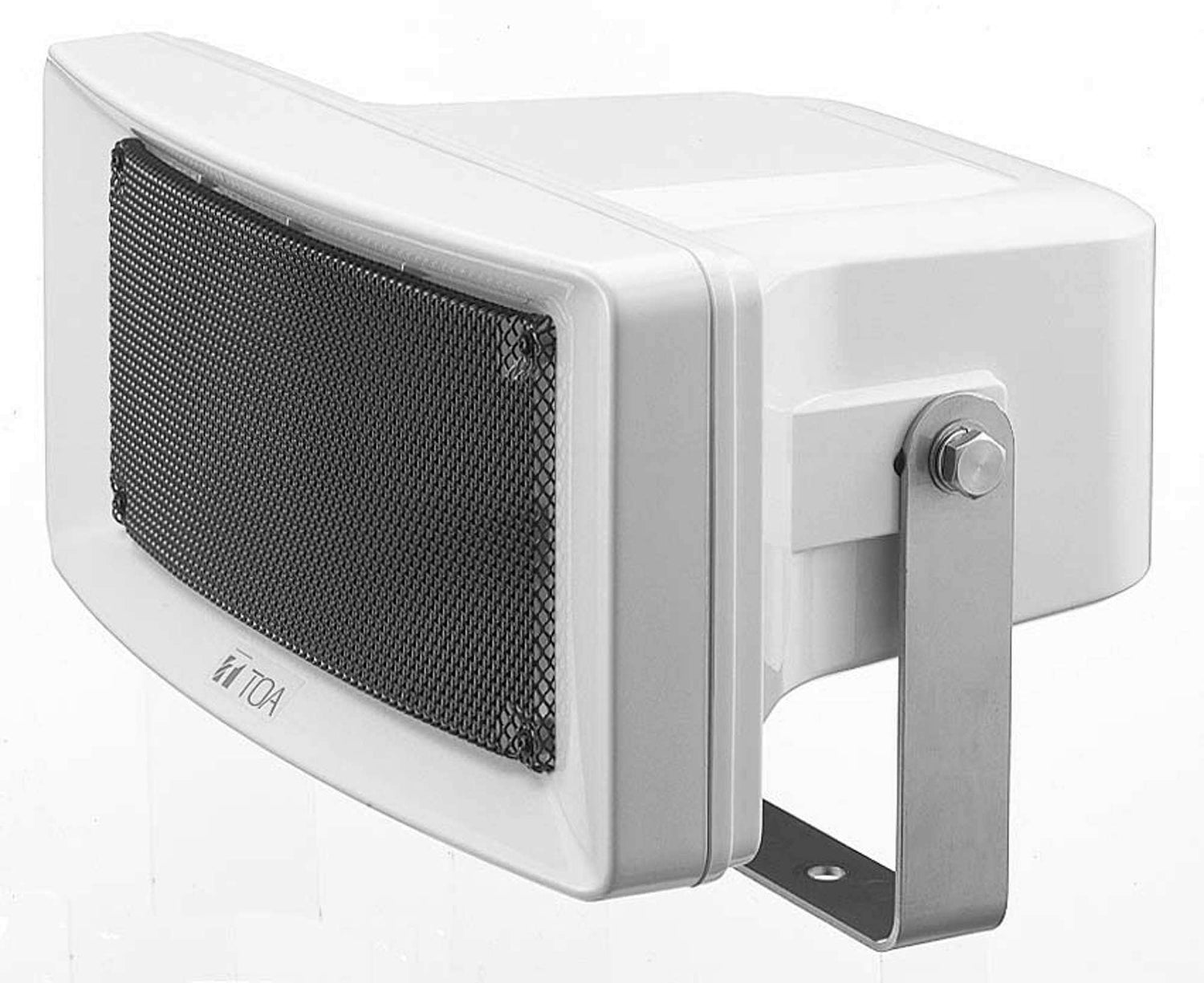

The TOA CS-154U is a 15W UL Listed wide range paging horn speaker engineered for outdoor constant-voltage distributed audio systems. Its constant-directivity horn produces a 90° horizontal dispersion pattern that delivers consistent SPL and tonal balance at the coverage edge, reducing the over-coverage near the speaker that plagues conventional horns. The IP65-rated housing resists dust and high-pressure water jets, allowing installation in uncovered outdoor locations including stadiums, campuses, industrial yards, and transit facilities.
The CS-154U operates on 70V and 100V constant-voltage systems with a rotary multi-tap transformer, and it is UL Listed to applicable safety standards. Fire-resistant ABS resin construction and stainless steel mounting hardware are standard, meeting the demanding installation requirements of commercial and institutional projects.
Product Description
The CS-154U mounts via a swivel bracket that allows pan and tilt adjustment for optimized coverage aiming. Line-voltage taps are selectable by a rotary switch on the back of the transformer housing, providing flexibility to balance system impedance loads across a distributed 70V or 100V circuit. At 93 dB sensitivity (1W/1m, measured at ±45° off-axis at 3 kHz), the CS-154U offers efficient SPL output relative to amplifier power. The fire-resistant ABS resin body meets flammability requirements for public-assembly and institutional installations, and stainless hardware resists corrosion in coastal and high-humidity environments.
Key Features
- Constant-directivity horn (90°) — Maintains consistent SPL and frequency response across the coverage area, reducing hot spots near the speaker.
- IP65 weatherproof — Fully dust-tight and protected against high-pressure water jets for exposed outdoor installations.
- UL Listed — Meets applicable UL safety requirements for commercial and institutional paging installations.
- 70V/100V multi-tap transformer — Rotary tap selector enables easy power setting adjustment at the speaker for balanced distributed lines.
- Fire-resistant ABS resin housing — Meets commercial flammability requirements for public facilities and occupied spaces.
- Stainless steel hardware — Corrosion-resistant fasteners for long-term outdoor service in humid or coastal environments.
- Swivel mounting bracket included — Adjustable aim allows precise horizontal and vertical coverage targeting.
Technical Specifications
Source: TOA Electronics, CS-154U product page (toaelectronics.com).
| Specification | Value |
|---|---|
| Rated Input Power | 15W |
| Sensitivity | 93 dB or more (1W/1m, 3 kHz, ±45°) |
| Coverage Pattern | Constant directivity, 90° (±45° horizontal) |
| Constant Voltage Taps | 70.7V: 330 Ω (15W); 100V: 670 Ω (15W) |
| Weatherproof Rating | IP65 |
| Housing Material | Fire-resistant ABS resin |
| Hardware | Stainless steel |
| Certifications | UL Listed |
