Product Overview

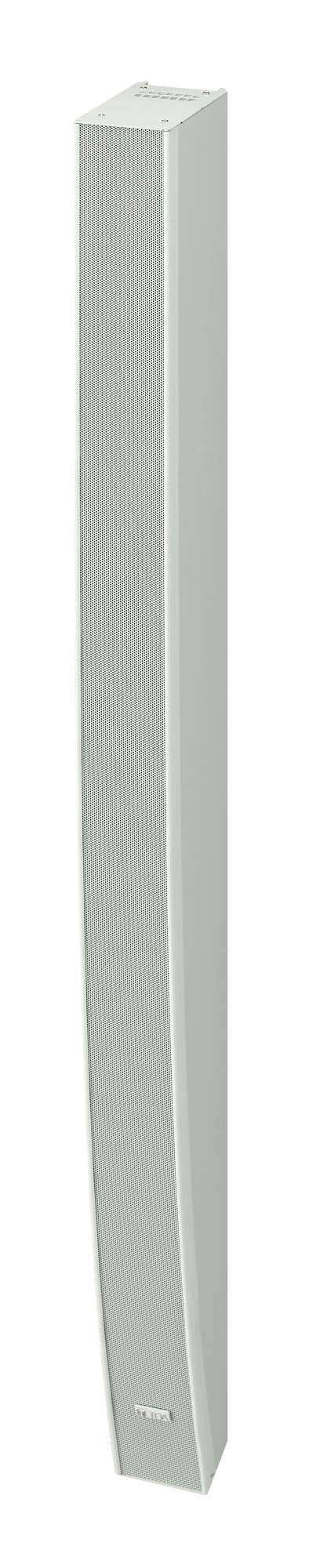

The TOA SR-H3S is a curved slim line array speaker that forms a linear sound source from sixteen vertically arrayed drivers for clear, even coverage over distance. Its narrow 84 mm width blends into the interior of boardrooms, houses of worship, and auditoriums while delivering controlled directivity. The curved model improves vertical dispersion for audiences seated across a wide depth. With the optional MT-S0301 matching transformer it can be used on 70V/100V high-impedance lines for commercial distributed systems.
Product Description
The SR-H3S uses TOA Sync-Drive technology to create an ideal linear sound source, reducing reflections and improving feedback resistance for speech and music. The array delivers clear sound with reduced attenuation over distance, making it effective in reverberant rooms where intelligibility is a priority. Sixteen 7 cm cone drivers provide a 90° horizontal by 20° vertical directivity pattern, focusing energy on the audience rather than ceilings and walls. The bass-reflex MDF enclosure is finished in white urethane paint with a white punched-steel grille, and a removable input connector simplifies wiring. Recommended performance is achieved when paired with the optional DP-SP3 digital speaker processor for tuning. For high-impedance installations, add the MT-S0301 matching transformer. Browse more TOA line array speakers at Creation Networks.
Key Features
- Slim line array design — Narrow 84 mm enclosure blends into venue interiors while delivering controlled directivity.
- Sync-Drive technology — Forms an ideal linear sound source for clear, even coverage.
- Reduced distance attenuation — Maintains intelligibility for listeners far from the speaker.
- Curved vertical dispersion — The 20° vertical pattern improves coverage across a wide seating depth.
- Feedback resistant — Reflection-controlled output supports higher gain before feedback.
- High-impedance ready — Works on 70V/100V lines with the optional MT-S0301 transformer.
- Removable input connector — Speeds wiring during installation.
Typical Applications
- House of worship
- Auditorium
- Boardroom
- Multi-purpose room
- Government space
Technical Specifications
| Enclosure | Bass-reflex type |
|---|---|
| Power Handling | Continuous program: 360 W |
| Rated Impedance | 8 Ω |
| Sensitivity | 92 dB (1 W, 1 m equivalent, measured at 8 m) |
| Frequency Response | 90 Hz – 17 kHz (with recommended DP-SP3 parameters) |
| Directivity Angle | Horizontal 90°, Vertical 20° |
| Speaker Component | 7 cm (2.8 in) cone-type × 16 |
| Input Terminal | Removable input connector |
| Finish | Enclosure: MDF, white urethane paint; grille: punched steel, white acrylic paint |
| Dimensions | 84 (W) × 1177.2 (H) × 157 (D) mm (3.31 × 46.35 × 6.18 in) |
| Weight | 7.9 kg (17.42 lb) |
| Optional Accessories | Matching transformer MT-S0301 |
Frequently Asked Questions
What makes a line array suitable for reverberant rooms? The SR-H3S focuses sound with a narrow 20° vertical pattern, reducing reflections off ceilings and floors to improve intelligibility.
Can it run on a 70V/100V system? Yes, with the optional MT-S0301 matching transformer for high-impedance distributed audio.
Do I need a processor? Recommended frequency response and tuning are achieved with the optional DP-SP3 digital speaker processor.
What coverage does it provide? It offers a 90° horizontal by 20° vertical directivity pattern from sixteen 7 cm drivers.
How is it mounted and wired? The slim enclosure mounts vertically with TOA SR-series brackets and uses a removable input connector for fast wiring.
What warranty and support apply? The speaker carries the TOA manufacturer warranty; contact Creation Networks for warranty, stock, and system-design support.
