TOA F-03WT – 3.5" Surface-Mount Speaker System, 70/100V
Product Overview
The TOA F-03WT is a compact 3.5" surface-mount speaker system designed for commercial 70V and 100V constant-voltage distributed audio installations. Its low-profile enclosure allows installation in spaces where a recessed ceiling speaker is impractical—concrete ceilings, exposed structural decks, corridors, stairwells, restrooms, and back-of-house areas. The white (WT) finish blends cleanly into standard commercial interior environments.
The F-03WT accepts 70V and 100V line-level inputs with a multi-tap transformer, and its 3.5" full-range driver handles both speech paging and background music applications at a rated input of 15W. Single-hand installation hardware keeps labor time low in multi-zone projects with many speaker locations.
Product Description
The F-03WT enclosure measures 130 × 221 × 132 mm (5.12" × 8.7" × 5.2") and weighs 1.7 kg, making it manageable for single-technician installation. The 3.5" full-range driver is rated at 15W input power with a noise power handling of 30W (8 Ω) and program power of 60W (8 Ω). The unit operates across an ambient temperature range of −10°C to +50°C (−14°F to +122°F). The speaker mounts to wall or ceiling surfaces and is compatible with standard commercial back-box accessories where additional depth is required.
Key Features
- Surface-mount design — Installs on walls or ceilings without cutting, ideal for concrete decks, corridors, and spaces where recessed mounting is not feasible.
- 70V/100V multi-tap transformer — Selectable power taps for flexible distributed audio system design.
- 3.5" full-range driver — Handles both speech paging and background music for mixed-use commercial zones.

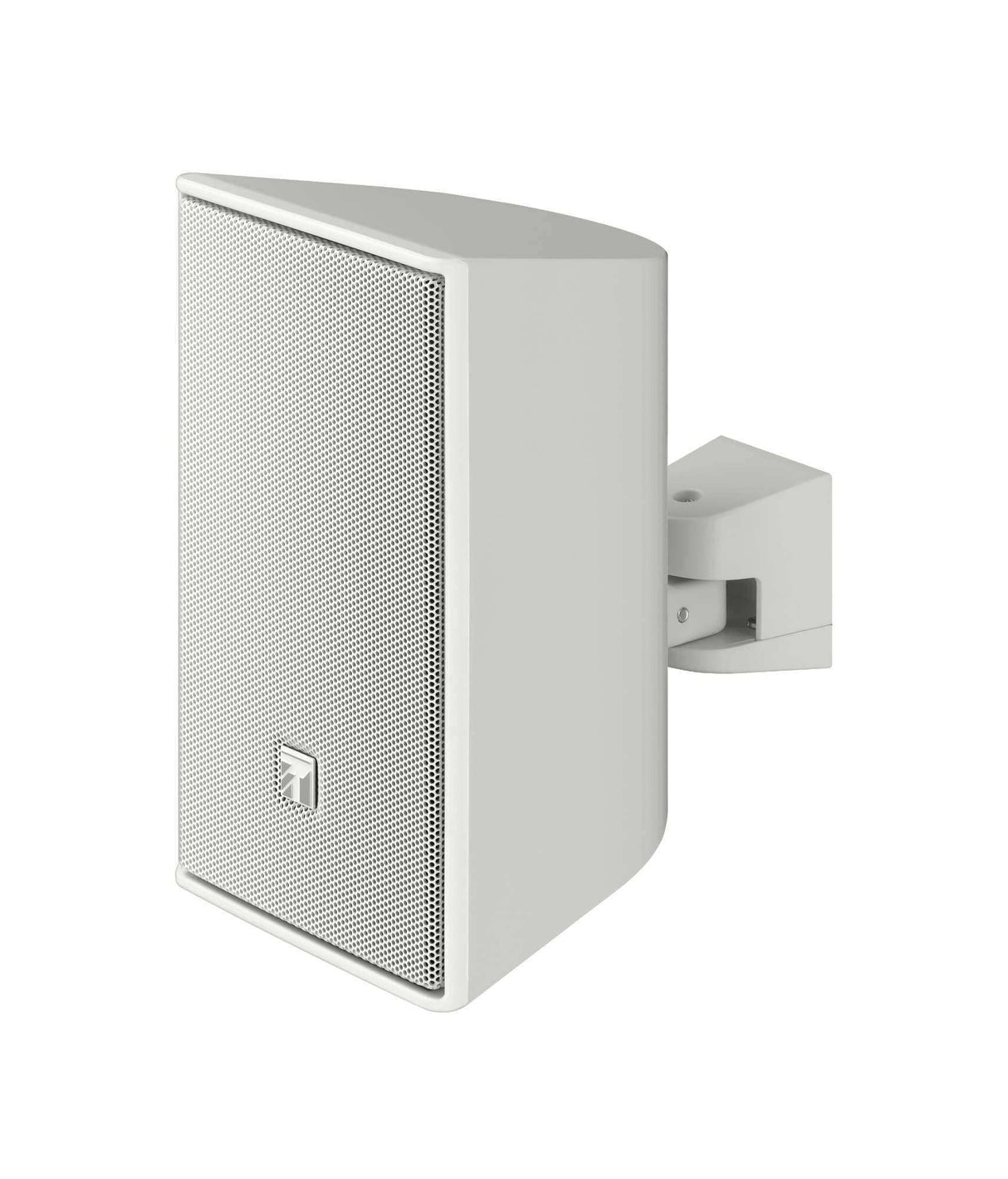

- White (WT) finish — Blends with standard commercial interior surfaces; the black F-03BT variant is also available for darker environments.
- Compact enclosure (130 × 221 × 132 mm) — Fits in tight overhead spaces where larger surface-mount speakers will not.
- Single-hand install hardware — Reduces per-unit installation labor on high-count distributed audio projects.
- Extended temperature range (−10°C to +50°C) — Suitable for non-climate-controlled areas including loading docks and covered outdoor spaces.
Technical Specifications
Source: TOA Electronics, F-03WT product page (toaelectronics.com).
| Specification | Value |
|---|---|
| Driver Size | 3.5" (89 mm) full-range |
| Rated Input Power | 15W |
| Noise Power (8 Ω) | 30W |
| Program Power (8 Ω) | 60W |
| Input Voltage | 70V / 100V (multi-tap) |
| Dimensions (W×H×D) | 130 × 221 × 132 mm (5.12" × 8.7" × 5.2") |
| Weight | 1.7 kg |
| Operating Temperature | −10°C to +50°C (−14°F to +122°F) |
| Finish | White |
