TOA Q-PJ-304BK – 5" 30W Projection Speaker, Black
Product Overview

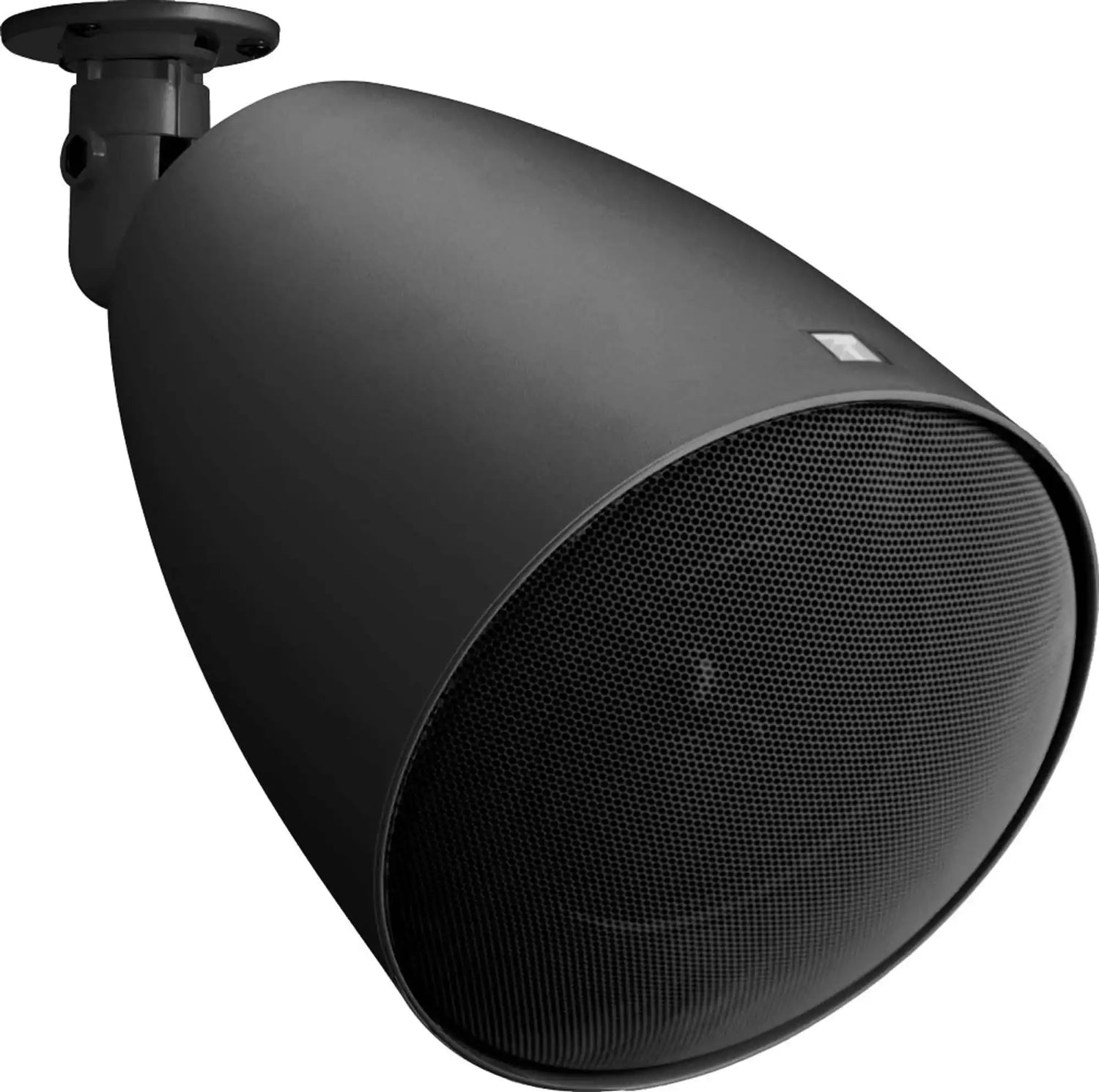

The TOA Q-PJ-304BK is a 5-inch (12 cm) projection speaker in black HIPS resin, designed for ceiling and wall installations where architectural appearance matters. Its paintable enclosure, multi-tap transformer, and included swivel bracket make it adaptable to a wide range of commercial AV and background music applications.
Product Description
Inspired by architectural lighting fixtures, the Q-PJ-304BK houses a 12 cm cone-type woofer and a balanced dome tweeter in a bass-reflex enclosure, achieving 91 dB SPL (1 W / 1 m) across a 70 Hz to 20 kHz frequency range. The multi-tap transformer supports taps at 100 V and 70 V lines plus direct 8 Ω operation — switchable via a rotary selector on the upper side without tools. The enclosure is paintable to match interior décor. The swivel bracket adjusts the speaker angle for precise coverage. At 2.1 kg and ø186 × 251 mm (unit only), the Q-PJ-304BK installs readily on standard wall or ceiling mounts.
Key Features
- 5-inch (12 cm) 2-way bass-reflex: cone woofer + balanced dome tweeter
- 30 W rated input; 91 dB sensitivity (1 W / 1 m)
- 70 Hz–20,000 Hz frequency response
- 100 V / 70 V / 8 Ω transformer; selectable power taps (5/10/15/20/30 W)
- Rotary impedance selector — no tools required
- Paintable HIPS resin enclosure; swivel bracket included
- ø186 × 251 mm (unit), 2.1 kg
Technical Specifications
| Enclosure | Bass-reflex, HIPS resin, black |
|---|---|
| Rated Input | 30 W |
| Sensitivity | 91 dB (1 W / 1 m, 500–5,000 Hz pink noise) |
| Frequency Response | 70–20,000 Hz (peak −20 dB) |
| Speaker Components | 12 cm cone woofer + balanced dome tweeter |
| Impedance | 100 V: 330 Ω (30W), 500 Ω (20W), 670 Ω (15W), 1 kΩ (10W), 2 kΩ (5W); 70 V: 170 Ω (30W), 250 Ω (20W), 330 Ω (15W), 500 Ω (10W), 1 kΩ (5W); 8 Ω direct |
| Dimensions | ø186 × 251 mm (H) (unit only) |
| Weight | 2.1 kg (unit only) |
| Included Accessories | Swivel bracket × 1 |
